1445053 Series

Catalog

CONN HEADER SMD 8POS 3MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height [z]	Insulation Height [z]	Mounting Type	Contact Material	Number of Positions	Termination	Insulation Color	Contact Shape	Style	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Type	Contact Finish - Post	Features	Contact Type	Number of Rows	Material Flammability Rating	Insulation Material	Fastening Type	Voltage Rating	Number of Positions Loaded	Contact Finish - Mating	Pitch - Mating	Pitch - Mating
TE Connectivity AMP Connectors 1445053-8	General Purpose	2.54 µm	100 µin	100 çin	2.54 çm	9.25 mm	0.364 in	Surface Mount	Brass	8	Solder	Black	Square	Board to Cable/Wire	Shrouded - 4 Wall	-40 C	105 ░C	Varies by Wire Gauge	Header	Tin-Lead	Pick and Place Solder Retention	Male Pin	1	UL94 V-0	Nylon Polyamide (PA)	Locking Ramp	250 V	All	Tin-Lead	3 mm	0.118 in

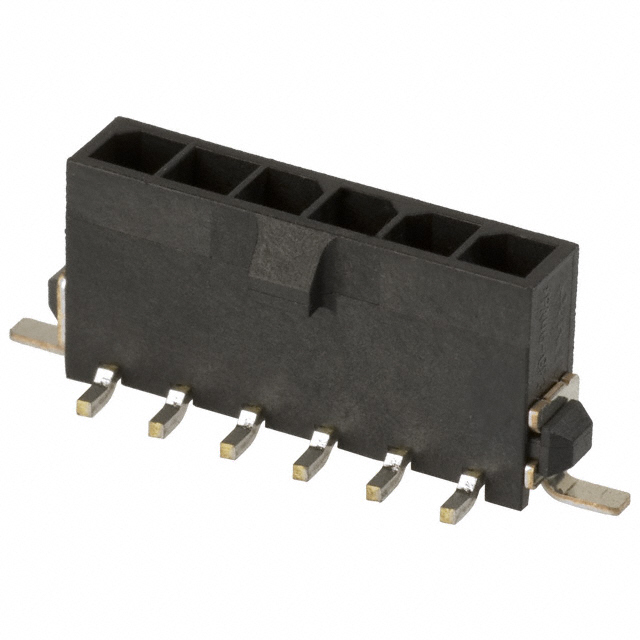

TE Connectivity AMP Connectors 1445053-6	General Purpose	2.54 µm	100 µin	100 çin	2.54 çm	9.25 mm	0.364 in	Surface Mount	Brass	6	Solder	Black	Square	Board to Cable/Wire	Shrouded - 4 Wall	-40 C	105 ░C	Varies by Wire Gauge	Header	Tin-Lead	Pick and Place Solder Retention	Male Pin	1	UL94 V-0	Nylon Polyamide (PA)	Locking Ramp	250 V	All	Tin-Lead	3 mm	0.118 in
