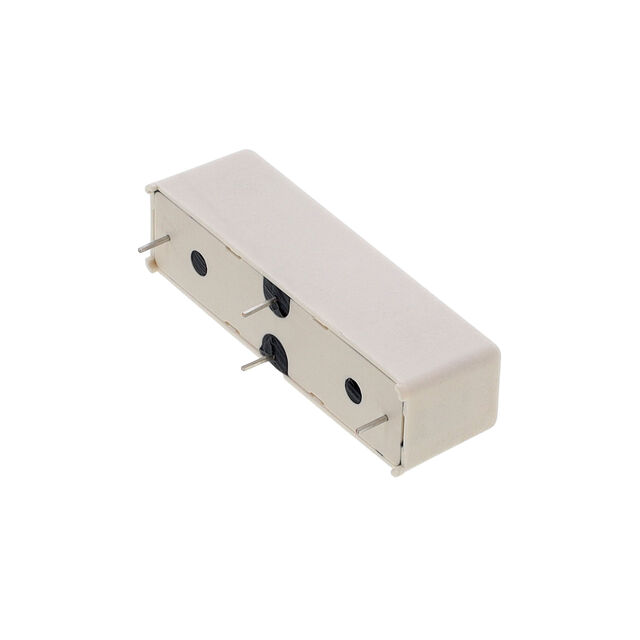

DAT71205 Series
Manufacturer: Sensata Technologies
Beta
⌘K
RELAY REED SPST-NO 5KV 12V
| Part | Must Operate Voltage | Contact Material | Switching Voltage | Coil Voltage | Termination Style | Contact Form | Coil Type | Operate Time | Coil Resistance | Coil Current | Must Release Voltage | Mounting Type | Release Time | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata Technologies | 9 VDC | Tungsten (W) | 3500 VAC 3500 VDC | 12 VDC | PC Pin | SPST-NO (1 Form A) | Non Latching | 3 ms | 150 Ohms | 80 mA | 1.25 VDC | Through Hole | 2 ms | 2 A | -20 C | 70 °C |
 Sensata Technologies | 9 VDC | Tungsten (W) | 3500 VAC 3500 VDC | 12 VDC | PC Pin Wire Leads | SPST-NO (1 Form A) | Non Latching | 3 ms | 150 Ohms | 80 mA | 1.25 VDC | Through Hole | 2 ms | 2 A | -20 C | 70 °C |
