NGCPB Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION DPST 6A 120V

Part	Termination Style	Overtravel	Overtravel	Ingress Protection	Current Rating (Amps)	Operating Force	Features	Voltage Rating - AC	Actuator Type	Electrical Life	Mounting Type	Differential Travel	Differential Travel	Switch Function	Voltage Rating - DC	Pretravel	Pretravel	Operating Position	Operating Position	Release Force	Mechanical Life	Circuit	Operating Temperature [Min]	Operating Temperature [Max]

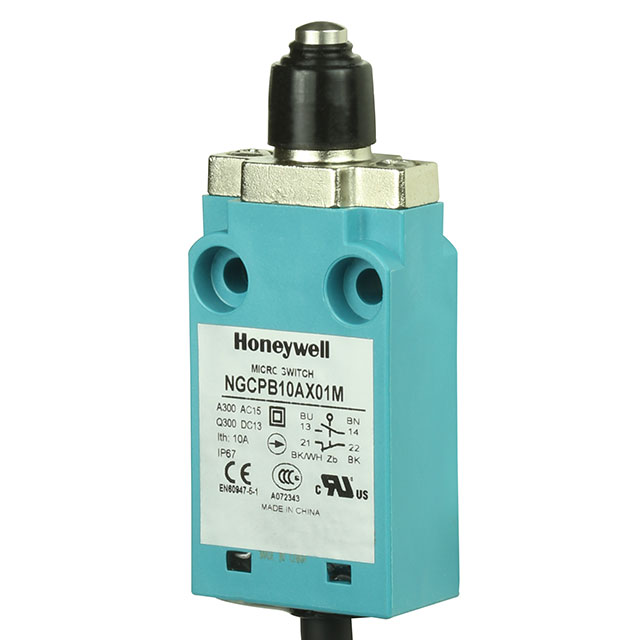

Honeywell Sensing and Productivity Solutions NGCPB10AX01M	Cable Leads	0.193 in	4.9 mm	IP67 - Dust Tight Waterproof	6 A 550 mA	1122 gf	Actuator Seal Boot	120 V	Round (Pin Plunger)	500000 Cycles	Chassis Mount	0.047 in	1.2 mm	Off-Mom On-Mom	125 VDC	2.1 mm	0.083 in	0.083 in	2.1 mm	306 gf	5000000 Cycles	DPST-NO/NC	-25 °C	75 ░C

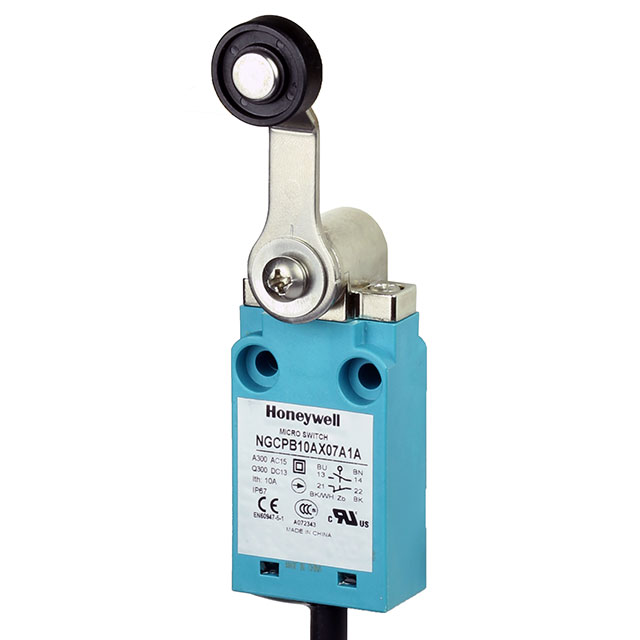

Honeywell Sensing and Productivity Solutions NGCPB10AX07A1A	Cable Leads	65 °		IP67 - Dust Tight Waterproof	10 mA	18 gfm	Nylon Roller		Roller Side Rotary	500000 Cycles	Chassis Mount	15 °		Off-Mom On-Mom	30 mV		25 °	25 °		2.534 gfm	5000000 Cycles	DPST-NO/NC	-25 °C	75 ░C

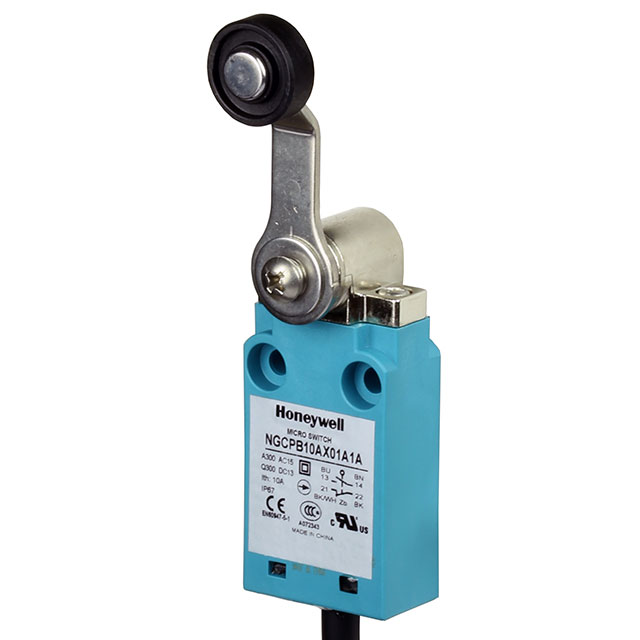

Honeywell Sensing and Productivity Solutions NGCPB10AX01A1A	Cable Leads	65 °		IP67 - Dust Tight Waterproof	6 A 550 mA	18 gfm	Nylon Roller	120 V	Roller Side Rotary	500000 Cycles	Chassis Mount	15 °		Off-Mom On-Mom	125 VDC		25 °	25 °		2.534 gfm	5000000 Cycles	DPST-NO/NC	-25 °C	75 ░C

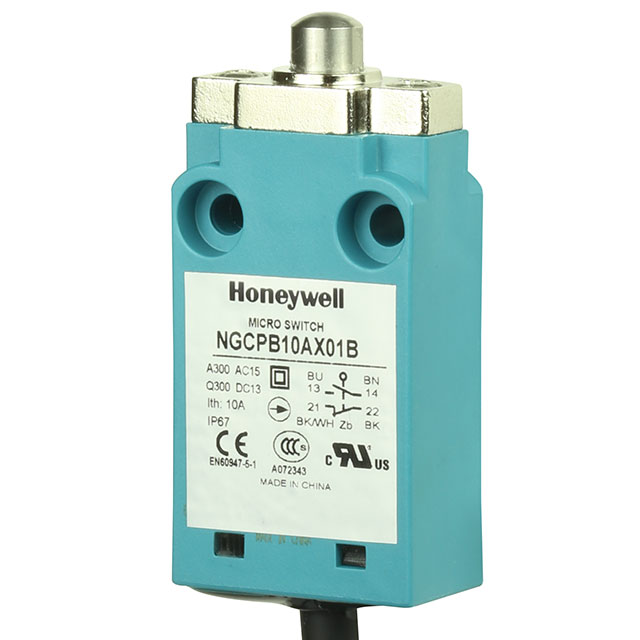

Honeywell Sensing and Productivity Solutions NGCPB10AX01B	Cable Leads	0.193 in	4.9 mm	IP67 - Dust Tight Waterproof	6 A 550 mA	1122 gf		120 V	Round (Pin Plunger)	500000 Cycles	Chassis Mount	0.047 in	1.2 mm	Off-Mom On-Mom	125 VDC	2.1 mm	0.083 in	0.083 in	2.1 mm	306 gf	5000000 Cycles	DPST-NO/NC	-25 °C	75 ░C

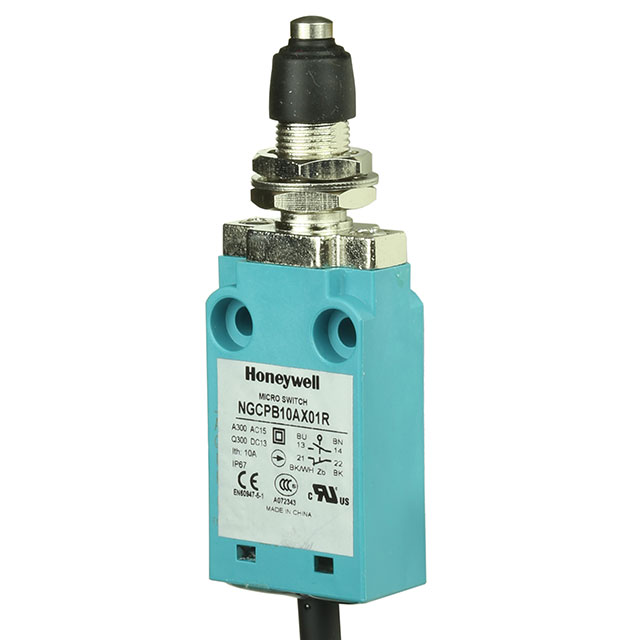

Honeywell Sensing and Productivity Solutions NGCPB10AX01R	Cable Leads	0.193 in	4.9 mm	IP67 - Dust Tight Waterproof	6 A 550 mA	1122 gf	Actuator Seal Boot	120 V	Round (Pin Plunger)	500000 Cycles		0.047 in	1.2 mm	Off-Mom On-Mom	125 VDC	2.1 mm	0.083 in	0.083 in	2.1 mm	306 gf	5000000 Cycles	DPST-NO/NC	-25 °C	75 ░C
Honeywell Sensing and Productivity Solutions NGCPB50AX32B	Cable Leads	0.193 in	4.9 mm	IP67 - Dust Tight Waterproof	10 mA				Round (Pin Plunger)	50000 Cycles	Chassis Mount	0.05 in	1.3 mm	Off-Mom On-Mom	30 mV	2.1 mm	0.083 in			224 gf	5000000 Cycles	4PST-2NO/2NC	-25 °C	75 ░C

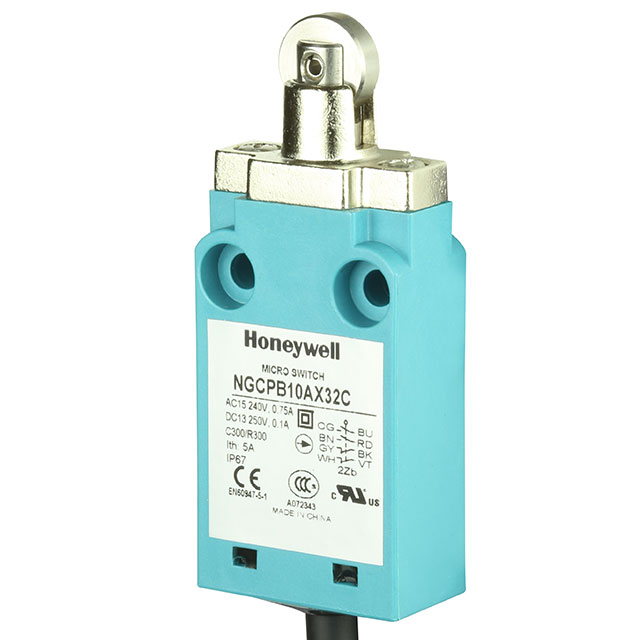

Honeywell Sensing and Productivity Solutions NGCPB10AX32C	Cable Leads	0.193 in	4.9 mm	IP67 - Dust Tight Waterproof	10 mA				Roller Plunger	500000 Cycles	Chassis Mount	0.05 in	1.3 mm	Off-Mom On-Mom	30 mV	2.1 mm	0.083 in	0.083 in	2.1 mm	224 gf	5000000 Cycles	4PST-2NO/2NC	-25 °C	75 ░C
