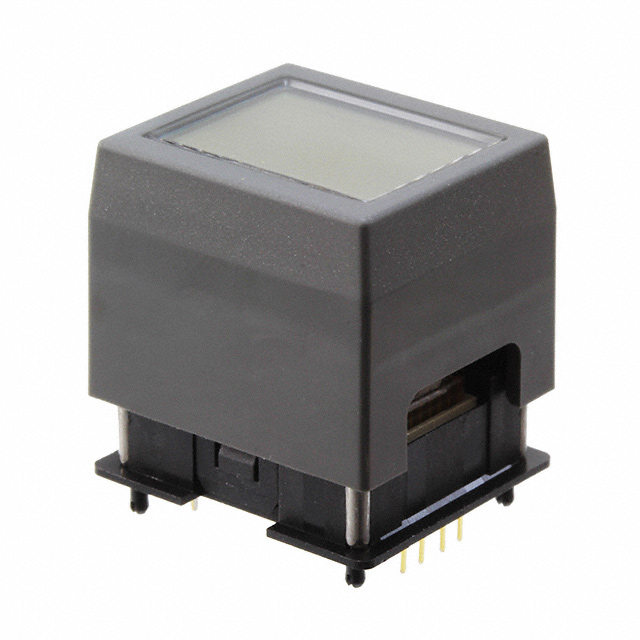

IS Series

Catalog

DISPLAY SWITCHES SWITCH ACCESSORY

Part	Dot Size [custom]	Dot Size [custom]	Dot Pitch [y]	Dot Pitch [x]	Viewing Area [y]	Viewing Area [x]	Display Type	Display Mode	Interface	Graphics Color	Backlight	Background Color	Diagonal Screen Size [custom]	Diagonal Screen Size [custom]	Dot Pixels [y]	Dot Pixels [x]	Switch Function	Pixel Format [y]	Pixel Format [x]	Supply Voltage [Max]	Supply Voltage [Min]	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Mounting Type	Circuit	Contact Rating @ Voltage	Termination Style	Face Size [x]	Face Size [y]	Type	Operating Force	Travel Range	LED Forward Voltage	Style
NKK Switches IS18IA001
NKK Switches IS01BBFRGB	0.2 mm	0.29 mm	0.31 mm	0.22 mm	11.8 mm	14.4 mm	FSTN - Film Super-Twisted Nematic	Transflective	SPI	Black	LED - Red/Green/Blue	Blue Green Red	0.7 in	17.78 mm	24	36
NKK Switches IS15EBFP4RGB-09YN					13 mm	17 mm		Black and White FSTN Positive									Off-Mom	32	64	5.1 VDC	4.9 VDC	50 °C	-15 °C	Blue Green Red	Through Hole	SPST-NO	0.1 A 12 VDC	PC Pin	23.13 mm	20.59 mm	LCD Pushbutton
NKK Switches IS15EBFP4RGB					13 mm	17 mm		Black and White FSTN Positive									Off-Mom	32	64	5.1 VDC	4.9 VDC	50 °C	-15 °C	Blue Green Red	Through Hole	SPST-NO	0.1 A 12 VDC	PC Pin	23.13 mm	20.59 mm	LCD Pushbutton	204 gf	4.5 mm	2 2.8 VDC 2.8	High Resolution Standard
