UCC28250 Series

Catalog

EVAL MODULE FOR UCC28250-501

Part	Supplied Contents	Outputs and Type	Outputs and Type	Power - Output	Board Type	Utilized IC / Part	Voltage - Output	Contents	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Main Purpose	Regulator Topology	Function	Output Phases	Mounting Type	Topology	Output Type	Supplier Device Package	Output Configuration	Frequency - Switching [Max]	Frequency - Switching [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Control Features

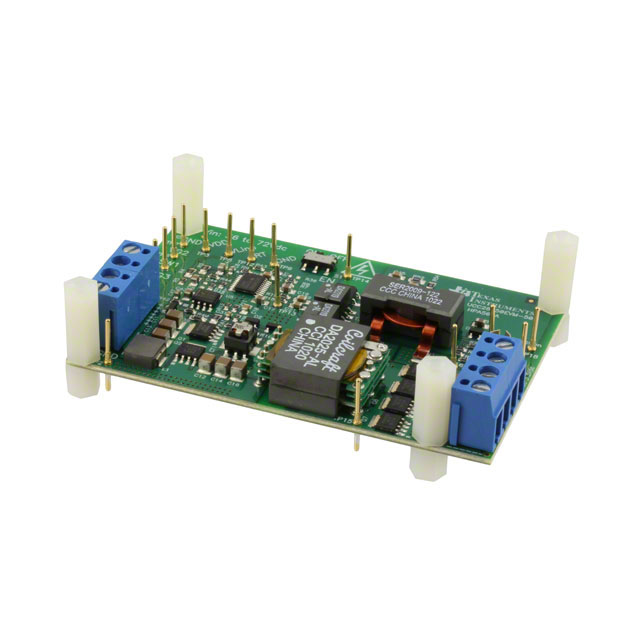

Texas Instruments UCC28250EVM-501	Board(s)	1 Isolated Output Isolated	1	75 W	Fully Populated	UCC28250	3.3 V	Board(s)	1 MHz	36 V	72 V	23 A	DC/DC Step Down	Buck
Texas Instruments UCC28250PW															Step-Up/Step-Down	1	Surface Mount	Full-Bridge Half-Bridge Push-Pull	PWM Signal	20-TSSOP	Positive	1.15 MHz	85 kHz	20-TSSOP	4.4 mm	0.173 "	2	-40 C	125 °C	17 V	4.7 V	Current Limit Enable Frequency Control Ramp Soft Start

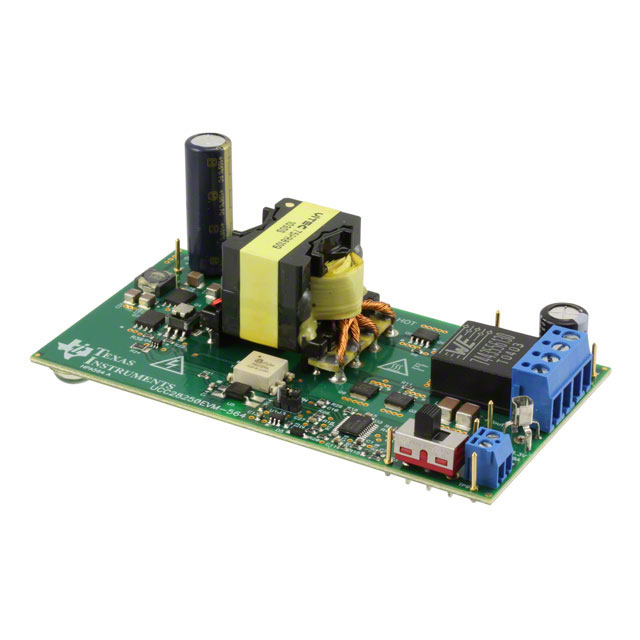

Texas Instruments UCC28250EVM-564	Board(s)	1 Isolated Output Isolated	1	100 W	Fully Populated	UCC28250	3.3 V	Board(s)	200 kHz	36 V	75 V	30 A	DC/DC Step Down	Buck
Texas Instruments UCC28250RGPR															Step-Up/Step-Down	1	Surface Mount	Full-Bridge Half-Bridge Push-Pull	PWM Signal	20-QFN (4x4)	Positive	1.15 MHz	85 kHz	20-VFQFN Exposed Pad			2	-40 C	125 °C	17 V	4.7 V	Current Limit Enable Frequency Control Ramp Soft Start
Texas Instruments UCC28250PWR															Step-Up/Step-Down	1	Surface Mount	Full-Bridge Half-Bridge Push-Pull	PWM Signal	20-TSSOP	Positive	1.15 MHz	85 kHz	20-TSSOP	4.4 mm	0.173 "	2	-40 C	125 °C	17 V	4.7 V	Current Limit Enable Frequency Control Ramp Soft Start
Texas Instruments UCC28250RGPT															Step-Up/Step-Down	1	Surface Mount	Full-Bridge Half-Bridge Push-Pull	PWM Signal	20-QFN (4x4)	Positive	1.15 MHz	85 kHz	20-VFQFN Exposed Pad			2	-40 C	125 °C	17 V	4.7 V	Current Limit Enable Frequency Control Ramp Soft Start
