629-24W Series
Manufacturer: EDAC Inc.
Beta
⌘K

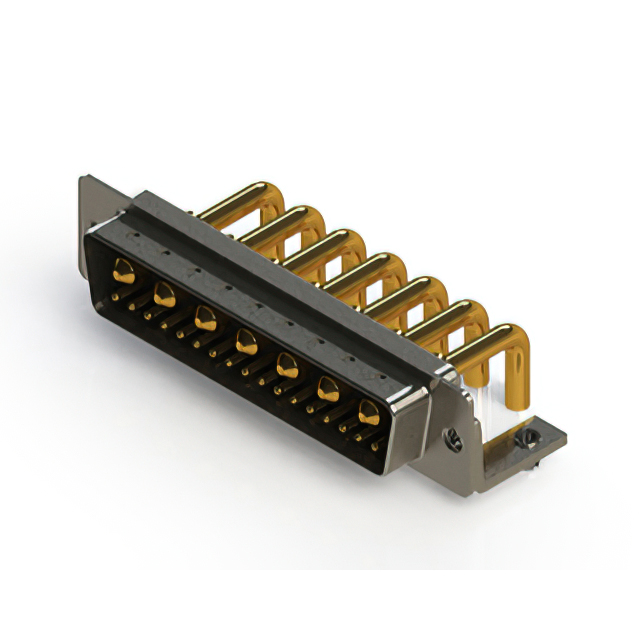

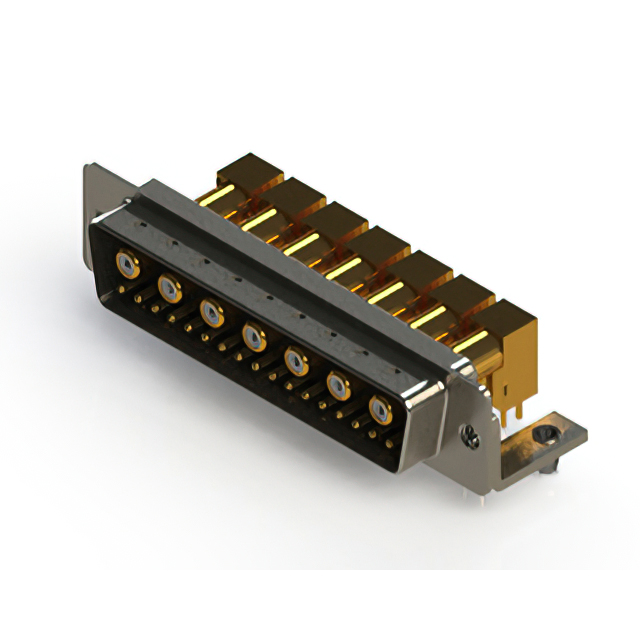

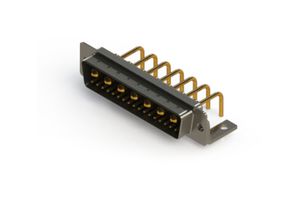

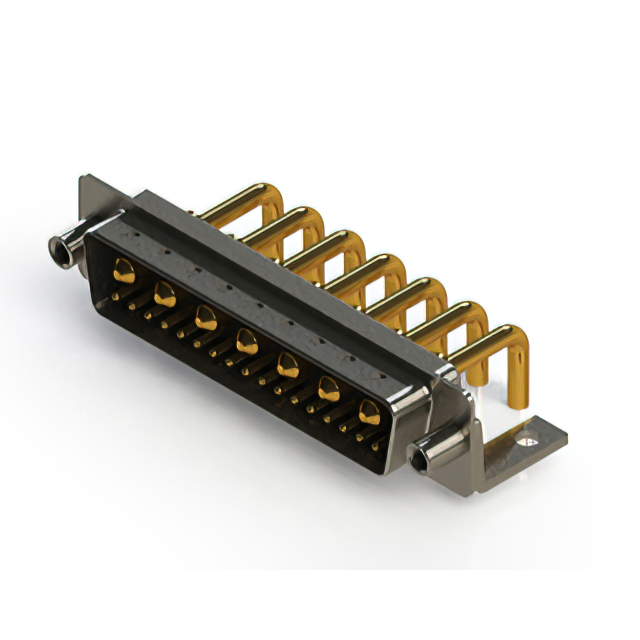

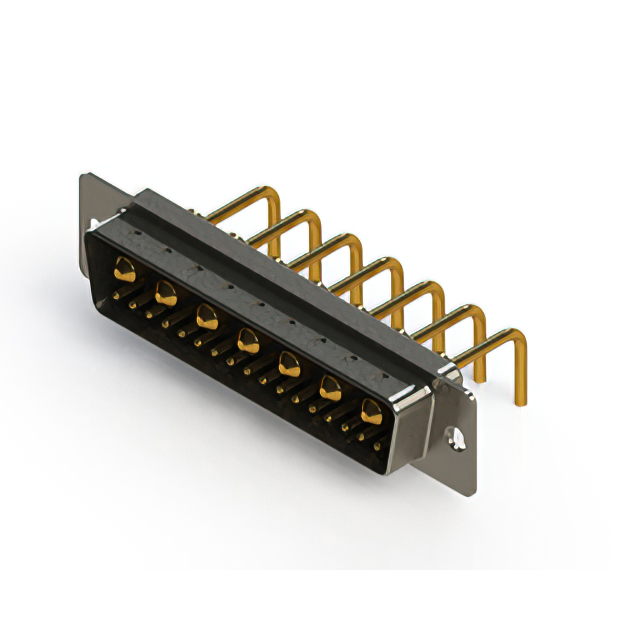

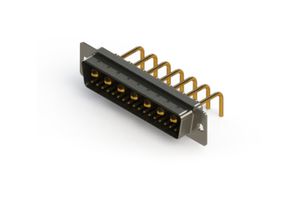

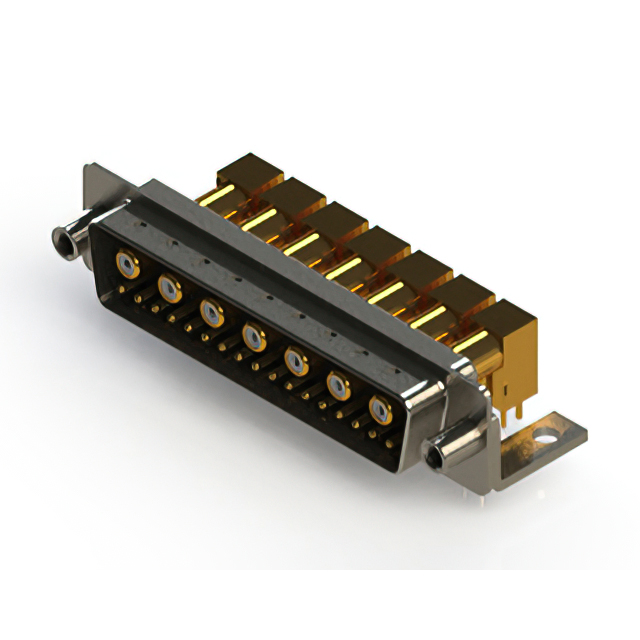

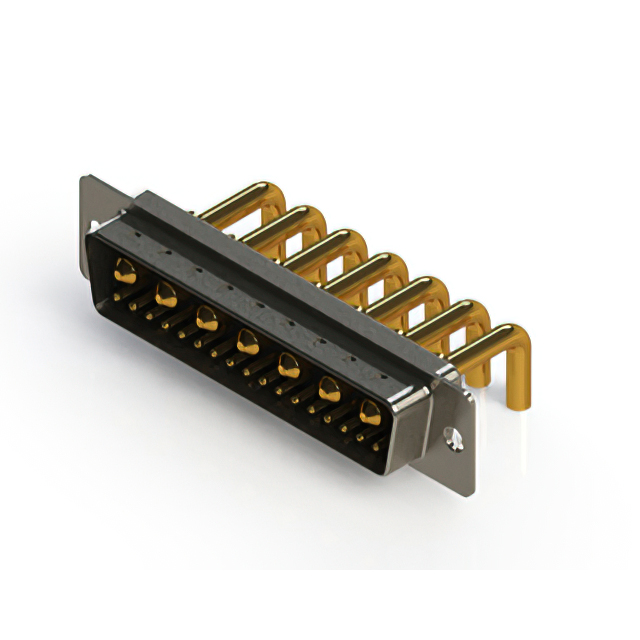

CONN D-SUB PLUG 24POS R/A SLDR
| Part | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Voltage Rating | Features | Contact Type | Termination | Connector Type | Backset Spacing | Backset Spacing | Connector Style | Mounting Type | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Number of Rows [custom] | Flange Feature | Material Flammability Rating | Contact Finish | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Material, Finish | Number of Positions [custom] | Number of Positions [custom] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Board Lock Grounding Indents Mounting Brackets | Signal and Power | Solder | Plug Male Pins | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 7 | 17 | 5 A 30 A | 2 | Housing/Shell (M3) | UL94 V-0 | Gold | Flash | 5 | D DD | 24W7 | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Grounding Indents Shielded | Signal and Power | Solder | Plug Male Pins | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 7 | 17 | 5 A 30 A | 2 | Housing/Shell (Unthreaded) | UL94 V-0 | Gold | Flash | 5 | D DD | 24W7 | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Grounding Indents Mounting Brackets | Signal and Power | Solder | Plug Male Pins | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 7 | 17 | 5 A 30 A | 2 | M3 | UL94 V-0 | Gold | Flash | 5 | D DD | 24W7 | Nickel Plated Steel | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Board Lock Grounding Indents Mounting Brackets | Coax Signal | Solder | Plug Male Pins | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 2 | Housing/Shell (M3) | UL94 V-0 | Gold | Flash | 5 | D DD | 24W7 | Nickel Plated Steel | 7 | 17 | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Board Lock Grounding Indents | Coax Signal | Solder | Plug Male Pins | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 2 | 4-40 | UL94 V-0 | Gold | Flash | 5 | D DD | 24W7 | Nickel Plated Steel | 7 | 17 | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Grounding Indents Mounting Brackets | Coax Signal | Solder | Plug Male Pins | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 2 | Housing/Shell (M3) | UL94 V-0 | Gold | Flash | 5 | D DD | 24W7 | 7 | 17 | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Grounding Indents Shielded | Signal and Power | Solder | Plug Male Pins | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 7 | 17 | 2 | Housing/Shell (Unthreaded) | UL94 V-0 | Gold | 5 | D DD | 24W7 | 10A 5A | 30 Áin | 0.76 Ám | |||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Board Lock Grounding Indents Mounting Brackets | Coax Signal | Solder | Plug Male Pins | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 2 | 4-40 | UL94 V-0 | Gold | Flash | 5 | D DD | 24W7 | 7 | 17 | |||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Board Lock Grounding Indents | Signal and Power | Solder | Plug Male Pins | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 7 | 17 | 2 | 4-40 | UL94 V-0 | Gold | Flash | 5 | D DD | 24W7 | 20A 5A | ||||||
 EDAC Inc. | Polyester Thermoplastic | Copper Alloy | -55 C | 125 °C | Black | 125 VDC | Grounding Indents Mounting Brackets | Signal and Power | Solder | Plug Male Pins | 9.4 mm | 0.37 in | Combo D-Sub | Right Angle Through Hole | 7 | 17 | 2 | Housing/Shell (M3) | UL94 V-0 | Gold | 5 | D DD | 24W7 | Nickel Plated Steel | 10A 5A | 30 Áin | 0.76 Ám |
