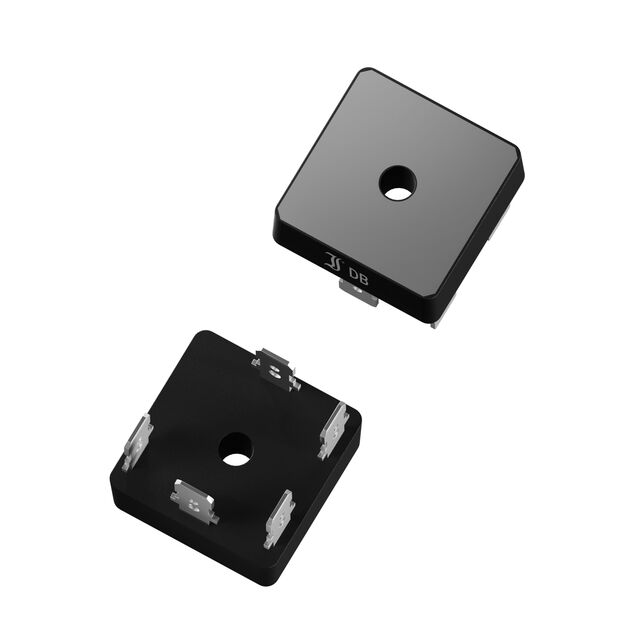

DB35 Series

Catalog

3P RECT, 1000V, 35A, 450A, 1.05V

Part	Supplier Device Package	Diode Type	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Peak Reverse (Max) [Max]	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Technology	Voltage - Peak Reverse (Max)

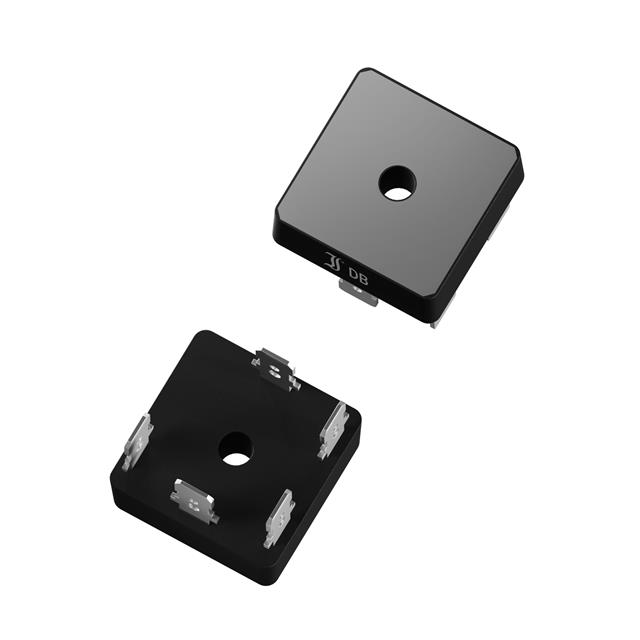

Diotec Semiconductor DB35-10	DB DB-35	Three Phase	Chassis Mount	1.05 V	-50 °C	150 °C	5-Square DB-35	1 kV	10 çA	35 A	Standard
Diotec Semiconductor DB35-04	DB	Three Phase	Chassis Mount	1.05 V	-50 °C	150 °C	5-Square DB-35	400 V	5 µA	35 A	Standard
Diotec Semiconductor DB35-14	DB	Three Phase	Chassis Mount	1.05 V	-50 °C	150 °C	5-Square DB-35		10 µA	35 A	Standard	1.4 kV
Diotec Semiconductor DB35-12	DB DB-35	Three Phase	Chassis Mount	1.05 V	-50 °C	150 °C	5-Square DB-35		10 µA	35 A	Standard	1.2 kV
Diotec Semiconductor DB35-02	DB DB-35	Three Phase	Chassis Mount	1.05 V	-50 °C	150 °C	5-Square DB-35		5 ÁA	35 A	Standard	200 V
Diotec Semiconductor DB35-01	DB	Three Phase	Chassis Mount	1.05 V	-50 °C	150 °C	5-Square DB-35	100 V	5 µA	35 A	Standard
