C14611R010 Series

Catalog

CONN HOOD TOP ENTRY SZE10 M32

Part	Style	Ingress Protection	Housing Material	Thread Size	Size	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Connector Type	Lock Location	Housing Finish	Housing Color

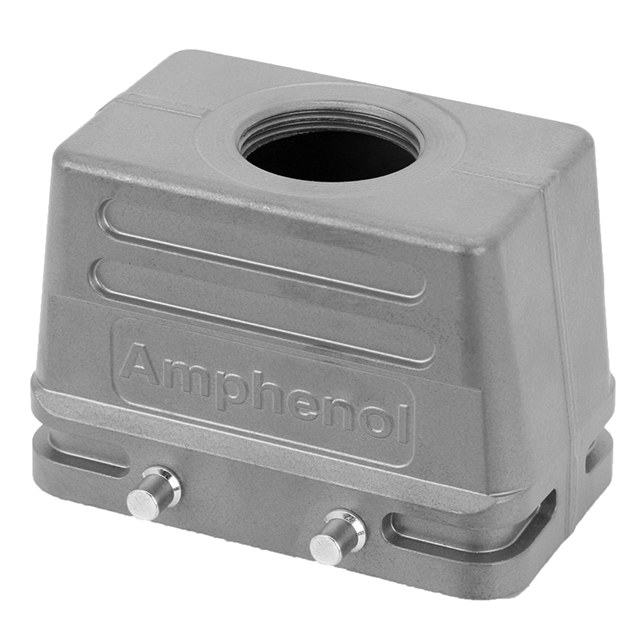

Amphenol Tuchel Industrial C14611R0106011	Top Entry	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	M32	E10	125 °C	-40 C	1.693 "	73 mm	51 mm	43 mm	2.874 "	2.008 "	Hood	Locking Clip (2) on Base Bottom	EMC Coating
Amphenol Tuchel Industrial C14611R0106008	Top Entry	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	M32	E10	125 °C	-40 C	1.693 "	73 mm	70 mm	43 mm	2.874 "	2.756 "	Hood	Locking Clip (2) on Base Bottom	EMC Coating	Gray

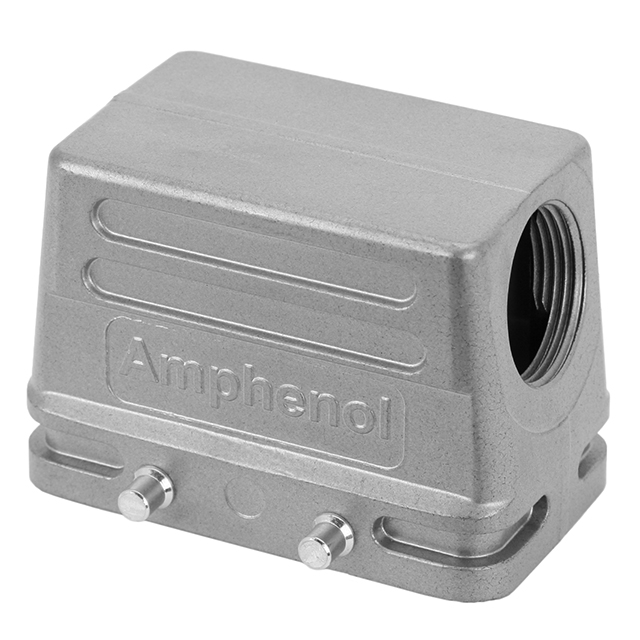

Amphenol Tuchel Industrial C14611R0105001	Side Entry	IP65 - Dust Tight Water Resistant	Aluminum Alloy Die Cast	M25	E10	125 °C	-40 C	1.693 "	73 mm	51 mm	43 mm	2.874 "	2.008 "	Hood	Locking Clip (2) on Base Bottom	EMC Coating
Amphenol Tuchel Industrial C14611R0106018	Top Entry	IP65 - Dust Tight Water Resistant	Aluminum Die Cast		E10	125 °C	-40 C	1.693 "	73 mm	70 mm	43 mm	2.874 "	2.756 "	Hood	Locking Clip (2) on Base Bottom	EMC Coating	Gray
Amphenol Tuchel Industrial C14611R0106508	Top Entry	IP65 - Dust Tight Water Resistant	Aluminum Die Cast	M25	E10	125 °C	-40 C	1.693 "	73 mm	70 mm	43 mm	2.874 "	2.756 "	Hood	Locking Clip (2) on Base Bottom	EMC Coating	Gray
