DCPA10512D Series

Miniature, 1W Isolated Unregulated DC/DC Converters

Catalog

Miniature, 1W Isolated Unregulated DC/DC Converters

Part	Efficiency	Voltage - Input (Max) [Max]	Voltage - Output 2	Voltage - Isolation	Number of Outputs	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [x]	Package / Case [x]	Package / Case [custom]	Current - Output (Max) [Max]	Current - Output (Max) [Max]	Supplier Device Package	Type	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Mounting Type	Board Type	Voltage - Output	Supplied Contents	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Power - Output	Outputs and Type	Outputs and Type	Utilized IC / Part	Package / Case
Texas Instruments DCPA10512DP	88 %	5.5 V	-12 V	2000 V	2	4.5 V	100 °C	-40 °C	14-DIP	0.3 "	7.62 mm	7	42 mA	42 mA	7-PDIP	Isolated Module	12 V	0.26 "	19.2 mm	0.76 "	0.21 in	6.6 mm	5.3 mm	ITE (Commercial)	Through Hole
Texas Instruments DCPA10512P	87 %	5.5 V		2000 V	1	4.5 V	100 °C	-40 °C	14-DIP	0.3 "	7.62 mm	7	83 mA		7-PDIP	Isolated Module	12 V	0.26 "	19.2 mm	0.76 "	0.21 in	6.6 mm	5.3 mm	ITE (Commercial)	Through Hole

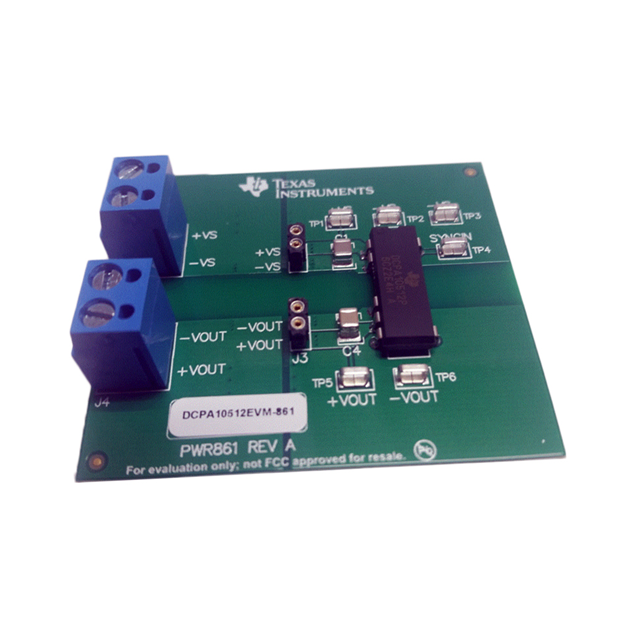

Texas Instruments DCPA10512EVM-861																										Fully Populated	12 V	Board(s)	DC/DC Converter	5.5 V	4.5 V	1 W	Isolated	1	DCPA10505
Texas Instruments DCPA10512P-U/700	87 %	5.5 V		2000 V	1	4.5 V	100 °C	-40 °C	14-SMD Module Gull Wing				83 mA		7-SOP	Isolated Module	12 V	0.26 "	19.2 mm	0.76 "	0.21 in	6.6 mm	5.3 mm	ITE (Commercial)	Surface Mount											7 Leads

Catalog

Miniature, 1W Isolated Unregulated DC/DC Converters

Key Features

• 2-kVDC Isolation (operational): 1-second testContinuous voltage applied across isolation barrier: 60 VDC / 42.5 VACUL1950 recognized componentEN55022 class B EMC performance7-Pin PDIP and 7-pin SOP packagesInput voltage: 5 V ±10%Output voltage: ±5 V, ±12 V, or ±15 VSoft start to reduce in-rush currentFrequency synchronizationThermal protectionShort-circuit protectedHigh efficiency2-kVDC Isolation (operational): 1-second testContinuous voltage applied across isolation barrier: 60 VDC / 42.5 VACUL1950 recognized componentEN55022 class B EMC performance7-Pin PDIP and 7-pin SOP packagesInput voltage: 5 V ±10%Output voltage: ±5 V, ±12 V, or ±15 VSoft start to reduce in-rush currentFrequency synchronizationThermal protectionShort-circuit protectedHigh efficiency

Description

The DCPA1 series is a family of 1-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of two external components, the DCPA1 series of devices include on-chip device protection, and the ability to synchronize to an external clock. This combination of features and small size makes the DCPA1 series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation. The DCPA1 series is a family of 1-W, isolated, unregulated DC/DC converter modules. Requiring a minimum of two external components, the DCPA1 series of devices include on-chip device protection, and the ability to synchronize to an external clock. This combination of features and small size makes the DCPA1 series of devices suitable for a wide range of applications, and is an easy-to-use solution in applications requiring signal path isolation.
