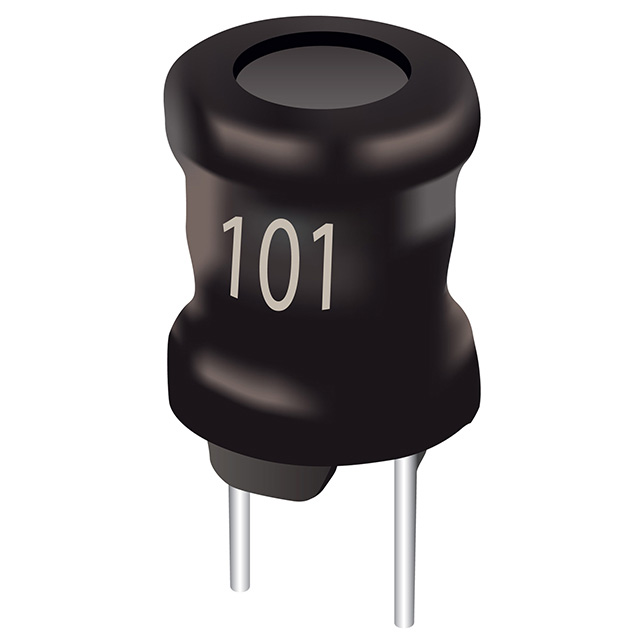

RLB0913 Series

Catalog

IND 8.5X12.5MM 68UH10% 1.4A NON-SHD TH /TRAY PACKAGING

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency - Self Resonant	Operating Temperature [Min]	Operating Temperature [Max]	DC Resistance (DCR)	Inductance Frequency - Test	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Shielding	Current Rating (Amps)	Q @ Freq	Mounting Type	Material - Core	Current - Saturation (Isat)	Package / Case	Inductance	Tolerance	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. RLB0913-680K	0.492 in	12.5 mm	4.9 MHz	-55 C	125 °C	210 mOhm	1 kHz	0.335 in	8.5 mm	Drum Core Wirewound	Unshielded	1.4 A	2.52 MHz 30	Through Hole	Ferrite	1.2 A	Radial Vertical Cylinder	68 µH	10 %
Bourns Inc. RLB0913-560K	0.492 in	12.5 mm	5.4 MHz	-55 C	125 °C	180 mOhm	1 kHz	0.335 in	8.5 mm	Drum Core Wirewound	Unshielded	1.75 A	2.52 MHz 30	Through Hole	Ferrite	1.3 A	Radial Vertical Cylinder	56 µH	10 %
Bourns Inc. RLB0913-1R5K	0.492 in	12.5 mm	130 MHz	-55 C	125 °C	16 mOhm	7.96 MHz	0.335 in	8.5 mm	Drum Core Wirewound	Unshielded	5.75 A		Through Hole	Ferrite	8.5 A	Radial Vertical Cylinder	1.5 µH	10 %	7.96 MHz	20
Bourns Inc. RLB0913-470K	0.492 in	12.5 mm	6.5 MHz	-55 C	125 °C	160 mOhm	1 kHz	0.335 in	8.5 mm	Drum Core Wirewound	Unshielded	2.35 A	2.52 MHz 30	Through Hole	Ferrite	1.4 A	Radial Vertical Cylinder	47 µH	10 %
Bourns Inc. RLB0913-681K	0.492 in	12.5 mm	1.6 MHz	-55 C	125 °C	1.6 Ohm	1 kHz	0.335 in	8.5 mm	Drum Core Wirewound	Unshielded	0.42 A		Through Hole	Ferrite	380 mA	Radial Vertical Cylinder	680 µH	10 %		20	796 kHz
Bourns Inc. RLB0913-331K	0.492 in	12.5 mm	2.3 MHz	-55 C	125 °C	719 mOhm	1 kHz	0.335 in	8.5 mm	Drum Core Wirewound	Unshielded	0.85 A		Through Hole	Ferrite	0.56 A	Radial Vertical Cylinder	330 µH	10 %		20	796 kHz
Bourns Inc. RLB0913-682K	0.492 in	12.5 mm	400 kHz	-55 C	125 °C	19 Ohm	1 kHz	0.335 in	8.5 mm	Drum Core Wirewound	Unshielded	135 mA		Through Hole	Ferrite	50 mA	Radial Vertical Cylinder		10 %	252 kHz	20
Bourns Inc. RLB0913-221K	0.492 in	12.5 mm	2.7 MHz	-55 C	125 °C	650 mOhm	1 kHz	0.335 in	8.5 mm	Drum Core Wirewound	Unshielded	700 mA		Through Hole	Ferrite	640 mA	Radial Vertical Cylinder	220 µH	10 %		20	796 kHz
Bourns Inc. RLB0913-273K	0.492 in	12.5 mm	100 kHz	-55 C	125 °C	62 Ohm	1 kHz	0.335 in	8.5 mm	Drum Core Wirewound	Unshielded	75 mA	30 79.6 kHz	Through Hole	Ferrite	30 mA	Radial Vertical Cylinder	27 mH	10 %
Bourns Inc. RLB0913-101K	0.492 in	12.5 mm	3.7 MHz	-55 C	125 °C	280 mOhm	1 kHz	0.335 in	8.5 mm	Drum Core Wirewound	Unshielded	1.2 A		Through Hole	Ferrite	910 mA	Radial Vertical Cylinder	100 µH	10 %		20	796 kHz
