AON24 Series

Catalog

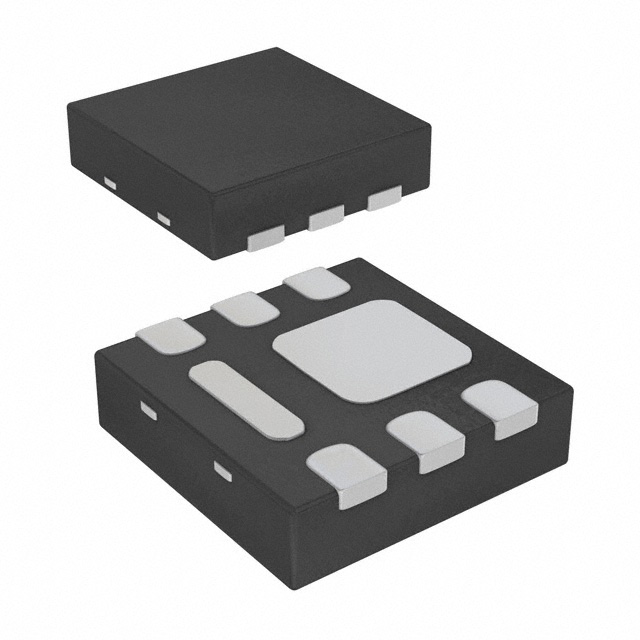

MOSFET P-CH 20V 8A 6DFN

Part	Current - Continuous Drain (Id) @ 25°C	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max)	Package / Case	Mounting Type	Drain to Source Voltage (Vdss)	Drive Voltage (Max Rds On, Min Rds On)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Vgs (Max) [Max]	Gate Charge (Qg) (Max) @ Vgs	FET Type	Vgs(th) (Max) @ Id	Input Capacitance (Ciss) (Max) @ Vds [Max]	Vgs (Max) [Min]
Alpha & Omega Semiconductor Inc. AON2405	8 A	32 mOhm	1025 pF	2.8 W	6-UDFN Exposed Pad	Surface Mount	20 V	1.5 V 4.5 V	6-DFN (2x2)	150 °C	-55 °C	MOSFET (Metal Oxide)	8 V	18 nC	P-Channel	900 mV
Alpha & Omega Semiconductor Inc. AON2400	8 A	11 mOhm		2.8 W	6-UDFN Exposed Pad	Surface Mount	8 V	1.2 V 2.5 V	6-DFN (2x2)	150 °C	-55 °C	MOSFET (Metal Oxide)	5 V	16 nC	N-Channel	750 mV	1645 pF	-5 V
Alpha & Omega Semiconductor Inc. AON2406	8 A	12.5 mOhm		2.8 W	6-UDFN Exposed Pad	Surface Mount	20 V	1.5 V 4.5 V	6-DFN (2x2)	150 °C	-55 °C	MOSFET (Metal Oxide)	8 V	18 nC	N-Channel	1 V	1140 pF
