8723MN Series

Catalog

MULTI-PAIR 4COND 22AWG BLU

Part	Shield Coverage	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Material	Length	Length	Wire Gauge	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Jacket (Insulation) Material	Number of Conductors	Length [x]	Length [x]

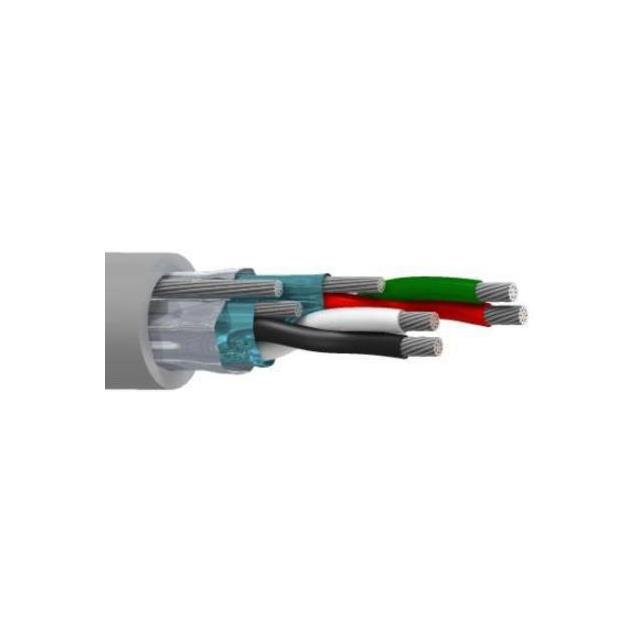

Belden Inc. 8723MN 0061000	100 %	Aluminum	80 °C	-20 ░C	Blue	Multi-Pair	0.406 mm	0.016 in	Copper Tinned	304.8 m	1000 ft	22 AWG	300 VDC	5.79 mm	0.228 in	Foil	34 AWG	19	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)	4
Belden Inc. 8723MN 006100	100 %	Aluminum	80 °C	-20 ░C	Blue	Multi-Pair	0.406 mm	0.016 in	Copper Tinned			22 AWG	300 VDC	5.79 mm	0.228 in	Foil	34 AWG	19	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)	4	100 ft	30.5 m
Belden Inc. 8723MN 008100	100 %	Aluminum	80 °C	-20 ░C	Gray	Multi-Pair	0.406 mm	0.016 in	Copper Tinned			22 AWG	300 VDC	5.79 mm	0.228 in	Foil	34 AWG	19	Polypropylene (PP)	Poly-Vinyl Chloride (PVC)	4	100 ft	30.5 m
