9421 Series
Manufacturer: Belden Inc.
Beta
⌘K

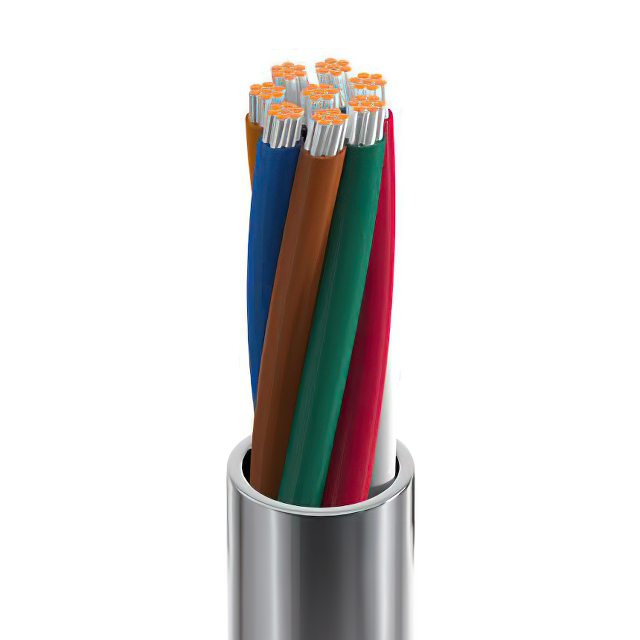

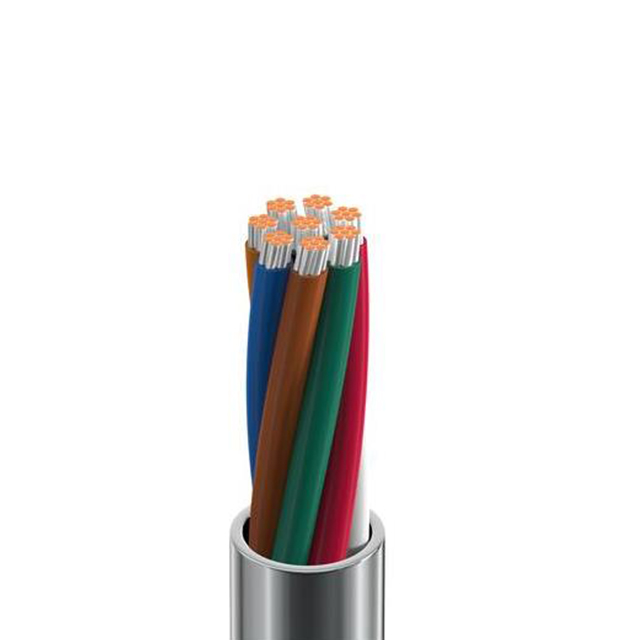

CABLE 8COND 22AWG CHROME
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors [custom] | Jacket Color | Usage | Conductor Insulation | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Wire Gauge | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 80 °C | -20 ░C | 8 | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | UL Style 2576 | 30 AWG | 7 | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Conductor | 0.229 in | 5.82 mm | ||
 Belden Inc. | 80 °C | -20 ░C | 8 | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | UL Style 2576 | 30 AWG | 7 | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Conductor | 0.229 in | 5.82 mm | 304.8 m | 1000 ft |
Belden Inc. | 80 °C | -20 ░C | 8 | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | UL Style 2576 | 30 AWG | 7 | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Conductor | 0.229 in | 5.82 mm | 304.8 m | 1000 ft |
Belden Inc. | 80 °C | -20 ░C | 8 | Chrome | Audio Control Instrumentation | Poly-Vinyl Chloride (PVC) | UL Style 2576 | 30 AWG | 7 | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 22 AWG | Multi-Conductor | 0.229 in | 5.82 mm | 152.4 m | 500 ft |
