C737U Series
Manufacturer: KEMET
Beta
⌘K

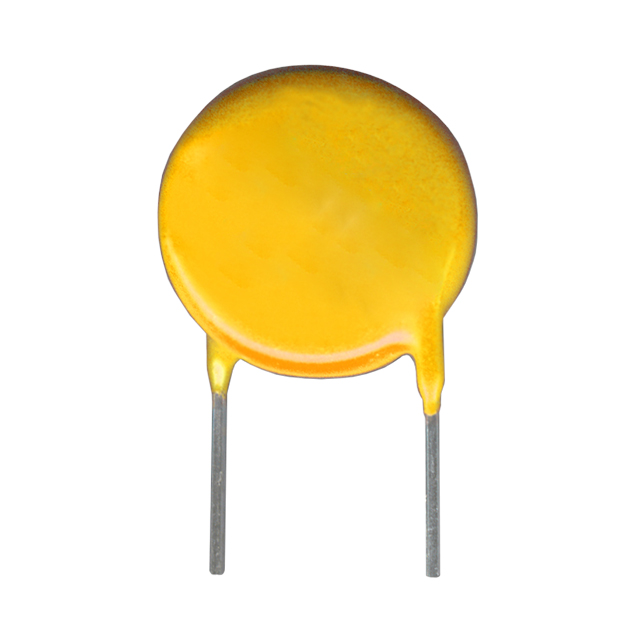

SAFETY CAPACITORS 440V / 250 V 2200PF Y5U 20% LS=7.5MM
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lead Spacing | Lead Spacing | Capacitance | Size / Dimension [diameter] | Size / Dimension [diameter] | Temperature Coefficient | Mounting Type | Applications | Voltage - Rated | Lead Style | Package / Case | Ratings |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | -55 C | 125 °C | 20 % | 14 mm | 0.551 in | 0.295 in | 7.5 mm | 2200 pF | 0.394 in | 10 mm | Y5U (E) | Through Hole | Safety | 400 VAC | Formed Leads - Kinked | Disc Radial | X1 Y2 |
