Relay Sockets & Hardware Socket Through Panel Solder
Relay Sockets & Hardware Socket Through Panel Solder
| Part | Coil Current | Approval Agency | Must Release Voltage | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Features | Contact Material | Contact Form | Release Time | Termination Style | Mounting Type | Coil Voltage | Relay Type | Contact Rating (Current) | Must Operate Voltage | Coil Type | Switching Voltage | Load - Max Switching | For Use With/Related Products | Accessory Type | Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 18 mA | CE CSA TUV UR | 4.8 VDC | 20 ms | 55 °C | -25 °C | Test Button | Gold (Au) Silver (Ag) | DPDT (2 Form C) | 20 ms | PC Pin | Through Hole | 48 VDC | General Purpose | 3 A | 38.4 VDC | Non Latching | 30 VDC 240 VAC | 90 W 720 VA | ||||
IDEC | RY2KS Series | Clip Hold Down | |||||||||||||||||||||
IDEC | 0.075 A | CE CSA TUV UR | 3.6 VAC | 20 ms | 55 °C | -25 °C | Lighted Indicator Test Button | Gold (Au) Silver (Ag) | DPDT (2 Form C) | 20 ms | PC Pin | Through Hole | 12 VAC | General Purpose | 3 A | 9.6 VAC/DC | Non Latching | 30 VDC 240 VAC | 90 W 720 VA | ||||
 IDEC | 0.075 A | CE CSA TUV UR | 3.6 VAC | 20 ms | 55 °C | -25 °C | Gold (Au) Silver (Ag) | DPDT (2 Form C) | 20 ms | Plug In | Socketable | 12 VAC | General Purpose | 3 A | 9.6 VAC/DC | Non Latching | 30 VDC 240 VAC | 90 W 720 VA | |||||

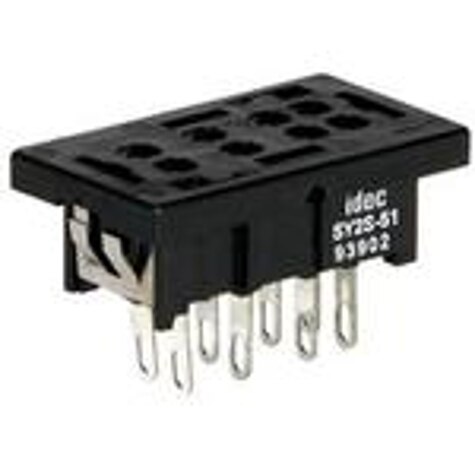

 IDEC | Solder Lug | Panel Mount | RY Series | Socket | 8 |
