201841 Series
MultiCat High-Power Inline Receptacle Housing with CPA, 3 Circuits, Gray, Key B
Manufacturer: Molex
Catalog
MultiCat High-Power Inline Receptacle Housing with CPA, 3 Circuits, Gray, Key B
Beta
⌘K
MultiCat High-Power Inline Receptacle Housing with CPA, 3 Circuits, Gray, Key B
MultiCat High-Power Inline Receptacle Housing with CPA, 3 Circuits, Gray, Key B
MultiCat High-Power Inline Receptacle Housing with CPA, 3 Circuits, Gray, Key B
| Part | Note | Mounting Type | Pitch | Pitch | Connector Type | Color | Contact Type | Insulation Material | Features | Fastening Type | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Contacts Not Included | Free Hanging (In-Line) | 0.291 " | 7.4 mm | Receptacle | Gray | Female Socket | Polyetherimide (PEI) | Connector Position Assurance (CPA) | Latch Lock | Crimp | -40 C | 150 °C | 1 | |
 Molex | Contacts Not Included | Free Hanging (In-Line) | 0.291 " | 7.4 mm | Receptacle | Black | Female Socket | Polyetherimide (PEI) | Connector Position Assurance (CPA) | Latch Lock | Crimp | -40 C | 150 °C | 1 | |
 Molex | Contacts Not Included | Free Hanging (In-Line) | 0.291 " | 7.4 mm | Receptacle | Black | Female Socket | Polyetherimide (PEI) | Latch Lock | Crimp | -40 C | 150 °C | 1 | 4 | |
 Molex | Contacts Not Included | Free Hanging (In-Line) | 0.291 " | 7.4 mm | Receptacle | Gray | Female Socket | Polyetherimide (PEI) | Latch Lock | Crimp | -40 C | 150 °C | 1 | ||
 Molex | Contacts Not Included | Free Hanging (In-Line) | 0.291 " | 7.4 mm | Receptacle | Black | Female Socket | Polyetherimide (PEI) | Latch Lock | Crimp | -40 C | 150 °C | 1 | ||

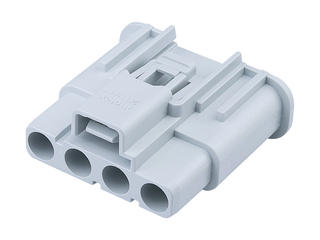

 Molex | Contacts Not Included | Free Hanging (In-Line) | 0.291 " | 7.4 mm | Receptacle | Gray | Female Socket | Polyetherimide (PEI) | Latch Lock | Crimp | -40 C | 150 °C | 1 | 4 | |

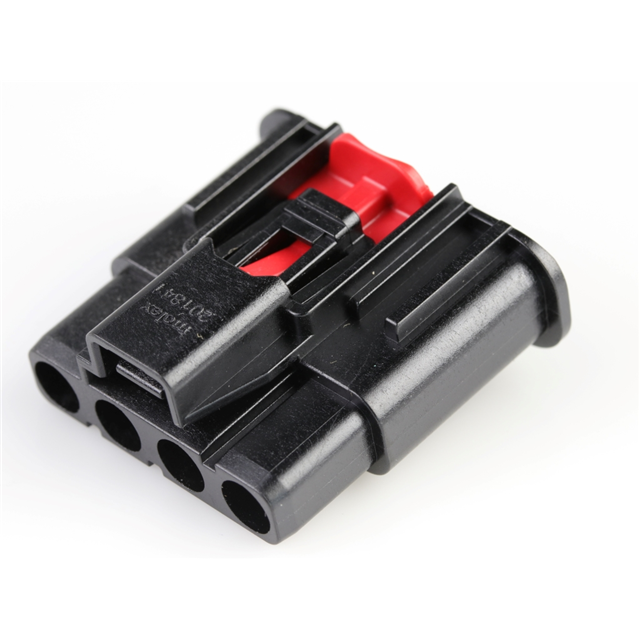

 Molex | Contacts Not Included | Free Hanging (In-Line) | 0.291 " | 7.4 mm | Receptacle | Black | Female Socket | Polyetherimide (PEI) | Connector Position Assurance (CPA) | Latch Lock | Crimp | -40 C | 150 °C | 1 | 4 |
