1546462 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

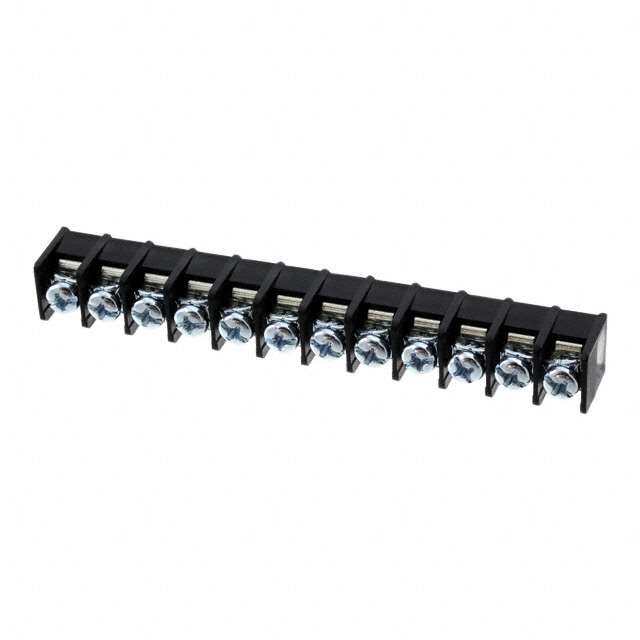

CONN BARRIER STRP 12CIRC 0.325"
| Part | Number of Wire Entries | Color | Terminal Block Type | Wire Gauge [Min] | Wire Gauge [Max] | Barrier Type | Terminal Screw Finish | Voltage Rating | Top Termination | Pitch [x] | Pitch [x] | Material Flammability Rating | Number of Rows | Number of Circuits | Bottom Termination | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Material - Insulation | Mounting Type | Terminal Screw Material | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 12 | Black | Barrier Block | 12 AWG | 22 AWG | 2 Wall (Dual) | Clear Chromate Zinc | 150 VDC | Screws with Captive Plate | 8.26 mm | 0.325 in | UL91 V-0 | 1 | 12 | PC Pin | -40 °C | 105 ░C | 20 A | Thermoplastic | Through Hole Right Angle | Steel | |
TE Connectivity Raychem Cable Protection | 8 | Black | Barrier Block | 12 AWG | 22 AWG | 2 Wall (Dual) | Clear Chromate Zinc | 150 VDC | Screws with Captive Plate | 8.26 mm | 0.325 in | UL94 V-0 | 1 | PC Pin | -40 °C | 105 ░C | 20 A | Thermoplastic | Through Hole Right Angle | Steel | 8 | |
TE Connectivity Raychem Cable Protection | 14 | Black | Barrier Block | 12 AWG | 22 AWG | 2 Wall (Dual) | Clear Chromate Zinc | 150 VDC | Screws with Captive Plate | 8.26 mm | 0.325 in | UL94 V-0 | 1 | 14 | PC Pin | -40 °C | 105 ░C | 20 A | Thermoplastic | Through Hole Right Angle | Steel |
