1179C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

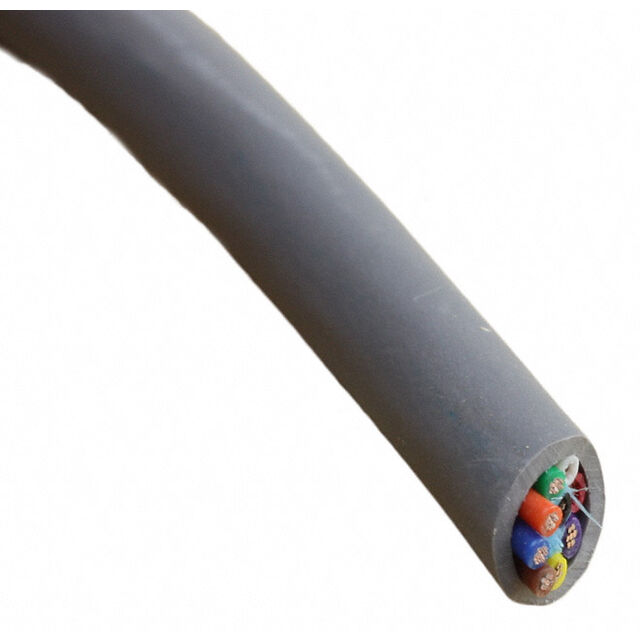

CABLE 9COND 22AWG SLATE 500'
| Part | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Length | Length | Conductor Material | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Conductor Insulation | Jacket (Insulation) Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Voltage | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 30 AWG | 7 | 0.813 mm | 0.032 in | 22 AWG | 152.4 m | 500 ft | Copper Tinned | Multi-Conductor | 6.25 mm | 0.246 in | Communication Control | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 9 | 150 V | Slate |
ALPHA WIRE | 30 AWG | 7 | 0.813 mm | 0.032 in | 22 AWG | 304.8 m | 1000 ft | Copper Tinned | Multi-Conductor | 6.25 mm | 0.246 in | Communication Control | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 9 | 150 V | Slate |
