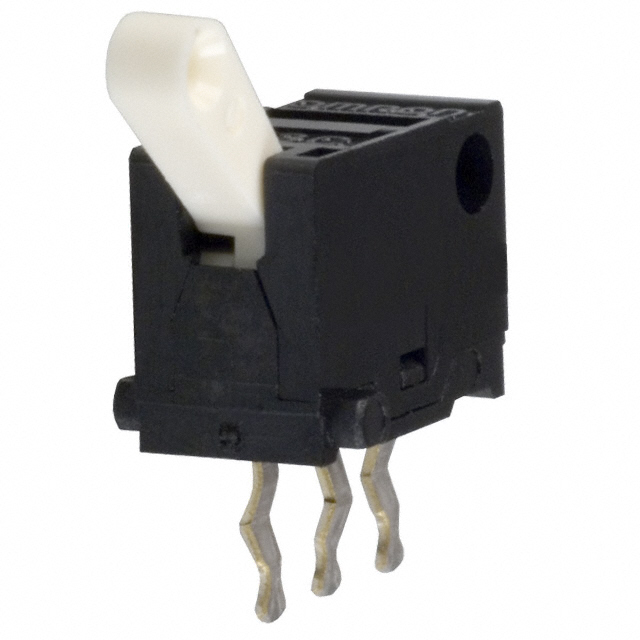

D3C Series

Catalog

SWITCH DETECTOR SPDT 0.1A 30V

Part	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Ingress Protection	Actuator Type	Mounting Type	Operating Position [custom]	Operating Position [custom]	Termination Style	Switch Function	Current Rating (Amps)	Circuit	Release Force	Operating Force	Operating Position [x]	Operating Position [x]
Omron Electronics Inc-EMC Div D3C-1220	30 V	-20 C	80 C	50000 Cycles	IP00	Angled Toggle (Detector)	Through Hole	3.5 mm	0.138 in	PC Pin	On-Mom	100 mA	SPDT	3.059 gf	40 gf
Omron Electronics Inc-EMC Div D3C-1210	30 V	-20 C	80 C	50000 Cycles	IP00	Angled Toggle (Detector)	Through Hole	3.5 mm	0.138 in	PC Pin	On-Mom	100 mA	SPDT	10 gf	130 gf
Omron Electronics Inc-EMC Div D3C-2220	30 V	-20 C	80 C	50000 Cycles	IP00	Angled Toggle (Detector)	Through Hole			PC Pin	On-Mom	100 mA	SPDT	3.059 gf	40 gf	3.4 mm	0.134 in
