1.5KE120 Series
Manufacturer: Taiwan Semiconductor Corporation
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

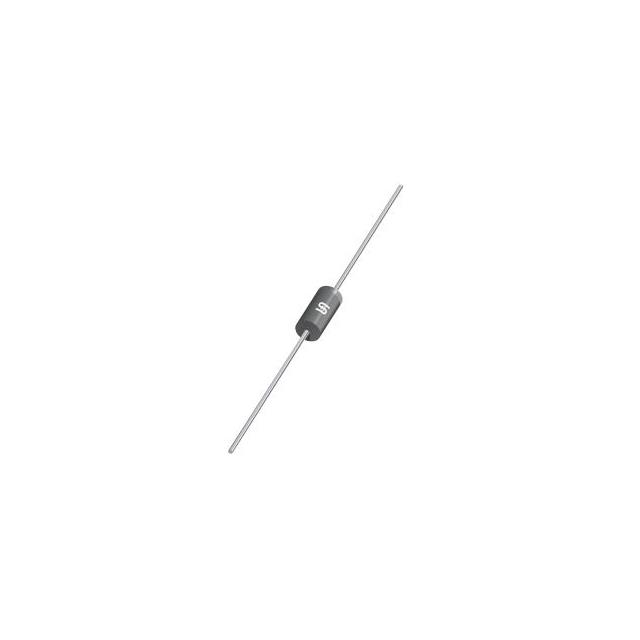

TVS DIODE 102VWM 165VC DO201
| Part | Voltage - Breakdown (Min) | Package / Case | Voltage - Reverse Standoff (Typ) | Type | Grade | Current - Peak Pulse | Mounting Type | Power Line Protection | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Clamping (Max) | Unidirectional Channels | Power - Peak Pulse | Qualification | Package Name | Applications | Bidirectional Channels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taiwan Semiconductor Corporation | 114 V | Axial DO-201AA DO-27 | 102 V | Zener | Automotive | 9.5 A | Through Hole | No | -55 °C | 175 °C | 165 V | 1 | 1500 W | AEC-Q101 | DO-201 | ||
Taiwan Semiconductor Corporation | 114 V | Axial DO-201AA DO-27 | 102 V | Zener | 9.5 A | Through Hole | No | -55 °C | 175 °C | 165 V | 1500 W | DO-201 | General Purpose | 1 | |||
Taiwan Semiconductor Corporation | 114 V | Axial DO-201AA DO-27 | 102 V | Zener | 9.5 A | Through Hole | No | -55 °C | 175 °C | 165 V | 1 | 1500 W | DO-201 | General Purpose | |||
Taiwan Semiconductor Corporation | 108 V | Axial DO-201AA DO-27 | 97.2 V | Zener | Automotive | 9.1 A | Through Hole | No | -55 °C | 175 °C | 173 V | 1500 W | AEC-Q101 | DO-201 | General Purpose | 1 | |
 Taiwan Semiconductor Corporation | 108 V | Axial DO-201AA DO-27 | 97.2 V | Zener | Automotive | 9.1 A | Through Hole | No | -55 °C | 175 °C | 173 V | 1 | 1500 W | AEC-Q101 | DO-201 | General Purpose | |
Taiwan Semiconductor Corporation | 114 V | Axial DO-201AA DO-27 | 102 V | Zener | 9.5 A | Through Hole | No | -55 °C | 175 °C | 165 V | 1 | 1500 W | DO-201 | General Purpose |
