80124 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

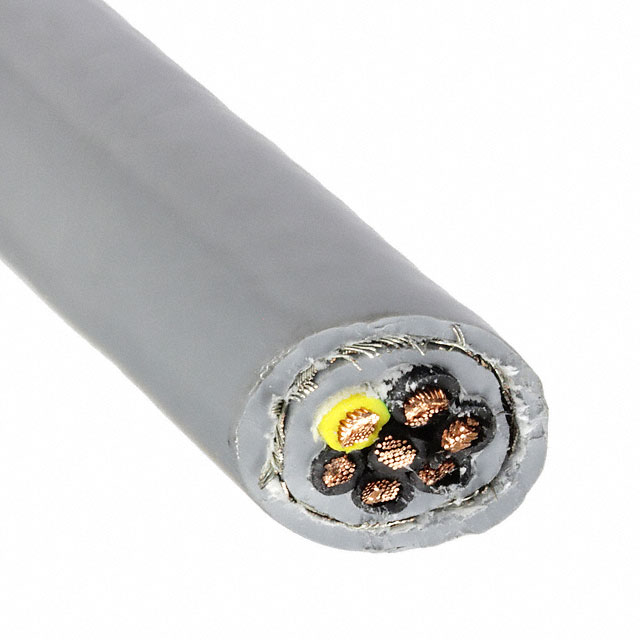

CABLE 7CON 20AWG SLATE SHLD 100'
| Part | Shield Material | Shield Coverage | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Voltage | Wire Gauge | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | Slate | 90 °C | -50 °C | Multi-Conductor | Copper Tinned | 26 | 34 AWG | Polyphenylene Ether (PPE) | 600 V | 20 AWG | Braid | 6.65 mm | 0.262 in | 7 | Polyurethane (PU) | 0.0319 in | 0.81 mm | 100 ft | 30.5 m |
