1067-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

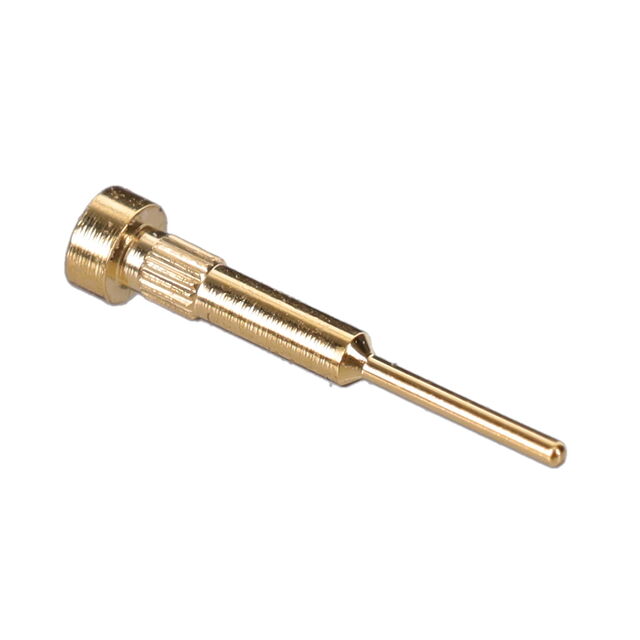

CONN PC PIN CIRC 0.018DIA GOLD
| Part | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Length - Above Flange [x] | Length - Above Flange | Length - Overall [x] | Length - Overall [x] | Terminal Type | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Style | Contact Material | Termination | Mounting Type | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Gold | 0.25 Ám | 10 Áin | 0.018 in | 0.46 mm | 0.34 in | 8.64 mm | 0.371 in | 9.42 mm | PC Pin | 0.042 in | 1.07 mm | 0.072 " | 1.83 mm | Single End | Brass Alloy | Knurled Press-Fit | Through Hole | Non-Insulated |
 Mill-Max Manufacturing Corp. | Tin | 5.08 Ám | 200 Áin | 0.018 in | 0.46 mm | 0.34 in | 8.64 mm | 0.371 in | 9.42 mm | PC Pin | 0.042 in | 1.07 mm | 0.072 " | 1.83 mm | Single End | Brass Alloy | Knurled Press-Fit | Through Hole | Non-Insulated |
 Mill-Max Manufacturing Corp. | Gold | 0.51 µm | 20 µin | 0.018 in | 0.46 mm | 0.34 in | 8.64 mm | 0.371 in | 9.42 mm | PC Pin | 0.042 in | 1.07 mm | 0.072 " | 1.83 mm | Single End | Brass Alloy | Knurled Press-Fit | Through Hole | Non-Insulated |
Mill-Max Manufacturing Corp. | Tin-Lead | 5.08 Ám | 200 Áin | 0.018 in | 0.46 mm | 0.34 in | 8.64 mm | 0.371 in | 9.42 mm | PC Pin | 0.042 in | 1.07 mm | 0.072 " | 1.83 mm | Single End | Brass Alloy | Knurled Press-Fit | Through Hole | Non-Insulated |
