RWR74 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

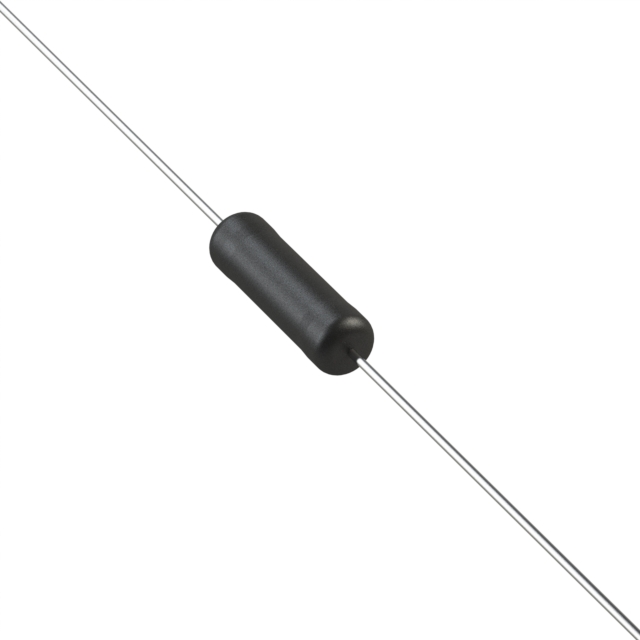

RES 249 OHM 5W 1% WW AXIAL

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Temperature Coefficient	Supplier Device Package	Package / Case	Tolerance	Resistance	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Composition	Number of Terminations	Failure Rate	Features
Vishay General Semiconductor - Diodes Division RWR74S2490FSB12	-55 °C	250 °C	5 W	20 ppm/°C	Axial	Axial	1 %	249 Ohms	0.312 in	22.23 mm	0.875 in	7.92 mm	Wirewound	2	S (0.001%)
Vishay General Semiconductor - Diodes Division RWR74S2371FRS73	-55 °C	250 °C	5 W	20 ppm/°C	Axial	Axial	1 %	2.37 kOhms	0.312 in	22.23 mm	0.875 in	7.92 mm	Wirewound	2	R (0.01%)
Vishay General Semiconductor - Diodes Division RWR74S1R50FRB12	-55 °C	250 °C	5 W	50 ppm/°C	Axial	Axial	1 %		0.312 in	22.23 mm	0.875 in	7.92 mm	Wirewound	2	R (0.01%)
Vishay General Semiconductor - Diodes Division RWR74S1R78FRB12	-55 °C	250 °C	5 W	50 ppm/°C	Axial	Axial	1 %	1.78 Ohms	0.312 in	22.23 mm	0.875 in	7.92 mm	Wirewound	2	R (0.01%)
Vishay General Semiconductor - Diodes Division RWR74S48R7FSBSL	-55 °C	250 °C	5 W	30 ppm/°C	Axial	Axial	1 %	48.7 Ohms	0.312 in	22.23 mm	0.875 in	7.92 mm	Wirewound	2	S (0.001%)
Vishay General Semiconductor - Diodes Division RWR74S1212FRBSL	-55 °C	250 °C	5 W	20 ppm/°C	Axial	Axial	1 %	12.1 kOhms	0.312 in	22.23 mm	0.875 in	7.92 mm	Wirewound	2	R (0.01%)
Vishay General Semiconductor - Diodes Division RWR74N5620FRRSL	-55 °C	250 °C	5 W	20 ppm/°C	Axial	Axial	1 %	562 Ohms	0.312 in	22.23 mm	0.875 in	7.92 mm	Wirewound	2	R (0.01%)	Military Moisture Resistant Non-Inductive
Vishay General Semiconductor - Diodes Division RWR74N2490FRS73	-55 °C	250 °C	5 W	20 ppm/°C	Axial	Axial	1 %	249 Ohms	0.312 in	22.23 mm	0.875 in	7.92 mm	Wirewound	2	R (0.01%)	Military Moisture Resistant Non-Inductive
Vishay General Semiconductor - Diodes Division RWR74N22R1FRB12	-55 °C	250 °C	5 W	30 ppm/°C	Axial	Axial	1 %		0.312 in	22.23 mm	0.875 in	7.92 mm	Wirewound	2	R (0.01%)	Military Moisture Resistant Non-Inductive
Vishay General Semiconductor - Diodes Division RWR74S1R00FMBSL	-55 °C	250 °C	5 W	400 ppm/°C	Axial	Axial	1 %	1 Ohms	0.312 in	22.23 mm	0.875 in	7.92 mm	Wirewound	2	M (1%)
