733 Series

Catalog

PLUGGABLE TERMINAL BLOCK, 2.5 MM, 2 POSITIONS, 28 AWG, 20 AWG, 0.5 MM², CLAMP

Part	Wire Strip Length [Min]	Wire Strip Length [Max]	Material Flammability Rating	Insulation Height	Insulation Height	Contact Material	Color	Pitch	Pitch	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - UL	Contact Mating Finish	Plug Wire Entry	Number of Positions	Mounting Type	Type	Termination Style	Voltage - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current - IEC	Number of Levels	Positions Per Level	Voltage - UL	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]

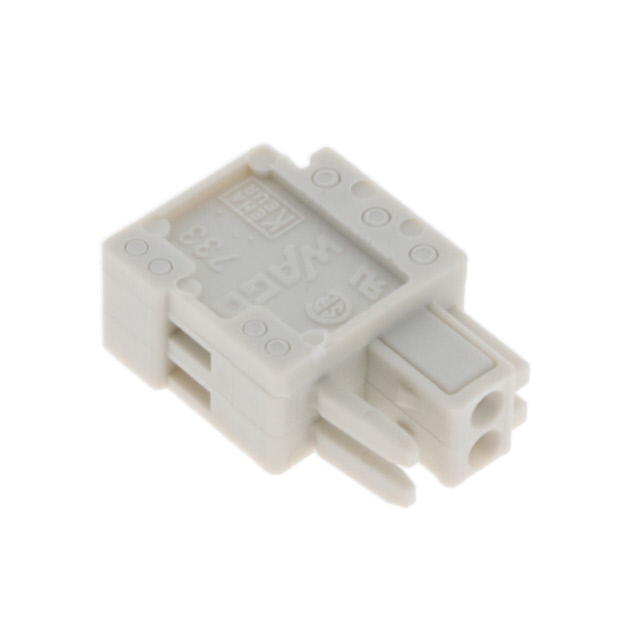

WAGO Corporation 733-102	5 mm	6 mm	UL94 V-0	0.465 in	11.8 mm	Copper Alloy	Gray	2.5 mm	0.098 in	20 AWG	28 AWG	4 A	Tin	180 °	2	Free Hanging (In-Line)	Plug Female Sockets	Screwless - Spring Cage Tension Clamp	320 V	0.5 mm²	0.08 mm²	-60 °C	100 °C	6 A	1	2	150 V

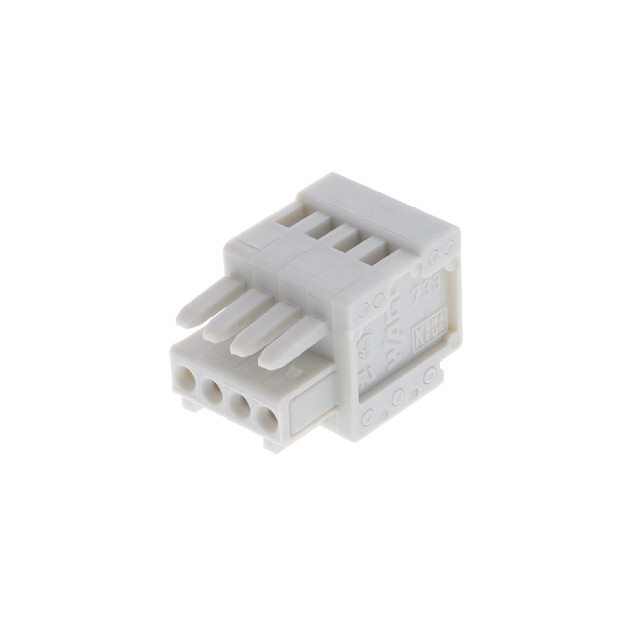

WAGO Corporation 733-104	5 mm	6 mm	UL94 V-0	0.465 in	11.8 mm	Copper Alloy	Gray	2.5 mm	0.098 in	20 AWG	28 AWG	4 A	Tin	180 °	4	Free Hanging (In-Line)	Plug Female Sockets	Screwless - Spring Cage Tension Clamp	320 V	0.5 mm²	0.08 mm²	-60 °C	100 °C	6 A	1	4	150 V	0.08 mm˛	0.5 mm˛

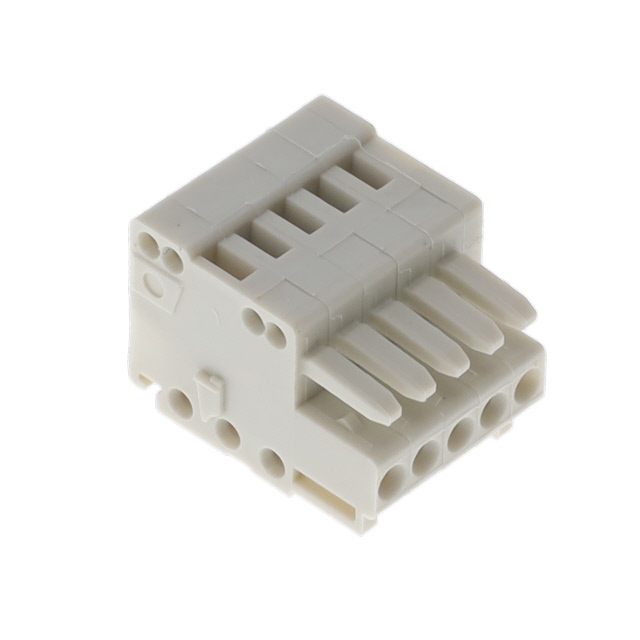

WAGO Corporation 733-105	5 mm	6 mm	UL94 V-0	0.465 in	11.8 mm	Copper Alloy	Gray	2.5 mm	0.098 in	20 AWG	28 AWG	4 A	Tin	180 °	5	Free Hanging (In-Line)	Plug Female Sockets	Screwless - Spring Cage Tension Clamp	320 V	0.5 mm²	0.08 mm²	-60 °C	100 °C	6 A	1	5	150 V

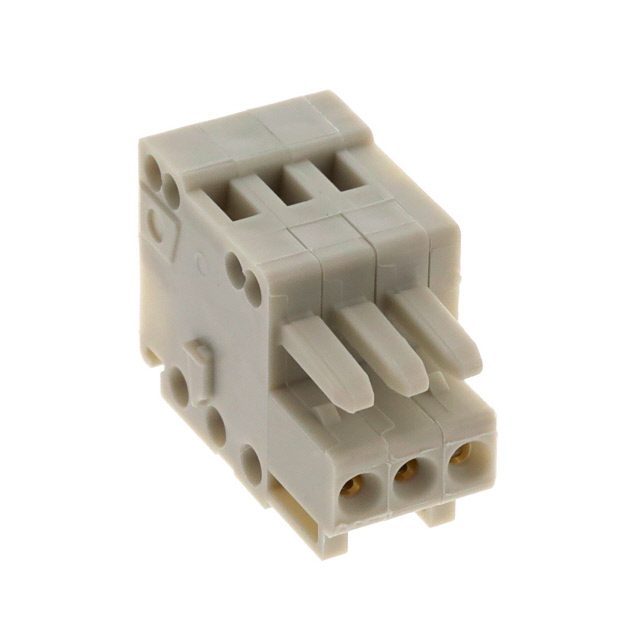

WAGO Corporation 733-103	5 mm	6 mm	UL94 V-0	0.465 in	11.8 mm	Copper Alloy	Gray	2.5 mm	0.098 in	20 AWG	28 AWG	4 A	Tin	180 °		Free Hanging (In-Line)	Plug Female Sockets	Screwless - Spring Cage Tension Clamp	320 V	0.5 mm²	0.08 mm²	-60 °C	100 °C	6 A	1	3	150 V
