19370480 Series
Manufacturer: HARTING
Beta
⌘K
HAN M HOOD SIDE ENTRY HC M40 ROHS COMPLIANT: NA
| Part | Lock Location | Housing Finish | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Ingress Protection | Style | Housing Material | Size | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

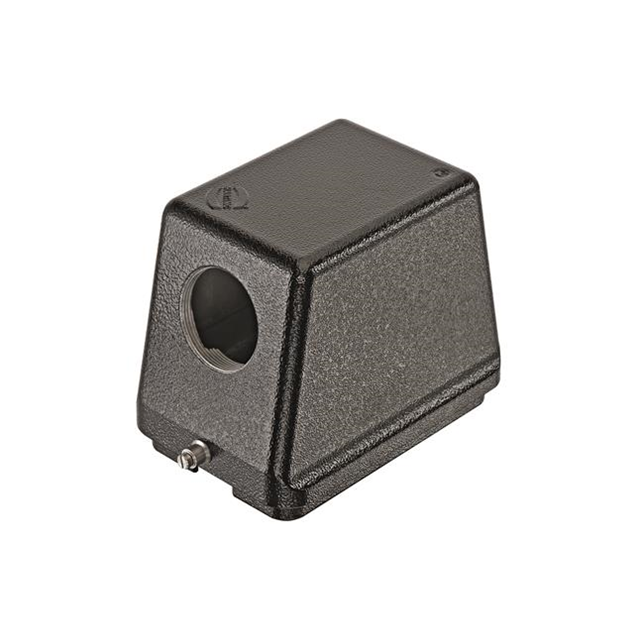

 HARTING | Locking Clip (1) on Base Bottom | Powder Coated | 97.5 mm | 3.839 " | 5.197 " | 3.543 " | 90 mm | 132 mm | 125 °C | -40 C | Black | IP65 - Dust Tight Water Resistant | Side Entry | Aluminum Die Cast | 48 B | Hood |

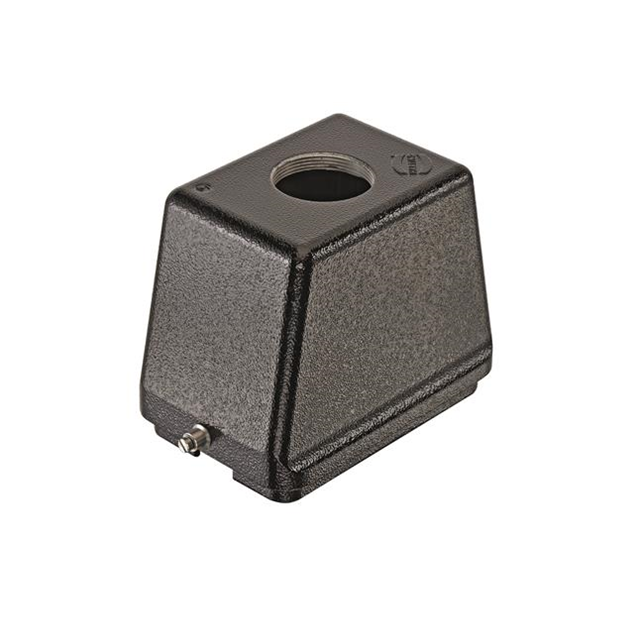

 HARTING | Locking Clip (1) on Base Bottom | Powder Coated | 97.5 mm | 3.839 " | 5.197 " | 3.543 " | 90 mm | 132 mm | 125 °C | -40 C | Black | IP65 - Dust Tight Water Resistant | Top Entry | Aluminum Die Cast | 48 B | Hood |
