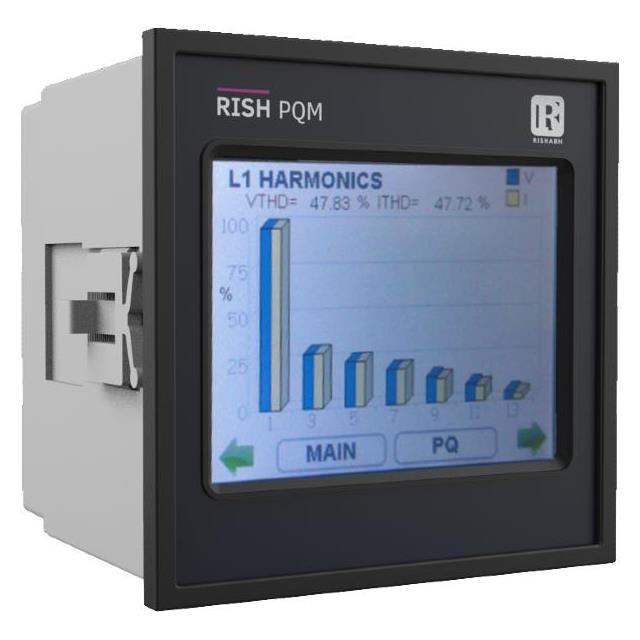

RISH PQM Series
Manufacturer: Rishabh Instruments
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
POWER QUALITY MONITOR
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Display Type | Termination Style | Measuring Type | Ingress Protection Description | Ingress Protection IP Rating | Measuring Voltage Range (Minimum) | Measuring Range (Frequency) Maximum | Measuring Voltage Range (Maximum) | Measuring Range (Current) Minimum | Measuring Range (Current) Maximum | Measuring Range (Frequency) Minimum | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Type | Mounting Type | Output Type | Relay (Count) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rishabh Instruments | -10 °C | 55 °C | LED | Screw Terminal | Current (3-Phase) Voltage Wattage | Dust Protected Water Resistant | IP55 | 5 VAC | 66 Hz | 600 VAC | 0.001 A | 6 A | 45 Hz | 92.8 mm | Square | 92.8 mm | 60 VAC/DC | 300 VAC/DC | Energy Monitor | DIN Rail | ||
 Rishabh Instruments | -10 °C | 55 °C | LED | Screw Terminal | Current (3-Phase) Voltage Wattage | Dust Protected Water Resistant | IP55 | 5 VAC | 66 Hz | 600 VAC | 0.001 A | 6 A | 45 Hz | 92.8 mm | Square | 92.8 mm | 60 VAC/DC | 300 VAC/DC | Energy Monitor | DIN Rail | Relay Serial | 2 |
Rishabh Instruments | -10 °C | 55 °C | LED | Screw Terminal | Current (3-Phase) Voltage Wattage | Dust Protected Water Resistant | IP55 | 5 VAC | 66 Hz | 600 VAC | 0.001 A | 6 A | 45 Hz | 92.8 mm | Square | 92.8 mm | 60 VAC/DC | 300 VAC/DC | Energy Monitor | DIN Rail | ||
Rishabh Instruments | -10 °C | 55 °C | LED | Screw Terminal | Current (3-Phase) Voltage Wattage | Dust Protected Water Resistant | IP55 | 5 VAC | 66 Hz | 600 VAC | 0.001 A | 6 A | 45 Hz | 92.8 mm | Square | 92.8 mm | 60 VAC/DC | 300 VAC/DC | Energy Monitor | DIN Rail | Serial |
