1658620 Series

Catalog

IDC CONNECTOR, IDC RECEPTACLE, FEMALE, 2.54 MM, 2 ROW, 16 CONTACTS, CABLE MOUNT

Part	Contact Finish	Features	Contact Type	Wire Type	Number of Rows [custom]	Row Spacing	Row Spacing	Mounting Type	Pitch	Pitch	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Color	Number of Positions
TE Connectivity AMP Connectors 1658620-3	Gold Gold-Palladium	Feed Through	Forked	Ribbon Cable	2	2.54 mm	0.1 "	Free Hanging (In-Line)	0.1 "	2.54 mm	Receptacle	0.38 µm	15 µin	IDC	Black	16

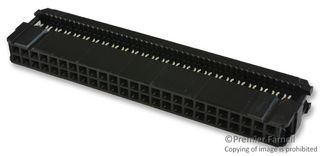

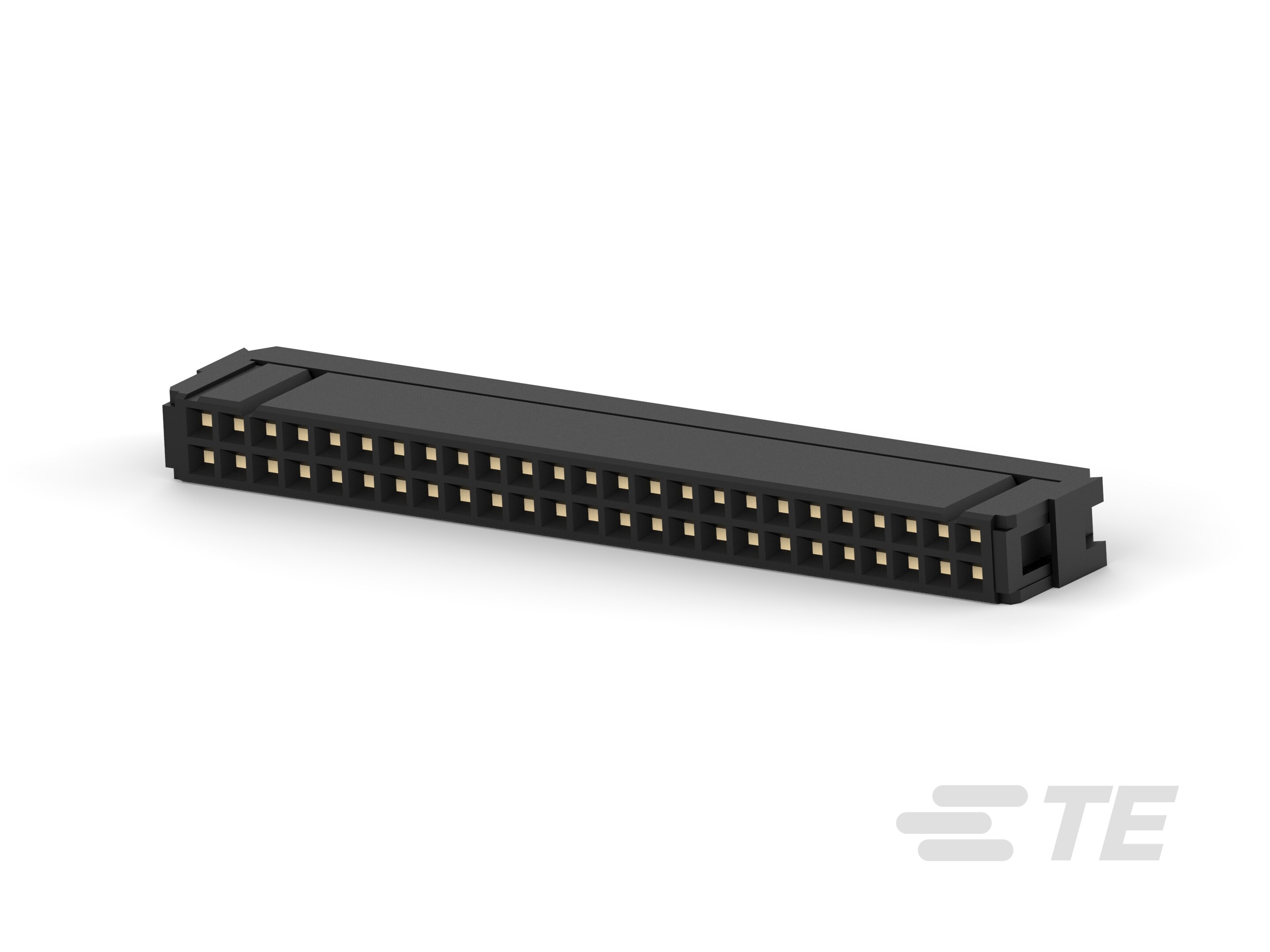

TE Connectivity AMP Connectors 1-1658620-0	Gold Gold-Palladium	Feed Through	Forked	Ribbon Cable	2	2.54 mm	0.1 "	Free Hanging (In-Line)	0.1 "	2.54 mm	Receptacle	0.38 µm	15 µin	IDC	Black	50

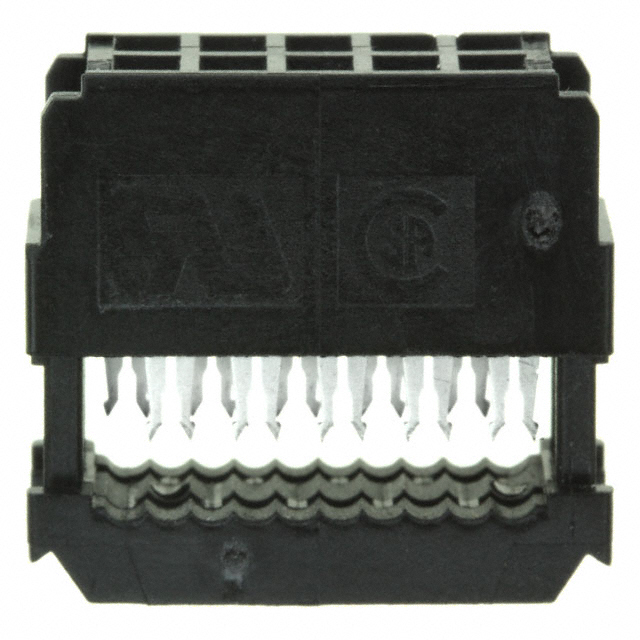

TE Connectivity AMP Connectors 1658620-1	Gold Gold-Palladium	Feed Through	Forked	Ribbon Cable	2	2.54 mm	0.1 "	Free Hanging (In-Line)	0.1 "	2.54 mm	Receptacle	0.38 µm	15 µin	IDC	Black	10

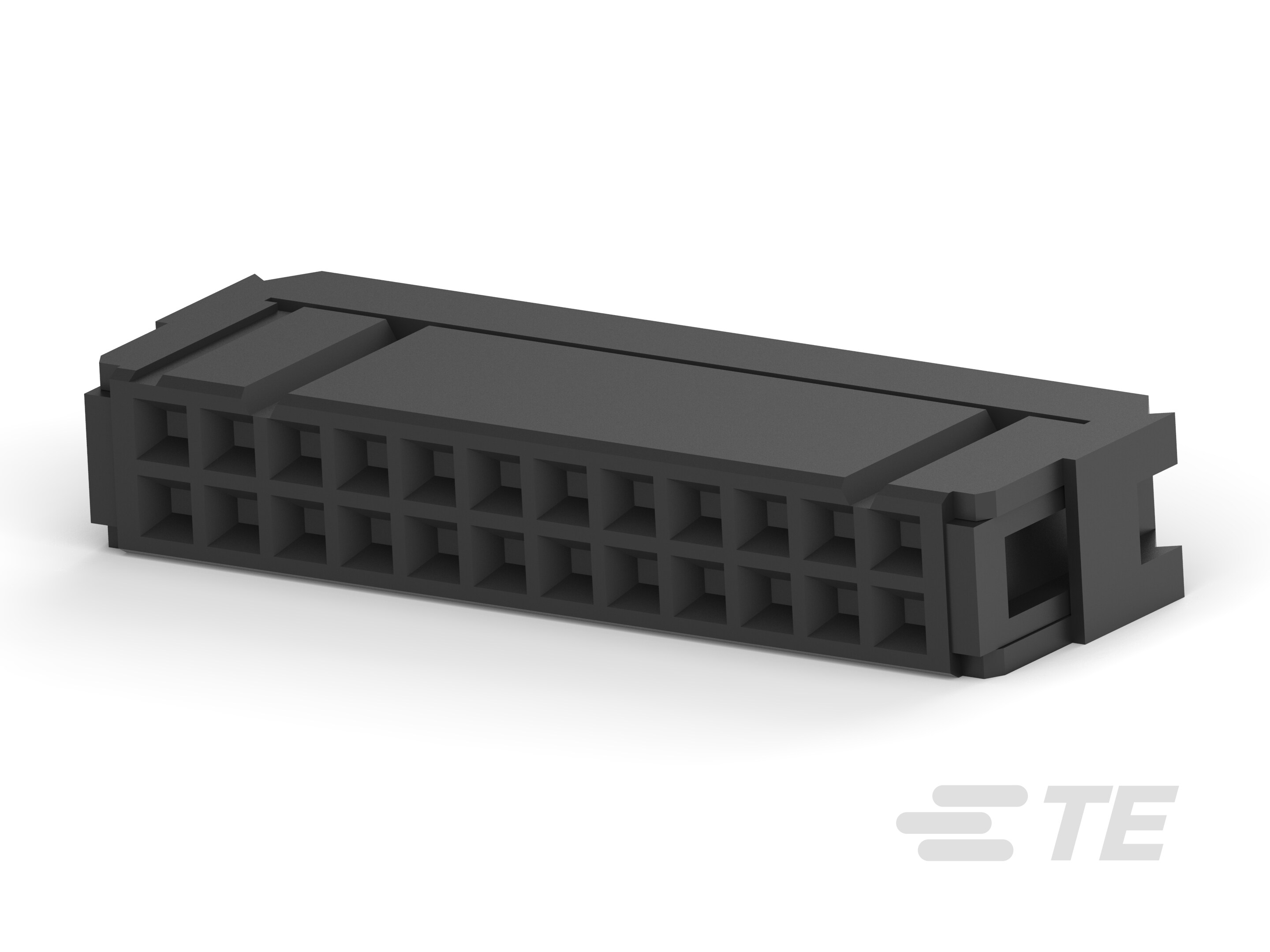

TE Connectivity AMP Connectors 1658620-5	Gold Gold-Palladium	Feed Through	Forked	Ribbon Cable	2	2.54 mm	0.1 "	Free Hanging (In-Line)	0.1 "	2.54 mm	Receptacle	0.38 µm	15 µin	IDC	Black	24

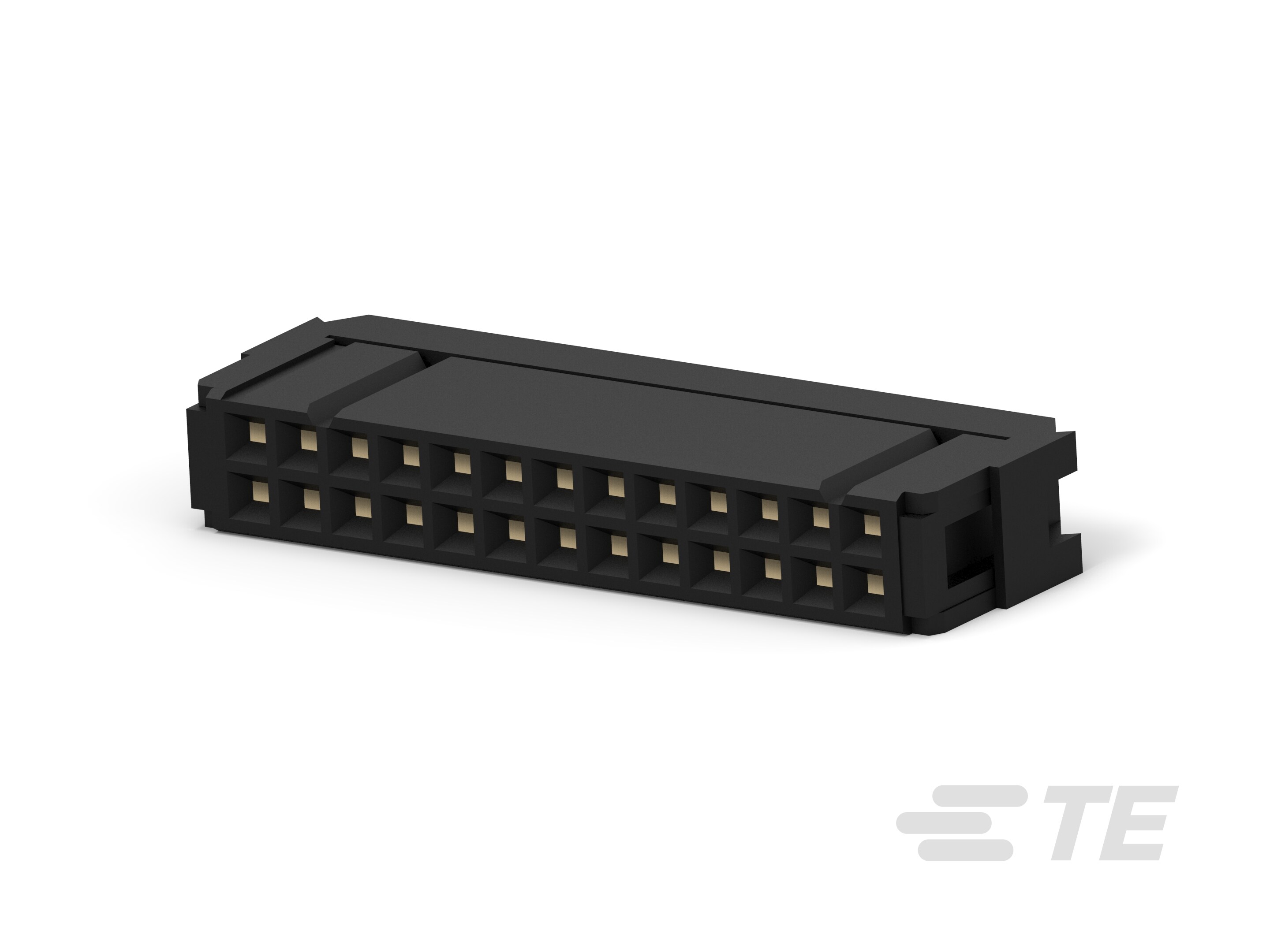

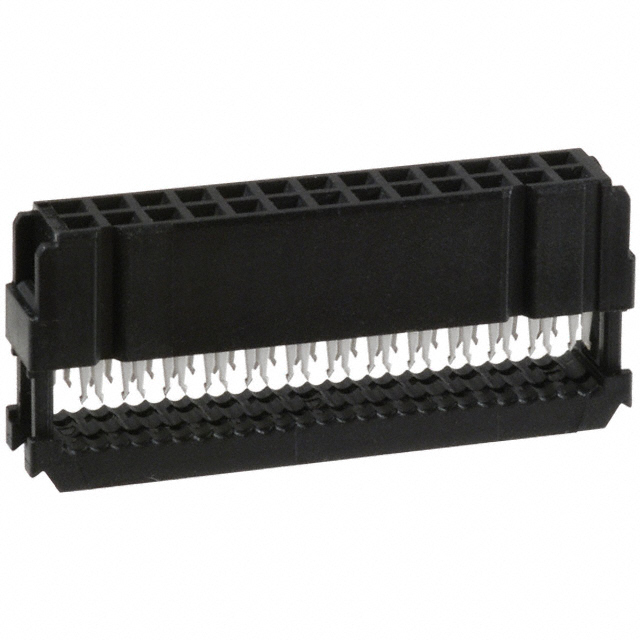

TE Connectivity AMP Connectors 1658620-6	Gold Gold-Palladium	Feed Through	Forked	Ribbon Cable	2	2.54 mm	0.1 "	Free Hanging (In-Line)	0.1 "	2.54 mm	Receptacle	0.38 µm	15 µin	IDC	Black	26
