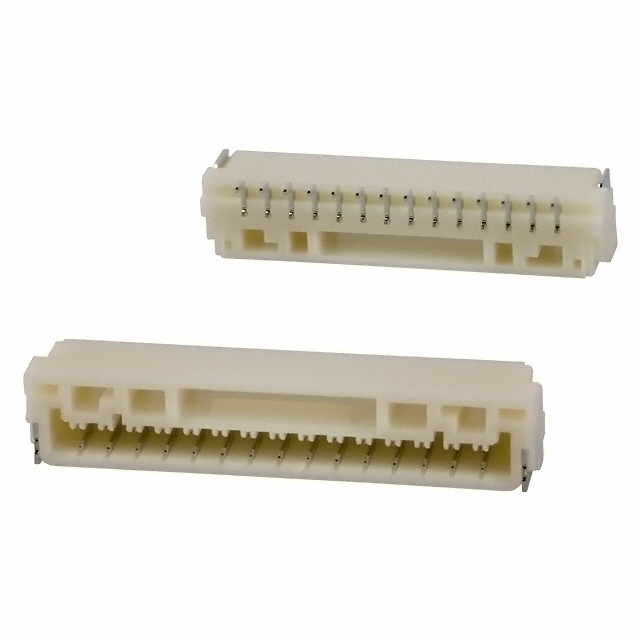

SM15B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 15POS 1.25MM
| Part | Voltage Rating | Contact Shape | Insulation Material | Contact Finish - Post | Connector Type | Number of Positions Loaded | Fastening Type | Pitch - Mating | Pitch - Mating | Number of Rows | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Material Flammability Rating | Shrouding | Style | Contact Type | Insulation Height | Insulation Height | Mounting Type | Features | Insulation Color | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 50 V | Rectangular | Nylon 9T Polyamide (PA9T) | Tin | Header | All | Locking Ramp | 0.049 in | 1.25 mm | 1 | 15 | 85 °C | -25 °C | Solder | UL94 V-0 | Shrouded - 4 Wall | Board to Cable/Wire | Outer Shroud Contact | 4.25 mm | 0.167 " | Right Angle Surface Mount | Solder Retention | Natural | Phosphor Bronze |
