2081202 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN SMA PLUG STR 50 OHM SOLDER
| Part | Center Contact Plating | Connector Style | Shield Termination | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Impedance | Dielectric Material | Contact Termination | Number of Ports | Mating Cycles | Cable Group | Body Material | Frequency - Max [Max] | Body Finish | Connector Type | Housing Color | Center Contact Material | Mounting Type | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

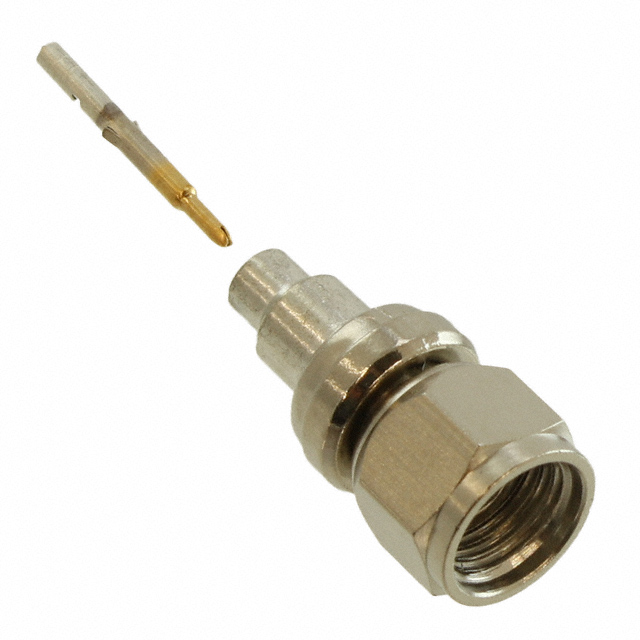

 TE Connectivity Raychem Cable Protection | Gold | SMA | Crimp | -65 ░C | 85 °C | 335 V | 50 Ohms | Polymethylpentene (PMP) | Solder | 1 | 500 | RG-405 (.085" Semi Rigid) | Zinc | 18 GHz | Nickel | Male Pin Plug | Silver | Copper Alloy | Free Hanging (In-Line) | |

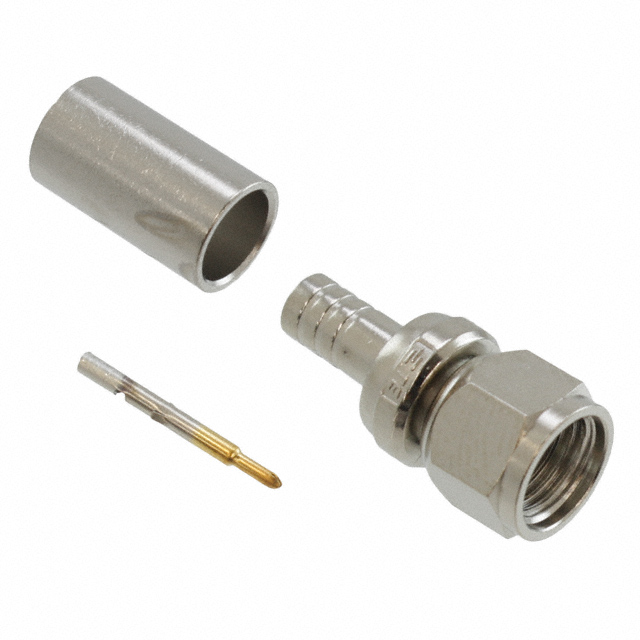

 TE Connectivity Raychem Cable Protection | Gold | SMA | Crimp | -65 ░C | 85 °C | 335 V | 50 Ohms | Polymethylpentene (PMP) | Solder | 1 | 500 | 141 142 223 400 RG-58 | Zinc | 18 GHz | Nickel | Male Pin Plug | Silver | Copper Alloy | Free Hanging (In-Line) | 1 Connector 1 Contact 1 Ferrule |
