97143 Series

Manufacturer: Pflitsch

Catalog

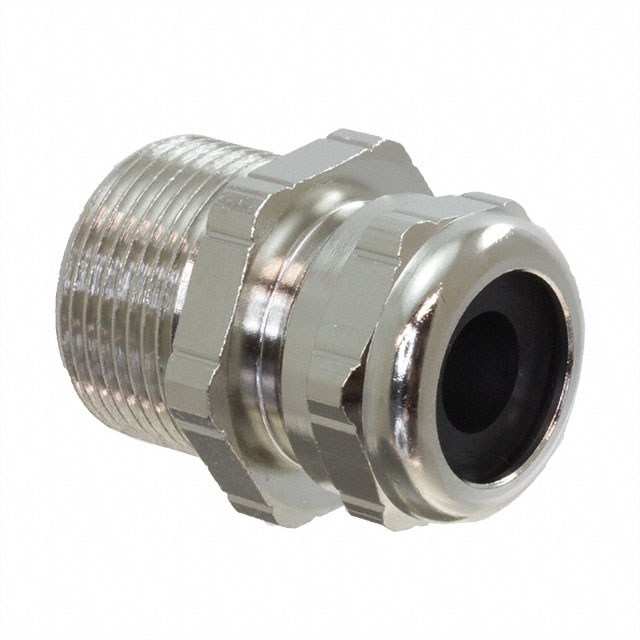

CABLE GLAND 6.6-9.4MM M25 BRASS

Part	Type	Includes	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Color	Ingress Protection	Panel Hole Size	Panel Hole Size	Thread Size	Thread Length	Thread Length
Pflitsch 97143.6	Cable Gland	Sealing Ring	0.37 in	9.4 mm	0.26 in	6.6 mm	-40 C	300 °C	Brass Nickel Plated	Silver	IP68 - Dust Tight Waterproof NEMA 4X	0.98 in	24.9 mm	M25x1.5	0.3 "	7.62 mm
Pflitsch 97143.6/15	Cable Gland	Sealing Ring	0.37 in	9.4 mm	0.26 in	6.6 mm	-40 C	300 °C	Brass Nickel Plated	Silver	IP68 - Dust Tight Waterproof NEMA 4X	0.98 in	24.9 mm	M25x1.5	0.3 "	7.62 mm
