MP8110 Series

Catalog

CURRENT SENSE AMP SINGLE 2.5V TO 40V 8-PIN SOIC T/R

Part	Current - Supply	Amplifier Type	Voltage - Supply Span (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Voltage - Supply Span (Min) [Min]	Number of Circuits	Mounting Type	Supplier Device Package	Current - Input Bias	Voltage - Input Offset	Supplied Contents	Current - Output / Channel [custom]	Board Type	Current - Supply (Main IC)	Output Type	Contents	Channels per IC	Current - Output / Channel	Voltage - Supply, Single/Dual (±) [Min]	Voltage - Supply, Single/Dual (±) [Max]	Utilized IC / Part	Package / Case
Monolithic Power Systems Inc. MP8110DS-LF-Z	12 µA	Current Sense	40 V	85 °C	-40 C	0.154 in	8-SOIC	3.9 mm	2.5 V	1	Surface Mount	8-SOIC	4 nA	1 mV
Monolithic Power Systems Inc. EV8110DS-00A		Current Sense													Board(s)	5 A	Fully Populated	17 µA	Single-Ended	Board(s)	1	5 A	2.5 V	40 V	MP8110

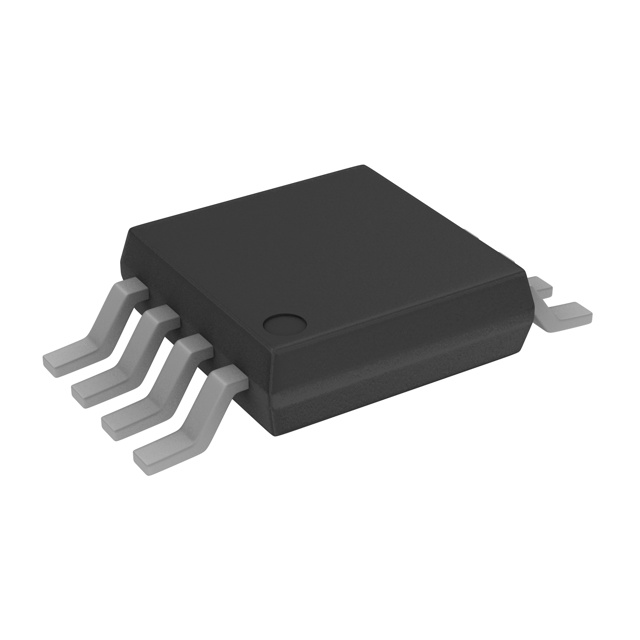

Monolithic Power Systems Inc. MP8110DK-LF-Z	12 µA	Current Sense	40 V	85 °C	-40 C		8-MSOP 8-TSSOP		2.5 V	1	Surface Mount	8-MSOP	4 nA	1 mV												0.118 in 3 mm Width
Monolithic Power Systems Inc. MP8110DK-LF-P	12 µA	Current Sense	40 V	85 °C	-40 C		8-MSOP 8-TSSOP		2.5 V	1	Surface Mount	8-MSOP	4 nA	1 mV												0.118 in 3 mm Width
