851-003 Series
Manufacturer: NorComp Inc.
Beta
⌘K
CONN RCPT MALE 3P GOLD SLDR CUP
| Part | Material Flammability Rating | Color | Primary Material | Insert Material | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Connector Type | Contact Material | Ingress Protection | Shell Finish | Fastening Type | Shell Material | Mounting Feature | Applications | Voltage Rating | Mounting Type | Contact Finish - Mating | Shell Size - Insert | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

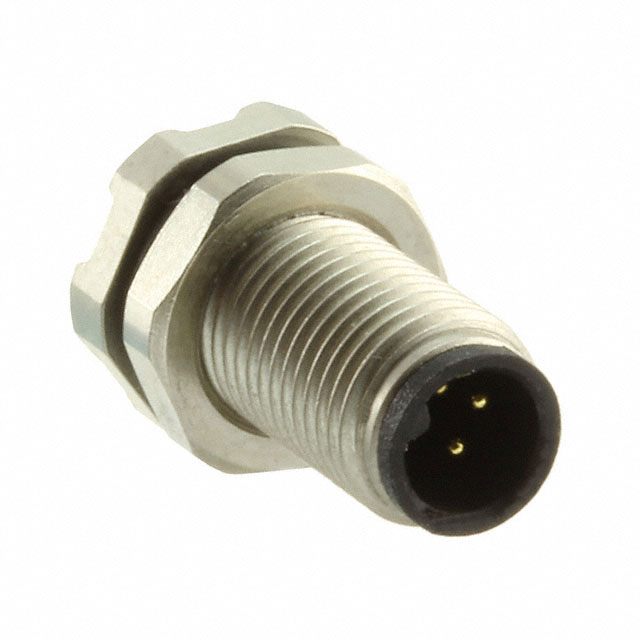

 NorComp Inc. | UL94 V-0 | Silver | Metal | Polybutylene Terephthalate (PBT) | Shielded | 85 °C | -40 C | 0.25 µm | 10 µin | Keyed | Receptacle Male Pins | Brass | IP67 - Dust Tight Waterproof | Nickel | Threaded | Brass | Bulkhead - Front Side Nut | Industrial Medical | 60 VDC | Panel Mount | Gold | M5-3 | |

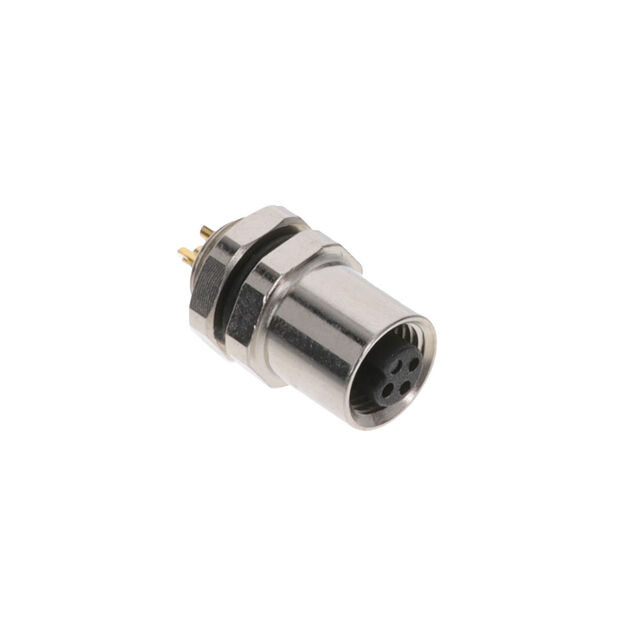

 NorComp Inc. | UL94 V-0 | Silver | Metal | Polybutylene Terephthalate (PBT) | Shielded | 85 °C | -40 C | Keyed | Plug Female Sockets | Brass | IP67 - Dust Tight Waterproof | Nickel | Threaded | Brass | Bulkhead - Rear Side Nut | Industrial Medical | 60 VDC | Panel Mount | Gold | M5-3 | Flash |
