9938 Series
Manufacturer: Belden Inc.
Beta
⌘K

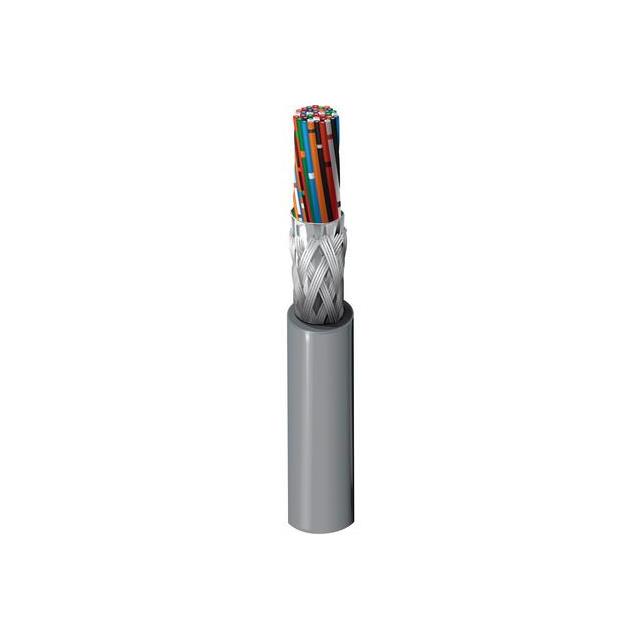

CABLE 37COND 24AWG CHRM SHD
| Part | Shield Coverage | Shield Material | Number of Conductors | Usage | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Features | Conductor Strand [custom] | Conductor Strand [custom] | Length [x] | Length [x] | Cable Type | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness [custom] | Ratings | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 37 | Computer | Copper Tinned | 80 °C | -30 ░C | Chrome | Drain Wire | 7 | 32 AWG | 100 ft | 30.5 m | Multi-Conductor | Braid Foil | 0.476 in | 12.09 mm | Poly-Vinyl Chloride (PVC) | 24 AWG | 1.143 mm | 0.045 in | UL Style 2919 | Foam Polyethylene (FPE) | ||
Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 37 | Computer | Copper Tinned | 80 °C | -30 ░C | Chrome | Drain Wire | 7 | 32 AWG | Multi-Conductor | Braid Foil | 0.476 in | 12.09 mm | Poly-Vinyl Chloride (PVC) | 24 AWG | 1.143 mm | 0.045 in | UL Style 2919 | Foam Polyethylene (FPE) | 152.4 m | 500 ft |
