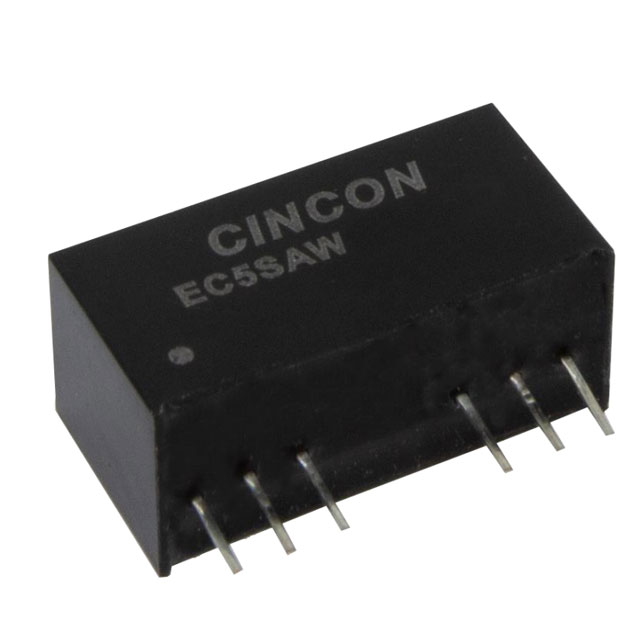

EC5SAW Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 10W 9-36VI 15VO 666MA SIP8

Part	Features	Package / Case	Power (Watts)	Type	Approval Agency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Isolation	Number of Outputs	Control Features	Voltage - Output 2	Efficiency	Current - Output (Max)

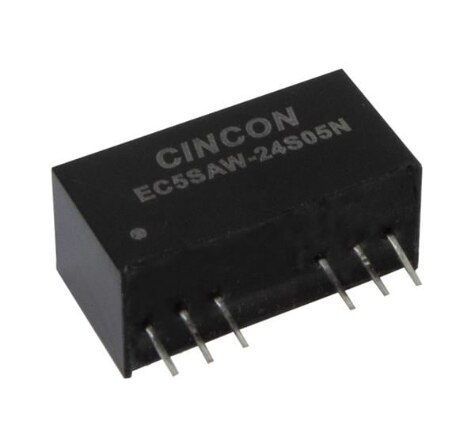

Cincon Electronics Co. LTD EC5SAW-24S15N	Remote On/Off	8-SIP Module 6 Leads	10 W	Isolated Module	CE	9 V	666 mA	105 C	-40 °C	Through Hole	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	15 V	36 V	3000 V	1	Active Low Enable
Cincon Electronics Co. LTD EC5SAW-24D05N	Remote On/Off	8-SIP Module 6 Leads	10 W	Isolated Module	CE	9 V		105 C	-40 °C	Through Hole	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	5 V	36 V	3000 V	2	Active Low Enable	-5 V	85 %	1 A
Cincon Electronics Co. LTD EC5SAW-48D05N	Remote On/Off	8-SIP Module 6 Leads	10 W	Isolated Module	CE	18 V		105 C	-40 °C	Through Hole	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	5 V	75 V	3000 V	2	Active Low Enable	-5 V	85 %	1 A
Cincon Electronics Co. LTD EC5SAW-48S12N	Remote On/Off	8-SIP Module 6 Leads	10 W	Isolated Module	CE	18 V	833 mA	105 C	-40 °C	Through Hole	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	12 V	75 V	3000 V	1	Active Low Enable		88 %
Cincon Electronics Co. LTD EC5SAW-48D15N	Remote On/Off	8-SIP Module 6 Leads	10 W	Isolated Module	CE	18 V		105 C	-40 °C	Through Hole	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	15 V	75 V	3000 V	2	Active Low Enable	-15 V	88 %	333 mA
Cincon Electronics Co. LTD EC5SAW-24S33N	Remote On/Off	8-SIP Module 6 Leads	6.6 W	Isolated Module	CE	9 V	2 A	105 C	-40 °C	Through Hole	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	3.3 V	36 V	3000 V	1	Active Low Enable		81.5 %
Cincon Electronics Co. LTD EC5SAW-48S05N	Remote On/Off	8-SIP Module 6 Leads	10 W	Isolated Module	CE	18 V	2 A	105 C	-40 °C	Through Hole	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	5 V	75 V	3000 V	1	Active Low Enable		85 %
Cincon Electronics Co. LTD EC5SAW-48S15N	Remote On/Off	8-SIP Module 6 Leads	10 W	Isolated Module	CE	18 V	666 mA	105 C	-40 °C	Through Hole	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	15 V	75 V	3000 V	1	Active Low Enable		88 %
Cincon Electronics Co. LTD EC5SAW-24D15N	Remote On/Off	8-SIP Module 6 Leads	10 W	Isolated Module	CE	9 V		105 C	-40 °C	Through Hole	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	15 V	36 V	3000 V	2	Active Low Enable	-15 V	89 %	333 mA
Cincon Electronics Co. LTD EC5SAW-24D12N	Remote On/Off	8-SIP Module 6 Leads	10 W	Isolated Module	CE	9 V		105 C	-40 °C	Through Hole	ITE (Commercial)	0.47 "	9.5 mm	0.87 in	12 mm	0.37 in	22 mm	12 V	36 V	3000 V	2	Active Low Enable	-12 V	89 %	417 mA
