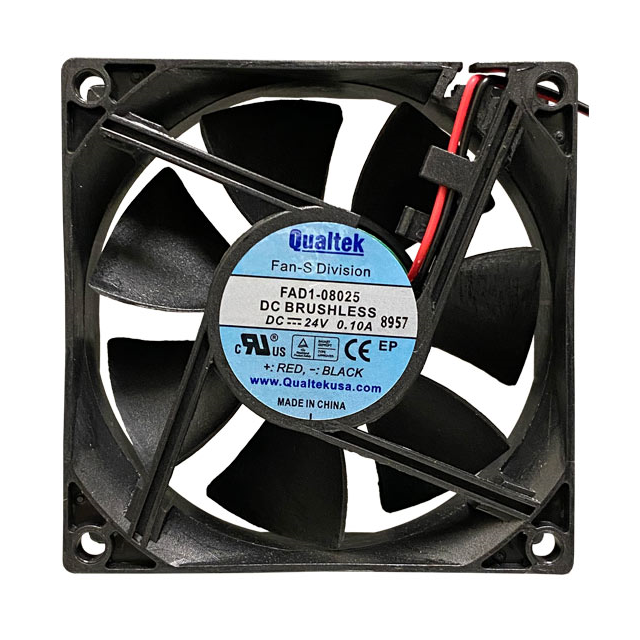

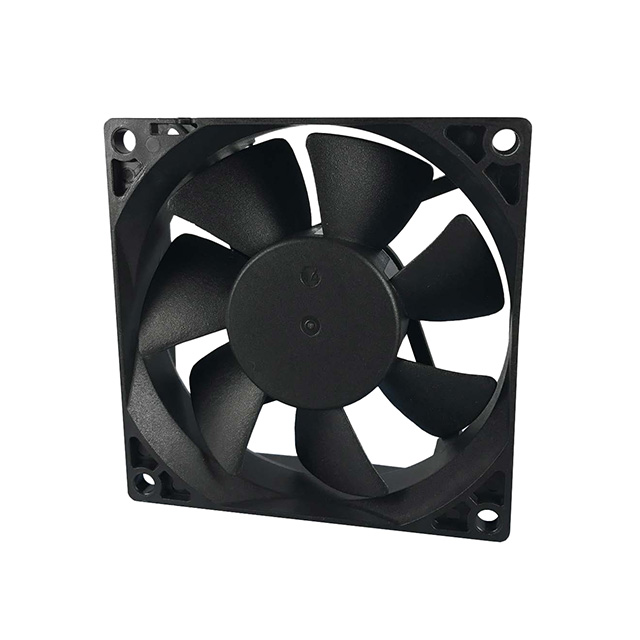

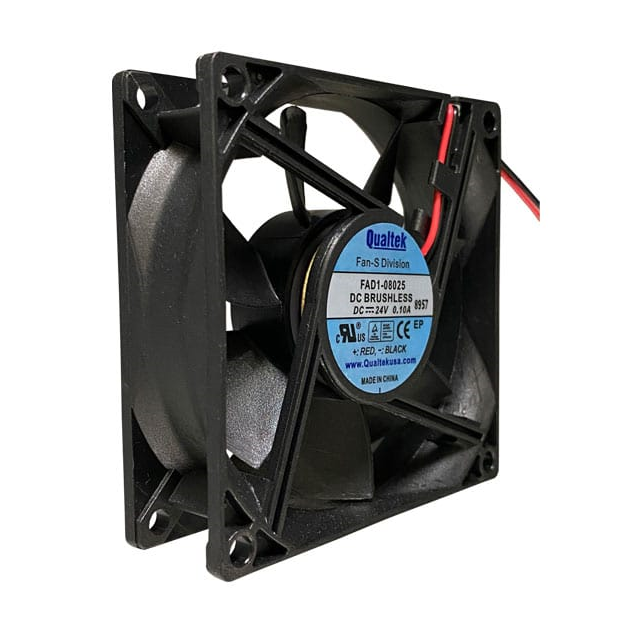

FAD1-08025 Series

Manufacturer: Qualtek

Catalog

DC FANS DC FAN 80X25MM 24VDC SLEEVE WIRE

Part	Approval Agency	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Bearing Type	RPM	Voltage - Rated	Weight	Weight	Noise	Size / Dimension [z]	Size / Dimension [x]	Static Pressure	Static Pressure	Power (Watts)	Fan Type	Lifetime @ Temp.	Current Rating (Amps)	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Air Flow	Air Flow	Weight [custom]	Weight [custom]
Qualtek FAD1-08025DSMW12	CE cURus TUV	25 mm	-10 °C	60 °C	2 Wire Leads	Sleeve	2500 RPM	24 VDC	0.189 lb	85.73 g	28.3 dB(A)	80 mm	80 mm	0.117 in H2O	29.1 Pa	1.44 W	Tubeaxial
Qualtek FAD1-08025CHHW11-A	CE cURus TUV	25 mm	-10 °C	70 °C	2 Wire Leads	Hydrodynamic	3000 RPM	12 VDC			35.8 dB(A)	80 mm	80 mm	0.157 in H2O	39.1 Pa	2.16 W	Tubeaxial	40000 Hrs	0.18 A	Plastic	10.8 VDC	13.2 VDC	Plastic	1.04 mł/min	37.2 CFM	72.12 g	0.159 lb
Qualtek FAD1-08025CBJW11-A	CE cURus TUV	25 mm	-10 °C	70 °C	2 Wire Leads	Ball	3400 RPM	12 VDC			40.5 dB(A)	80 mm	80 mm	0.204 in H2O	51 Pa	3 W	Tubeaxial	70000 Hrs	0.25 A	Plastic	10.8 VDC	13.2 VDC	Plastic	1.22 m³/min	43.6 CFM	72.12 g	0.159 lb
Qualtek FAD1-08025CSKW12	CE cURus TUV	25 mm	-10 °C	60 °C	2 Wire Leads	Sleeve	4200 RPM	12 VDC	0.189 lb	85.73 g	43.4 dB(A)	80 mm	80 mm	0.303 in H2O	75.5 Pa	3.96 W	Tubeaxial		0.33 A	Plastic			Plastic	1.59 mł/min	56.8 CFM
Qualtek FAD1-08025DBHW11-A	CE cURus TUV	25 mm	-10 °C	70 °C	2 Wire Leads	Ball	3000 RPM	24 VDC			35.8 dB(A)	80 mm	80 mm	0.157 in H2O	39.1 Pa	2.4 W	Tubeaxial	70000 Hrs	100 mA	Plastic	21.6 VDC	26.4 VDC	Plastic	1.04 mł/min	37.2 CFM	72.12 g	0.159 lb
Qualtek FAD1-08025DHHW11-A	CE cURus TUV	25 mm	-10 °C	70 °C	2 Wire Leads	Hydrodynamic	3000 RPM	24 VDC			35.8 dB(A)	80 mm	80 mm	0.157 in H2O	39.1 Pa	2.4 W	Tubeaxial	40000 Hrs	100 mA	Plastic	21.6 VDC	26.4 VDC	Plastic	1.04 mł/min	37.2 CFM	72.12 g	0.159 lb
Qualtek FAD1-08025DBMW11-A	CE cURus TUV	25 mm	-10 °C	70 °C	2 Wire Leads	Ball	2500 RPM	24 VDC			30 dB	80 mm	80 mm	0.112 in H2O	27.9 Pa	1.44 W	Tubeaxial	70000 Hrs	60 mA	Plastic	21.6 VDC	26.4 VDC	Plastic	0.854 m³/min	30.5 CFM	72.12 g	0.159 lb
Qualtek FAD1-08025DBHW12-A	CE cURus TUV	25 mm	-10 °C	70 °C	2 Wire Leads	Ball	3000 RPM	24 VDC			35.8 dB(A)	80 mm	80 mm	0.157 in H2O	39.1 Pa	2.4 W	Tubeaxial	70000 Hrs	100 mA	Plastic	21.6 VDC	26.4 VDC	Plastic	1.04 mł/min	37.2 CFM	72.12 g	0.159 lb
Qualtek FAD1-08025DBJW12-A	CE cURus TUV	25 mm	-10 °C	70 °C	2 Wire Leads	Ball	3600 RPM	24 VDC			42 dB	80 mm	80 mm	0.216 in H2O	53.9 Pa	3.84 W	Tubeaxial	70000 Hrs		Plastic	21.6 VDC	26.4 VDC	Plastic	1.26 m³/min	45 CFM	72.12 g	0.159 lb
Qualtek FAD1-08025CBAW11-A	CE cURus TUV	25 mm	-10 °C	70 °C	2 Wire Leads	Ball	1600 RPM	12 VDC			18.3 dB(A)	80 mm	80 mm	0.046 in H2O	11.4 Pa	720 mW	Tubeaxial	70000 Hrs	60 mA	Plastic	10.8 VDC	13.2 VDC	Plastic	0.554 mł/min	19.8 CFM	72.12 g	0.159 lb
