PT6101 Series

Catalog

DC DC CONVERTER 5V

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Efficiency	Package / Case	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Number of Outputs	Current - Output (Max) [Max]	Voltage - Output 1

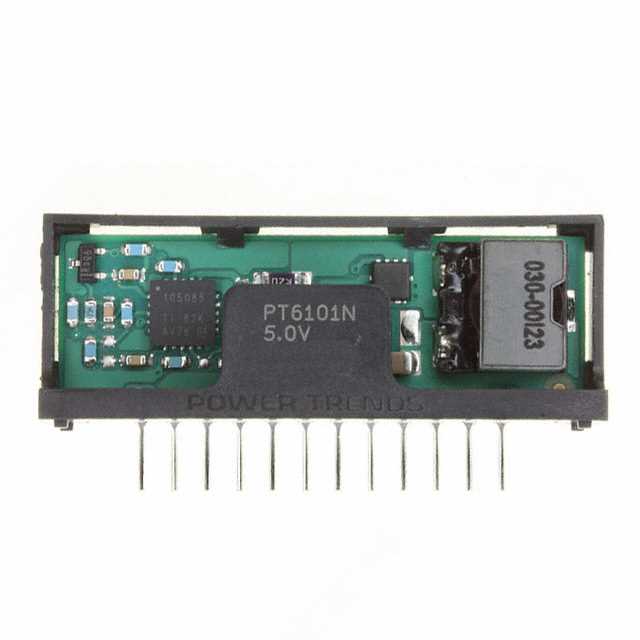

Texas Instruments PT6101N	Non-Isolated PoL Module	85 °C	-40 °C	ITE (Commercial)	89 %	12-SIP Module	38 V	9 V	Through Hole	1	1 A	5 V
Texas Instruments PT6101G	Non-Isolated PoL Module	85 °C	-40 °C	ITE (Commercial)	89 %	12-SIP Module	38 V	9 V	Through Hole Right Angle	1	1 A	5 V
Texas Instruments PT6101R	Non-Isolated PoL Module	85 °C	-40 °C	ITE (Commercial)	89 %	12-SIP Module	38 V	9 V	Through Hole	1	1 A	5 V

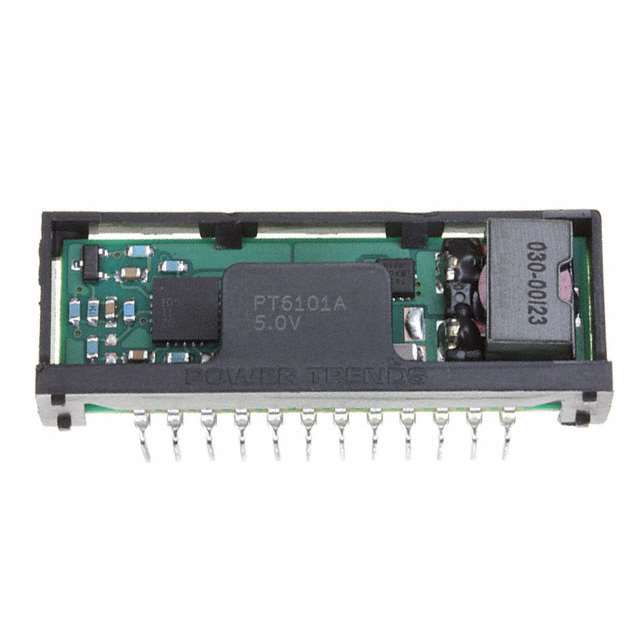

Texas Instruments PT6101A	Non-Isolated PoL Module	85 °C	-40 °C	ITE (Commercial)	89 %	12-SIP Module	38 V	9 V	Through Hole Right Angle	1	1 A	5 V

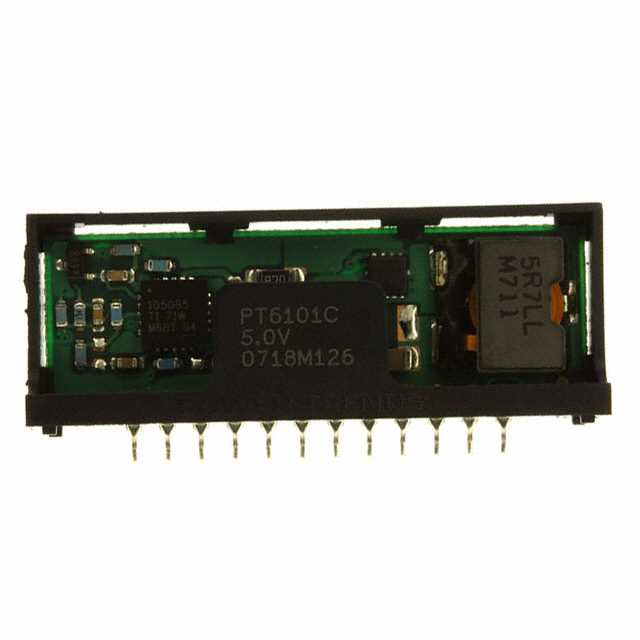

Texas Instruments PT6101C	Non-Isolated PoL Module	85 °C	-40 °C	ITE (Commercial)	89 %	12-SIP SMD Module	38 V	9 V	Surface Mount	1	1 A	5 V
