430-10 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN SPRING TARGET 22POS SLD PCB

Part	Contact Finish	Mounting Type	Connector Type	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Material	Number of Rows [custom]	Number of Contacts	Number of Contacts [custom]	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 430-10-222-00-240000	Gold	Solder Cup Through Hole	Mating Target	0.1 "	2.54 mm	0.25 Ám	10 Áin	2.54 mm	0.1 "	Brass Alloy	2	22
Mill-Max Manufacturing Corp. 430-10-240-00-240000	Gold	Solder Cup Through Hole	Mating Target	0.1 "	2.54 mm	0.25 Ám	10 Áin	2.54 mm	0.1 "	Brass Alloy	2	40
Mill-Max Manufacturing Corp. 430-10-264-00-240000	Gold	Solder Cup Through Hole	Mating Target	0.1 "	2.54 mm	0.25 Ám	10 Áin	2.54 mm	0.1 "	Brass Alloy	2	64
Mill-Max Manufacturing Corp. 430-10-226-00-240000	Gold	Solder Cup Through Hole	Mating Target	0.1 "	2.54 mm	0.25 Ám	10 Áin	2.54 mm	0.1 "	Brass Alloy	2	26
Mill-Max Manufacturing Corp. 430-10-242-00-240000	Gold	Solder Cup Through Hole	Mating Target	0.1 "	2.54 mm	0.25 Ám	10 Áin	2.54 mm	0.1 "	Brass Alloy	2		42

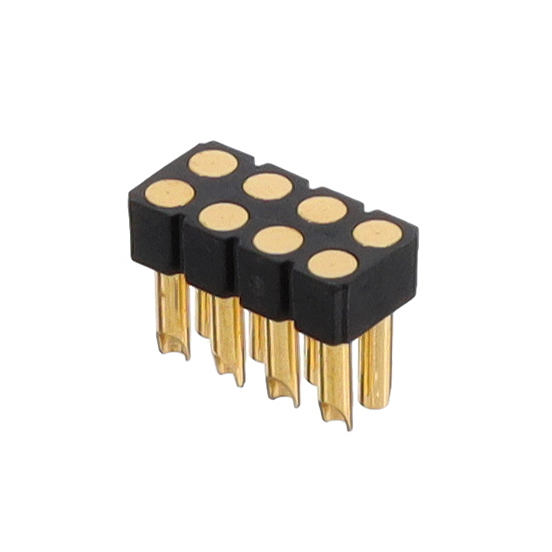

Mill-Max Manufacturing Corp. 430-10-208-00-240000	Gold	Solder Cup Through Hole	Mating Target	0.1 "	2.54 mm	0.25 Ám	10 Áin	2.54 mm	0.1 "	Brass Alloy	2	8
Mill-Max Manufacturing Corp. 430-10-248-00-240000	Gold	Solder Cup Through Hole	Mating Target	0.1 "	2.54 mm	0.25 Ám	10 Áin	2.54 mm	0.1 "	Brass Alloy	2	48

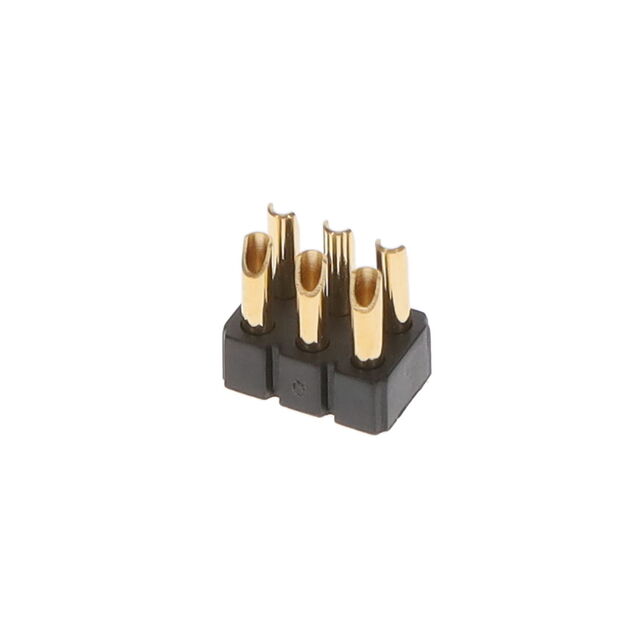

Mill-Max Manufacturing Corp. 430-10-206-00-240000	Gold	Solder Cup Through Hole	Mating Target	0.1 "	2.54 mm	0.25 Ám	10 Áin	2.54 mm	0.1 "	Brass Alloy	2	6
Mill-Max Manufacturing Corp. 430-10-262-00-240000	Gold	Solder Cup Through Hole	Mating Target	0.1 "	2.54 mm	0.25 Ám	10 Áin	2.54 mm	0.1 "	Brass Alloy	2			62
Mill-Max Manufacturing Corp. 430-10-238-00-240000	Gold	Solder Cup Through Hole	Mating Target	0.1 "	2.54 mm	0.25 Ám	10 Áin	2.54 mm	0.1 "	Brass Alloy	2	38
