HSD-04C Series
Manufacturer: Adam Tech
Beta
⌘K
CONN FAKRA HIGH SPEED DATA 4POS
| Part | Mating Cycles | Body Material | Center Contact Plating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Shield Termination | Mounting Type | Center Contact Material | Connector Style | Contact Termination | Number of Ports | Frequency - Max [Max] | Fastening Type | Features | Connector Type | Impedance | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

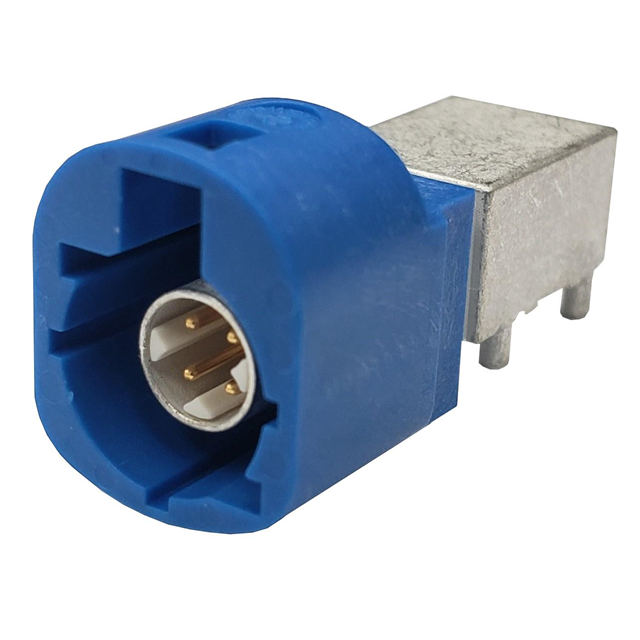

 Adam Tech | 25 | Zinc Alloy | Gold | Polyamide (PA) Nylon | -40 C | 105 ░C | Tin | Solder | Right Angle Through Hole | Brass | Fakra HSD® Quadraxial | Solder | 1 | 2 GHz | Latch Lock | Code C | Plug Male Pin | 100 Ohms | Blue |

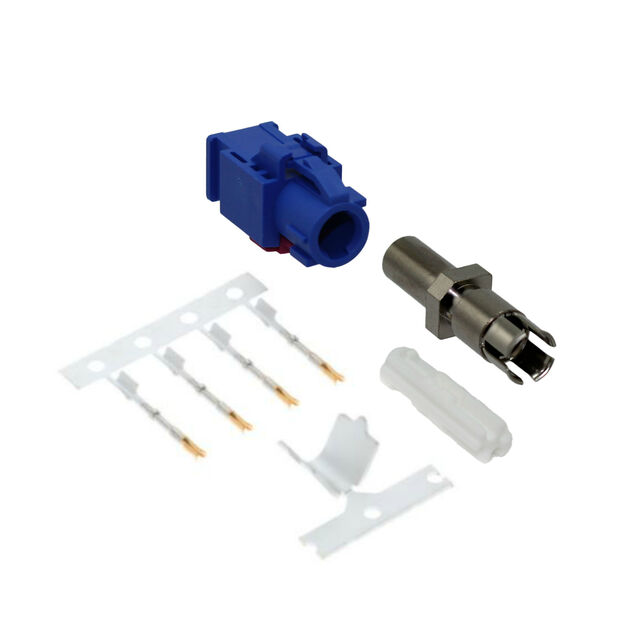

 Adam Tech | 25 | Brass | Gold | Polybutylene Terephthalate (PBT) | -40 C | 105 ░C | Crimp | Free Hanging (In-Line) | Phosphor Bronze | Fakra HSD® Quadraxial | Solder | 1 | 2 GHz | Latch Lock | Code C | Female Socket Jack | 100 Ohms | Blue | |
 Adam Tech | 25 | Zinc Alloy | Gold | Polyamide (PA) Nylon | -40 C | 105 ░C | Tin | Solder | Right Angle Through Hole | Brass | Fakra HSD® Quadraxial | Solder | 1 | 2 GHz | Latch Lock | Code C | Plug Male Pin | 100 Ohms | Blue |

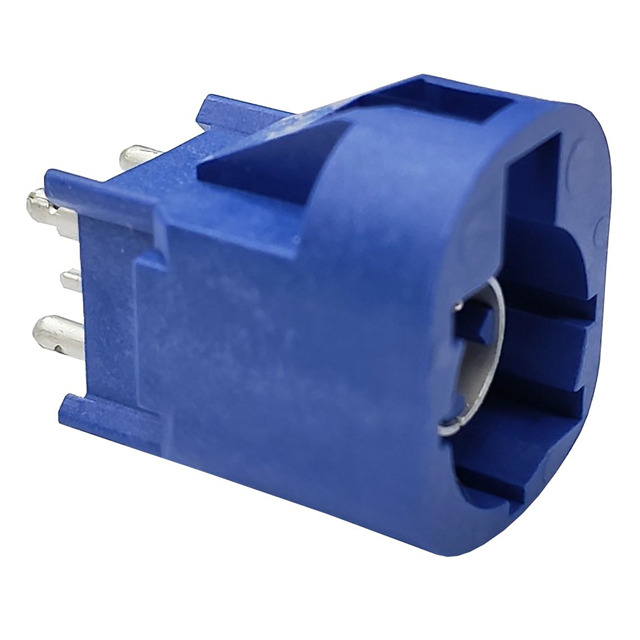

 Adam Tech | 25 | Brass | Gold | Polyamide (PA) Nylon | -40 C | 105 ░C | Solder | Through Hole | Brass | Fakra HSD® Quadraxial | Solder | 1 | 2 GHz | Latch Lock | Code C | Plug Male Pin | 100 Ohms | Blue |
