TW8816B3 Series

Highly Integrated LCD Controller with On-Chip MCU & CCFL Controller

Manufacturer: Renesas Electronics Corporation

Catalog

Highly Integrated LCD Controller with On-Chip MCU & CCFL Controller

Part	Applications	Mounting Type	Function	Standards	Supplier Device Package	Control Interface	Package / Case	Type	Utilized IC / Part	Contents	Supplied Contents
Renesas Electronics Corporation TW8816-LB3-CR	Consumer Video	Surface Mount	Processor	NTSC Pal SECAM	128-LQFP 14x20	GPIO I2C Serial SPI	128-LQFP
Renesas Electronics Corporation TW8816-LB3-GR	Consumer Video	Surface Mount	Processor	NTSC Pal SECAM	128-LQFP 14x20	GPIO I2C Serial SPI	128-LQFP
Renesas Electronics Corporation TW8816-LB3-GR-EVAL			LCD Controller					Display	TW8816	Board(s)	Board(s)
Renesas Electronics Corporation TW8816-LB2-GRS	Consumer Video	Surface Mount	Processor	NTSC Pal SECAM	80-TQFP (12x12)	GPIO I2C Serial SPI	80-TQFP
Renesas Electronics Corporation TW8816-BB3-GRT	Consumer Video	Surface Mount	Processor	NTSC Pal SECAM	144-TFBGA (7x7)	GPIO I2C Serial SPI	144-TFBGA
Renesas Electronics Corporation TW8816-LB3-GRS	Consumer Video	Surface Mount	Processor	NTSC Pal SECAM	128-LQFP 14x20	GPIO I2C Serial SPI	128-LQFP
Renesas Electronics Corporation TW8816-LB3-GRST	Consumer Video	Surface Mount	Processor	NTSC Pal SECAM	128-LQFP 14x20	GPIO I2C Serial SPI	128-LQFP
Renesas Electronics Corporation TW8816-BB3-GR	Consumer Video	Surface Mount	Processor	NTSC Pal SECAM	144-TFBGA (7x7)	GPIO I2C Serial SPI	144-TFBGA
Renesas Electronics Corporation TW8816-LA3-GRST	Consumer Video	Surface Mount	Processor	NTSC Pal SECAM	128-LQFP 14x20	GPIO I2C Serial SPI	128-LQFP

Catalog

Highly Integrated LCD Controller with On-Chip MCU & CCFL Controller

Description

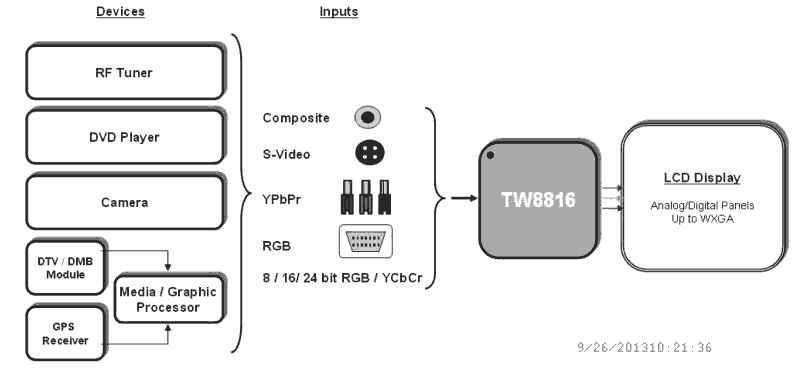

The TW8816B3 is a highly integrated multi-purpose LCD display solution for both analog and digital panels. To reduce BOM cost, TW8816B3 integrates an 8-bit MCU and a CCFL or LED controller. Through multiple input ports, TW8816B3 can directly display video and graphic content from a variety of devices including TV Tuners, DVD players, back-up cameras, DTV/DMB receivers, and navigation/GPS receivers.
