9453-1583 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA / STRAIGHT JACK FEMALE SOLDE
| Part | Body Material | Voltage Rating | Center Contact Plating | Body Finish | Mating Cycles | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Ports | Frequency - Max [Max] | Connector Type | Housing Color | Contact Termination | Shield Termination | Connector Style | Fastening Type | Center Contact Material | Impedance | Mounting Type | Mounting Feature | Includes | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

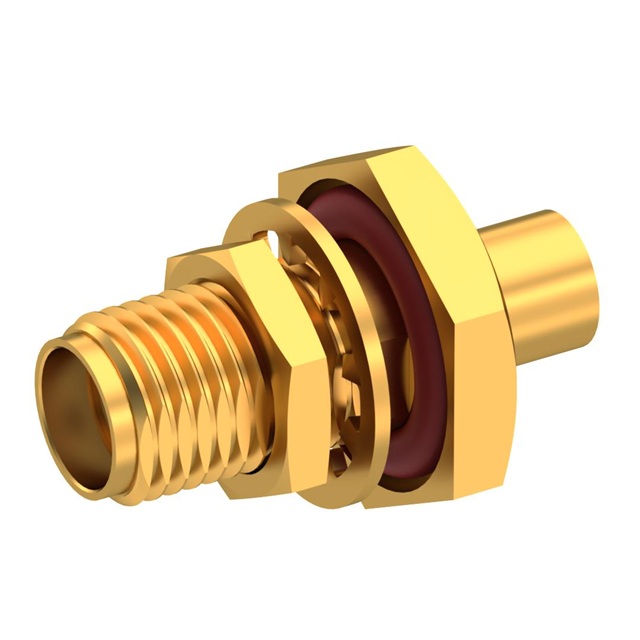

 Radiall USA, Inc. | Stainless Steel | 500 V | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 165 °C | 1 | 18 GHz | Female Socket Jack | Gold | Solder | Solder | SMA | Threaded | Beryllium Copper | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | ||

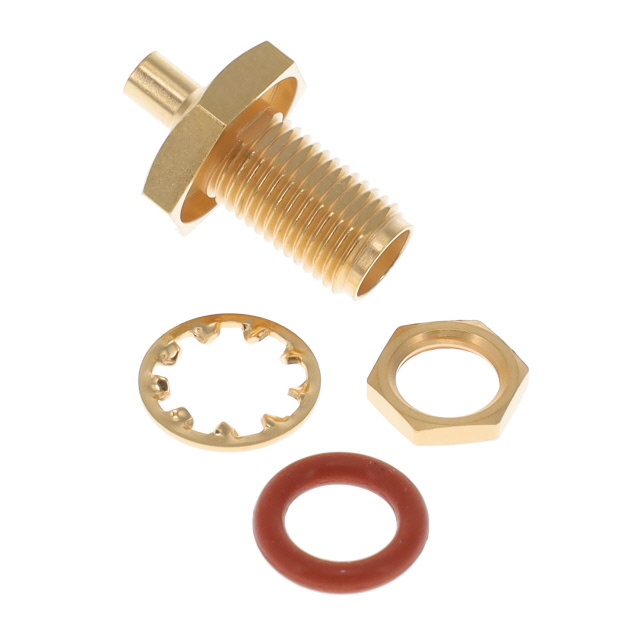

 Radiall USA, Inc. | Stainless Steel | 350 VDC | Gold | Gold | 500 | Polytetrafluoroethylene (PTFE) | -65 ░C | 105 ░C | 1 | 18 GHz | Female Socket Jack | Gold | Solder | Solder | SMA | Threaded | Beryllium Copper | 50 Ohms | Panel Mount | Bulkhead - Front Side Nut | 1 Connector 1 Lockwasher 1 Nut | RG-405 (.085" Semi Rigid) |
