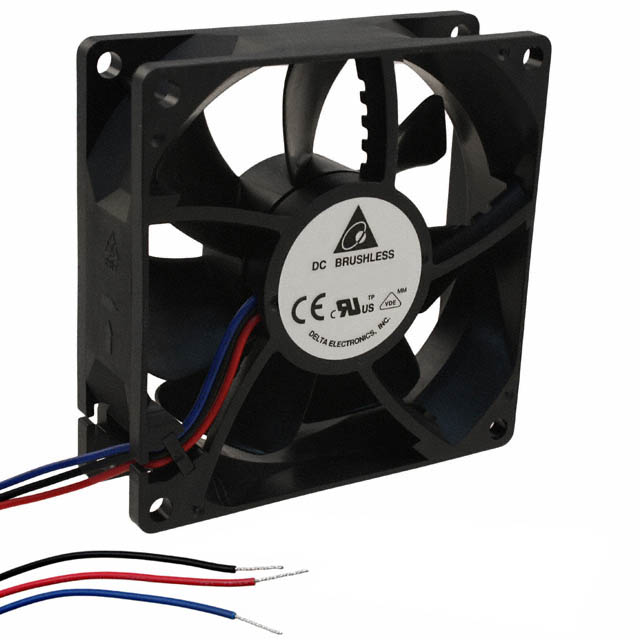

QFR0812 Series

Catalog

FAN AXIAL 80X38MM 12VDC WIRE

Part	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Frame	Bearing Type	Termination	Size / Dimension [z]	Size / Dimension [x]	Width [y]	Operating Temperature [Max]	Operating Temperature [Min]	Fan Type	Air Flow	Air Flow	Static Pressure	Static Pressure	Features	Approval Agency	Weight	Weight	RPM	Noise	Voltage - Rated	Power (Watts)	Lifetime @ Temp.	Weight [custom]	Weight [custom]	Static Pressure
Delta Electronics QFR0812UHEYDW	Plastic	10.8 VDC	13.2 VDC	1.15 A	Plastic	Ball	4 Wire Leads	80 mm	80 mm	38 mm	70 °C	-10 °C	Tubeaxial	105.2 CFM	2.95 m³/min	1.335 in H2O	332.5 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CE cURus VDE	0.353 lb	160.12 g	9000 RPM	60 dB(A)	12 VDC	13.8 W
Delta Electronics QFR0812HH-F00	Plastic	5 VDC	13.2 VDC		Plastic	Ball	3 Wire Leads	80 mm	80 mm	25.4 mm	70 °C	-10 °C	Tubeaxial	41.6 CFM	1.16 mł/min	47.1 Pa		Locked Rotor Protection Speed Sensor (Tach)	CE cURus VDE			3300 RPM	36.4 dB(A)	12 VDC	1.92 W	70000 Hrs	0.191 lb	86.64 g	0.189 in H2O

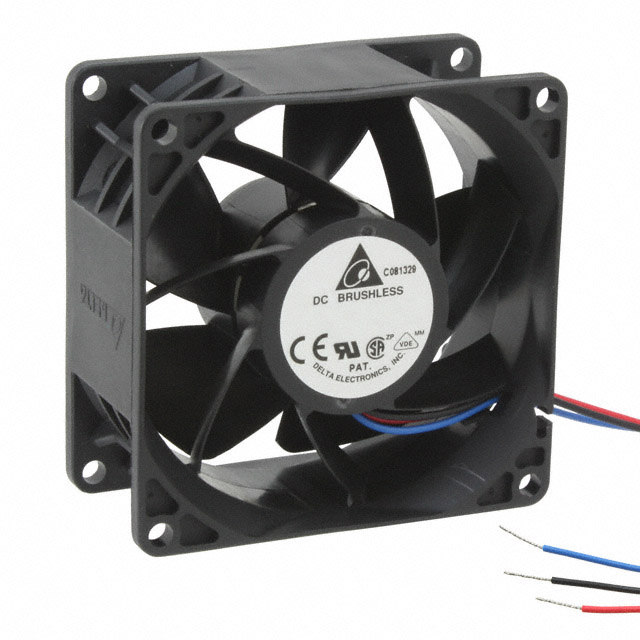

Delta Electronics QFR0812UHE-F00	Plastic	7 V	13.2 VDC	1.15 A	Plastic	Ball	3 Wire Leads	80 mm	80 mm	38 mm	70 °C	-10 °C	Tubeaxial	105.2 CFM	2.95 m³/min	1.335 in H2O	332.5 Pa	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	0.353 lb	160.12 g	9000 RPM	60 dB(A)	12 VDC	13.8 W	40 °C 50000 Hrs

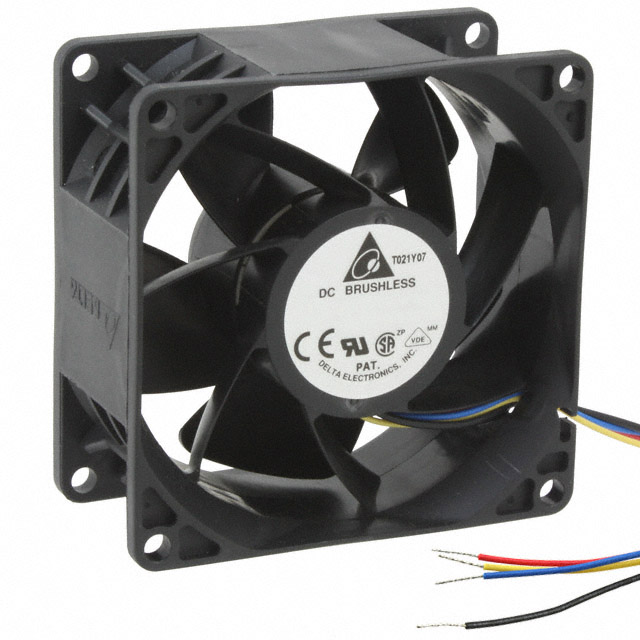

Delta Electronics QFR0812UHE-SP01	Plastic				Plastic	Ball		80 mm	80 mm	38 mm			Tubeaxial											12 VDC
Delta Electronics QFR0812SH-F00	Plastic	5 VDC	13.2 VDC	0.33 A	Plastic	Ball	3 Wire Leads	80 mm	80 mm	25.4 mm	70 °C	-10 °C	Tubeaxial	54.6 CFM	1.53 mł/min	82.4 Pa		Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE			4300 RPM	41.2 dB(A)	12 VDC	3.96 W	70000 Hrs	0.254 lb	115.21 g	0.331 in H2O
Delta Electronics QFR0812VH-F00	Plastic	5 VDC	13.2 VDC	0.21 A	Plastic	Ball	3 Wire Leads	80 mm	80 mm	25.4 mm			Tubeaxial	47.8 CFM	1.34 m³/min	62.5 Pa		Speed Sensor (Tach)	CE CSA UL VDE	0.195 lb	88.45 g	3800 RPM	38.3 dB(A)	12 VDC	2.52 W				0.251 in H2O

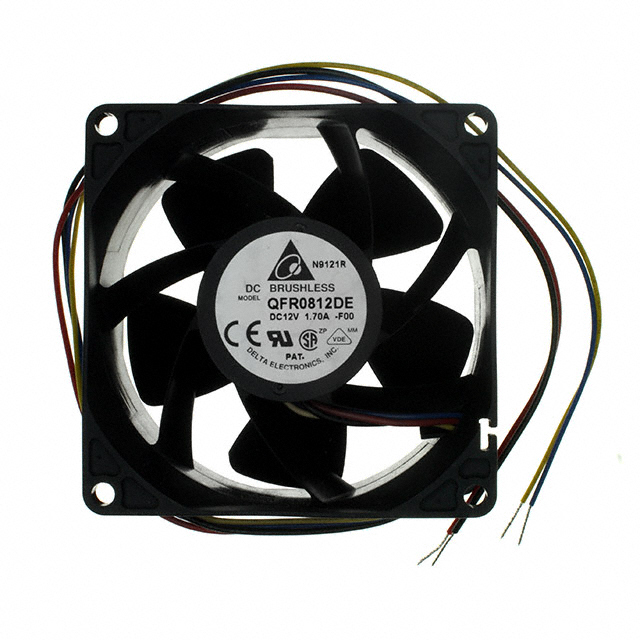

Delta Electronics QFR0812DE-F00	Plastic	10.8 VDC	13.2 VDC	1.15 A	Plastic	Ball	4 Wire Leads	80 mm	80 mm	38 mm	60 °C	-10 °C	Tubeaxial	105.2 CFM	2.95 m³/min	1.335 in H2O	332.5 Pa	Locked Rotor Protection PWM Control Speed Sensor (Tach)	CE CSA UL VDE	0.353 lb	160.12 g	9000 RPM	60 dB(A)	12 VDC	13.8 W	40 °C 50000 Hrs

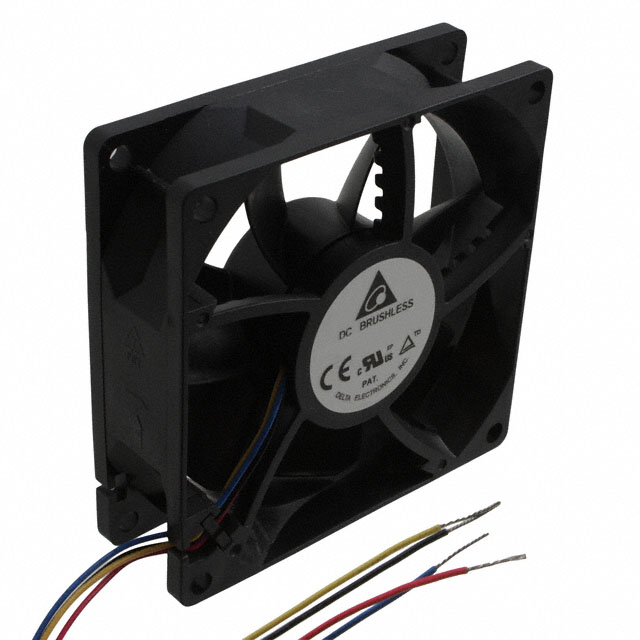

Delta Electronics QFR0812UH-CX14	Plastic	10.8 VDC	12.6 VDC	0.55 A	Plastic	Ball	4 Wire Leads	80 mm	80 mm	25.4 mm	60 °C	-10 °C	Tubeaxial	70.2 CFM	1.97 m³/min	137.2 Pa		Locked Rotor Protection PWM Control Speed Sensor (Tach)	CE cURus VDE	0.195 lb	88.45 g	5600 RPM	50.5 dB(A)	12 VDC	6.6 W	70000 Hrs			0.551 in H2O
