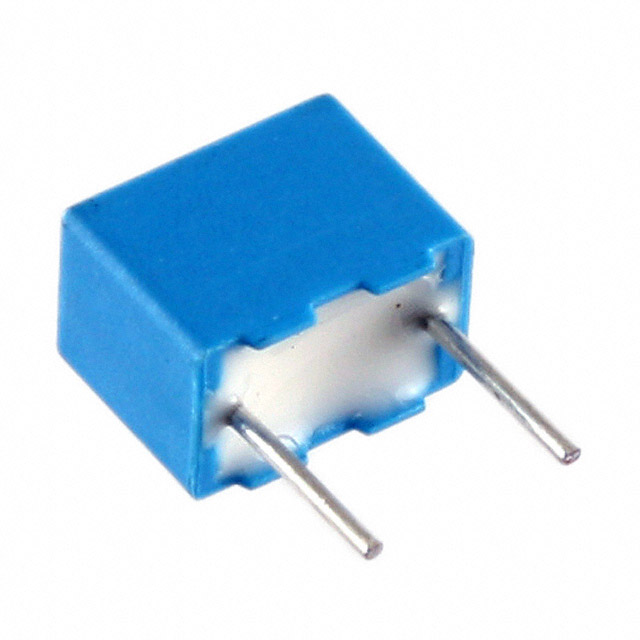

PFR5 Series
Manufacturer: KEMET
Beta
⌘K

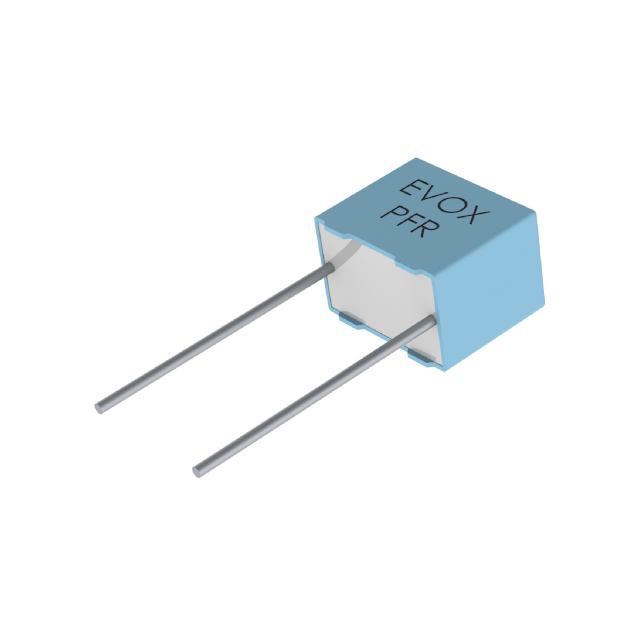

GENERAL PURPOSE FILM CAPACITOR, FILM / FOIL PP, RADIAL BOX - 2 PIN, 470 PF, ± 5%, 63 V, 100 V
| Part | Tolerance | Dielectric Material | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Mounting Type | Package / Case | Voltage Rating - AC | Height - Seated (Max) | Height - Seated (Max) [Max] | Lead Spacing | Lead Spacing | Applications | Termination | Capacitance | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 5 % | Polypropylene (PP) | 7.2 mm | 0.283 " | 4.5 mm | 0.177 " | Through Hole | Radial | 63 V | 6 mm | 0.236 " | 0.197 " | 5 mm | DV/DT High Frequency High Pulse Switching | PC Pins | 470 pF | 100 °C | -55 C | 100 V | |
 KEMET | 5 % | Polypropylene (PP) | 7.2 mm | 0.283 " | 4.5 mm | 0.177 " | Through Hole | Radial | 160 V | 6 mm | 0.236 " | 0.197 " | 5 mm | DV/DT High Frequency High Pulse Switching | PC Pins | 150 pF | 100 °C | -55 C | 250 V | |
5 % | Polypropylene (PP) | 7.2 mm | 0.283 " | 4.5 mm | 0.177 " | Through Hole | Radial | 250 V | 6 mm | 0.236 " | 0.197 " | 5 mm | DV/DT High Frequency High Pulse Switching | PC Pins | 220 pF | 100 °C | -55 C | 1 kVDC | 1 kV | |
 KEMET | 5 % | Polypropylene (PP) | 7.2 mm | 0.283 " | 4.5 mm | 0.177 " | Through Hole | Radial | 40 V | 6 mm | 0.236 " | 0.197 " | 5 mm | DV/DT High Frequency High Pulse Switching | PC Pins | 0.001 µF | 100 °C | -55 C | 63 VDC | |
5 % | Polypropylene (PP) | 7.2 mm | 0.283 " | 4.5 mm | 0.177 " | Through Hole | Radial | 40 V | 6 mm | 0.236 " | 0.197 " | 5 mm | DV/DT High Frequency High Pulse Switching | PC Pins | 820 pF | 100 °C | -55 C | 63 VDC | ||
KEMET | 2.5 % | Polypropylene (PP) | 7.2 mm | 0.283 " | 4.5 mm | 0.177 " | Through Hole | Radial | 63 V | 6 mm | 0.236 " | 0.197 " | 5 mm | DV/DT High Frequency High Pulse Switching | PC Pins | 470 pF | 100 °C | -55 C | 100 V | |
KEMET | 1 % | Polypropylene (PP) | 7.2 mm | 0.283 " | 4.5 mm | 0.177 " | Through Hole | Radial | 40 V | 6 mm | 0.236 " | 0.197 " | 5 mm | DV/DT High Frequency High Pulse Switching | PC Pins | 0.0047 µF | 100 °C | -55 C | 63 VDC | |
KEMET | 5 % | Polypropylene (PP) | 7.2 mm | 0.283 " | 4.5 mm | 0.177 " | Through Hole | Radial | 40 V | 6 mm | 0.236 " | 0.197 " | 5 mm | DV/DT High Frequency High Pulse Switching | PC Pins | 470 pF | 100 °C | -55 C | 63 VDC | |
 KEMET | 5 % | Polypropylene (PP) | 7.2 mm | 0.283 " | 4.5 mm | 0.177 " | Through Hole | Radial | 63 V | 6 mm | 0.236 " | 0.197 " | 5 mm | DV/DT High Frequency High Pulse Switching | PC Pins | 100 pF | 100 °C | -55 C | 100 V | |
KEMET | 5 % | Polypropylene (PP) | 7.2 mm | 0.283 " | 4.5 mm | 0.177 " | Through Hole | Radial | 40 V | 6 mm | 0.236 " | 0.197 " | 5 mm | DV/DT High Frequency High Pulse Switching | PC Pins | 100 pF | 100 °C | -55 C | 63 VDC |
