DRM-24 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 24V 10A 240W 9-PIN CARTON
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Current - Output (Max) [Max] | Approval Agency | Standard Number | Input Type | Voltage - Output 1 | Power (Watts) | Voltage - Isolation | Features | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Efficiency | Number of Outputs | AC Voltage - Input [Max] | AC Voltage - Input [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

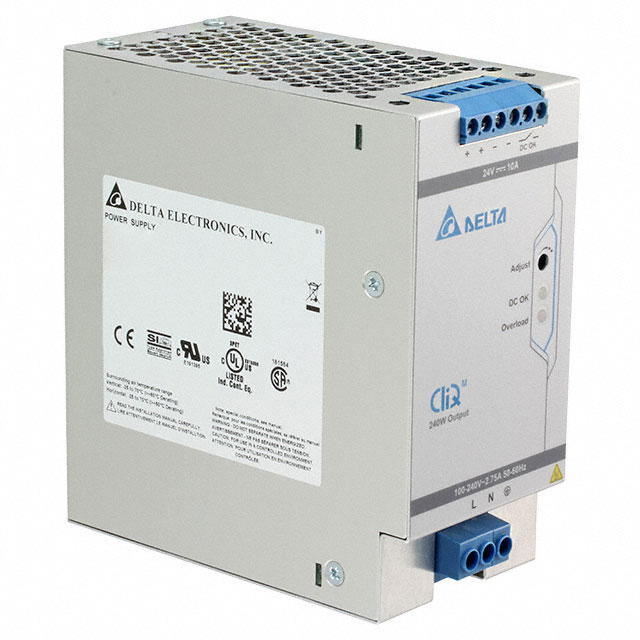

 Delta Electronics | 117 mm | 60 mm | 2.36 " | 4.61 " | 124 mm | 4.88 in | 10 A | CB cCSAus CE cURus | 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-6-2 61000-6-3 61010-1 61204-3 61558-1 61558-2-16 62368-1 | AC | 24 V | 240 Watts | 4.54 kV | Adjustable Output IP20 Load Sharing PFC Universal Input | 70 °C | -25 °C | ITE (Commercial) | 94.8 % | 1 | 276 VAC | 85 VAC |

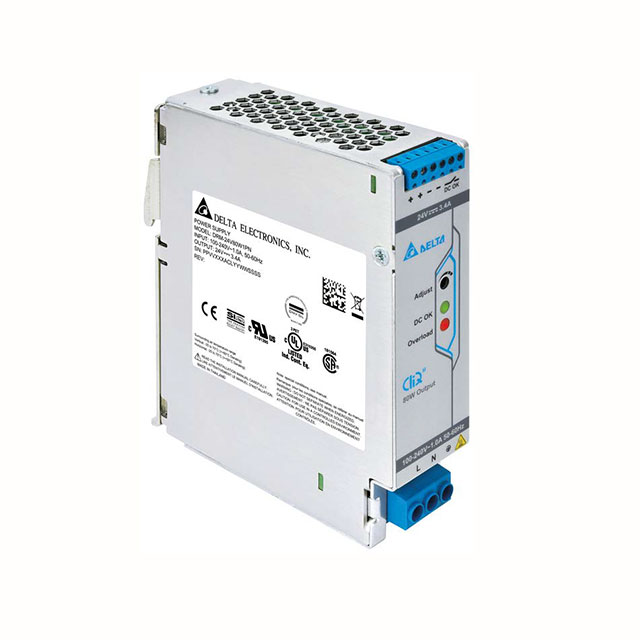

 Delta Electronics | 102 mm | 32 mm | 1.26 in | 4.02 in | 124 mm | 4.88 in | 3.4 A | CB cCSAus CE cURus | 107.1-01; 508; 50581; 55011; 55024; 55032; 60950-1; 61000-3-2; 61000-6-2; 61000-6-3; 61010-1; 61204-3; 61558-1; 61558-2-16 | AC | 24 V | 80 W | 4.54 kV | Adjustable Output IP20 Load Sharing PFC Universal Input | 70 °C | -25 °C | ITE (Commercial) | 91.3 % | 1 | 276 VAC | 85 VAC |
 Delta Electronics | 133.6 mm | 125 mm | 4.92 in | 5.26 in | 124 mm | 4.88 in | 40 A | CB CE CSA cULus cURus EAC SIQ | 50581 508 55011 55024 55032 60950-1 61000-3-2 61000-3-3 61000-6-2 61000-6-3 61010-1 61204-3 61558-1 61558-2-16 | AC | 24 V | 960 W | 4.54 kV | Adjustable Output IP20 Load Sharing PFC Universal Input | 70 °C | -25 °C | Industrial ITE (Commercial) | 95.98 % | 1 | 264 VAC | 85 VAC |
