1SNK Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
PLUG; ENTRELEC; DARK GREY
...
| Part | For Use With/Related Products | Color | Number of Positions | Type | Legend | Pitch | Pitch | Material Flammability Rating | Stripping Length | Material - Insulation | Disconnect Type | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Terminal - Width [y] | Number of Levels | Current - IEC | Voltage - IEC | Current - UL | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Voltage - UL | Termination Style | Legend | Legend [Min] | Legend [Max] | Housing Material | Insulation Height [z] | Insulation Height [z] | Ingress Protection | Wire Strip Length | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Plug Wire Entry | Mounting Type | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

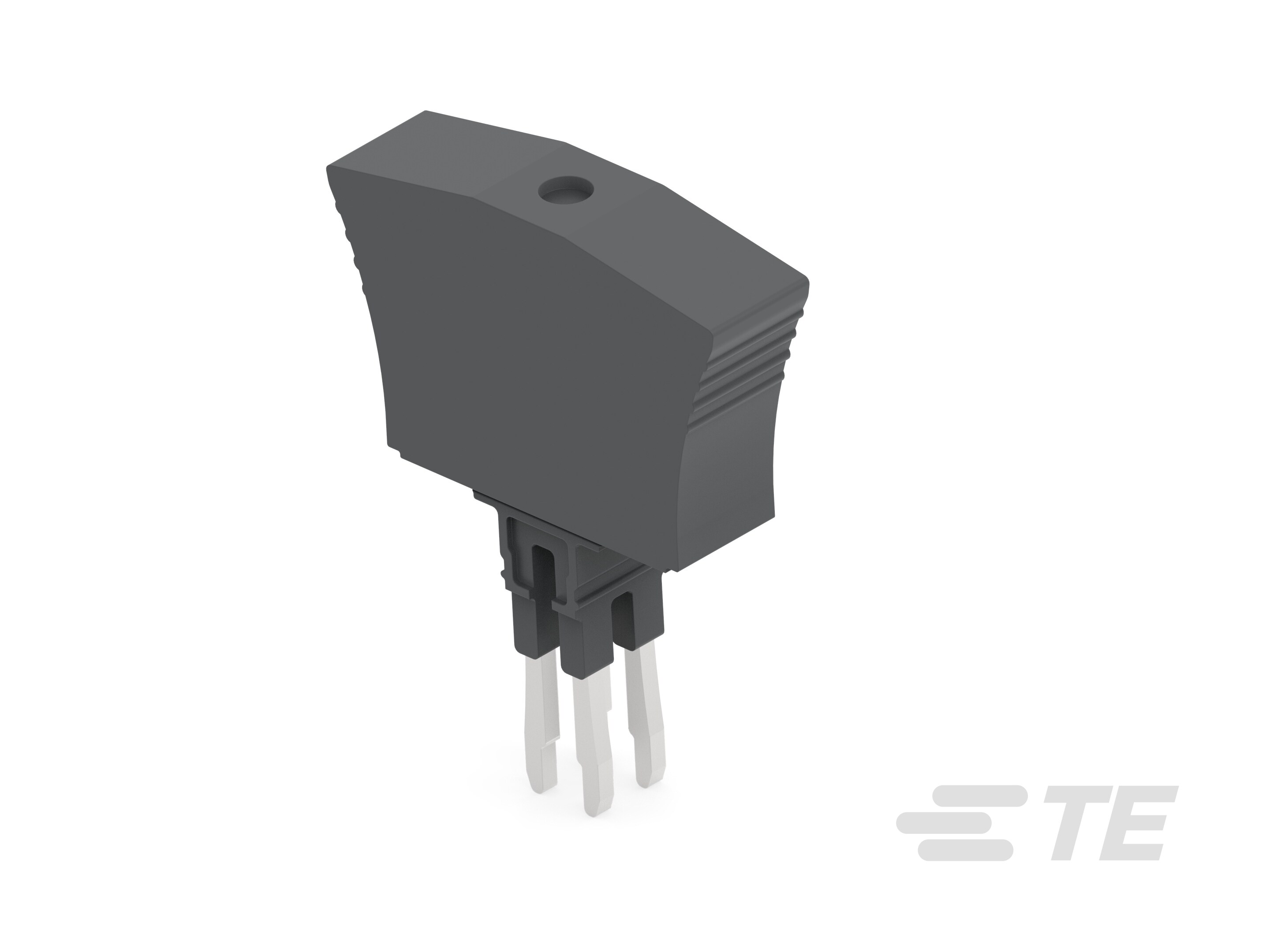

 TE Connectivity AMP Connectors | SNK ZDP ZK ZP ZS Series | Gray | 1 | Component Plug | |||||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | SNK Series | White | Label Snap In | Letters A | 6 mm | 0.236 in | |||||||||||||||||||||||||||||||

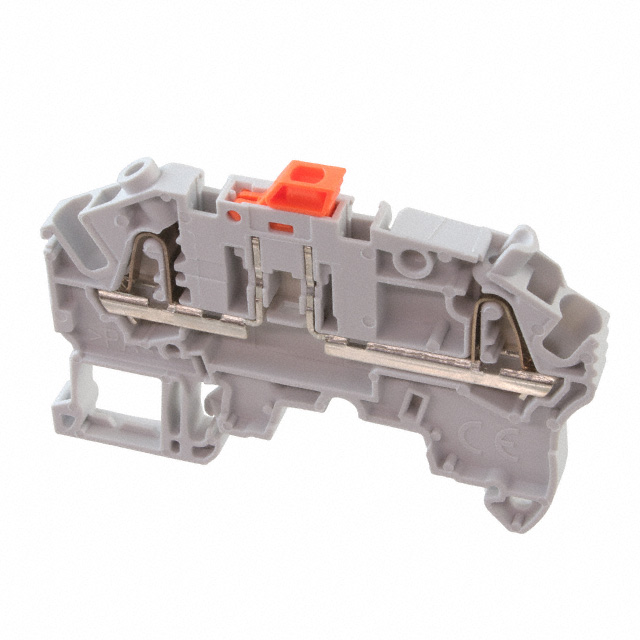

 TE Connectivity AMP Connectors | Gray | 2 | Disconnect | UL94 V-0 | 11 mm | Nylon Polyamide (PA) | Open | 12 AWG | 26 AWG | 5.2 mm | 1 | 17 A | 630 V | 18 A | 4 mm² | 0.2 mm² | 300 V | Push In Spring | |||||||||||||||||||

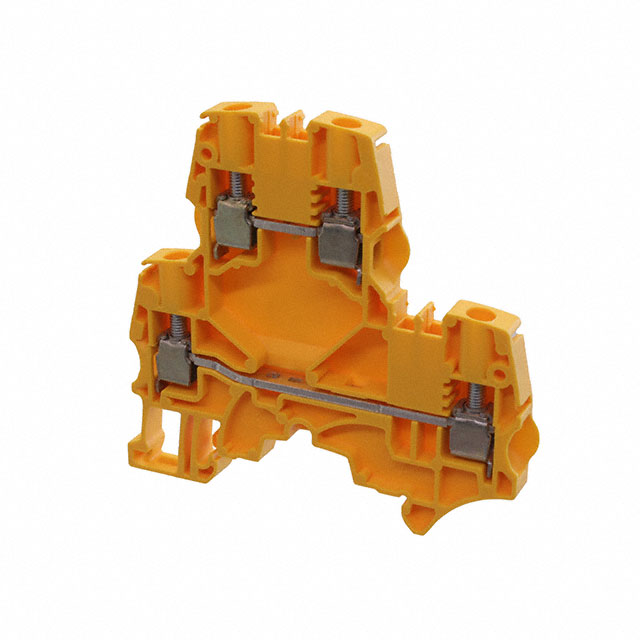

 TE Connectivity AMP Connectors | Yellow | 4 | Feed Through | UL94 V-0 | 10 mm | Nylon Polyamide (PA) | 10 AWG | 24 AWG | 6 mm | 2 | 40 A | 800 V | 30 A | 6 mm² | 0.2 mm² | 300 V | Screw | ||||||||||||||||||||

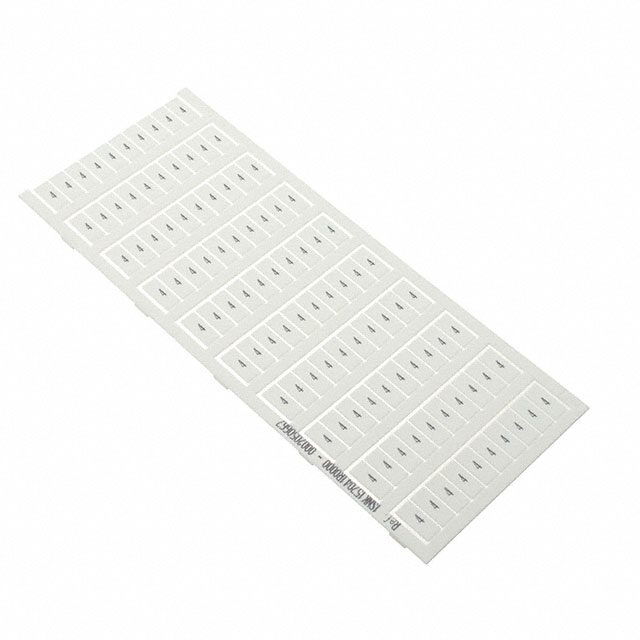

 TE Connectivity AMP Connectors | SNK Series | White | Label Snap In | 6 mm | 0.236 in | 4 | |||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | SNK Series | White | Label Snap In | L | 6 mm | 0.236 in | |||||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | SNK Series | White | Label Snap In | 8 mm | 0.315 in | 111 | 120 | ||||||||||||||||||||||||||||||
TE Connectivity AMP Connectors | SNK Series | White | Label Snap In | Letters S | 8 mm | 0.315 in | |||||||||||||||||||||||||||||||

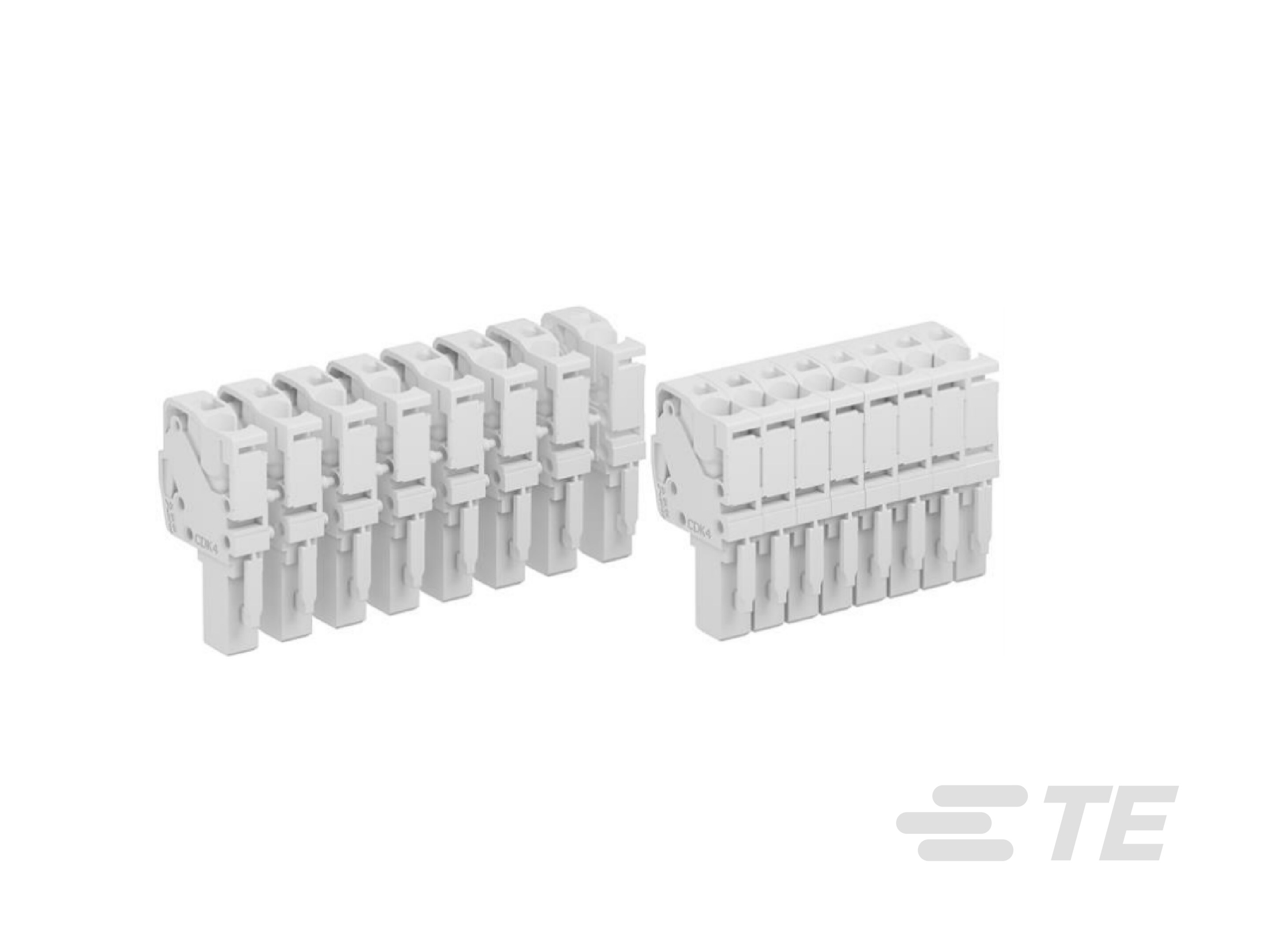

 TE Connectivity AMP Connectors | Gray | 11 | Plug Female Sockets | 10 AWG | 26 AWG | 1 | 30 A | 1 kV | 30 A | 6 mm² | 0.5 mm² | Screwless - Spring Cage Tension Clamp | Polyamide (PA) Nylon | 1.43 in | 36.32 mm | IP20 | 12.5 mm | 6 mm˛ | 0.5 mm˛ | 180 ° | Free Hanging (In-Line) | 11 | -55 C | 110 °C | |||||||||||||

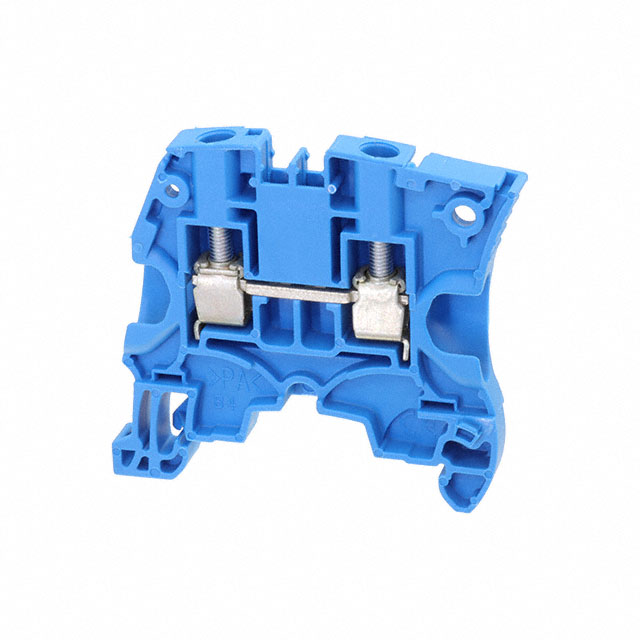

 TE Connectivity AMP Connectors | Blue | 2 | Feed Through | UL94 V-0 | 10.5 mm | Nylon Polyamide (PA) | 10 AWG | 24 AWG | 6 mm | 1 | 41 A | 1 kV | 30 A | 6 mm² | 0.2 mm² | 600 V | Screw |
