106284 Series

Manufacturer: Molex

Catalog

MOLEX CXP 24F MM50 OM3 ASSY,OFNP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Features	Bend Radius [radius]	2nd Connector	Ratings	1st Connector	Cable Diameter [diameter]	Cable Diameter [diameter]	Fiber Type	Length - Overall [x]	Length - Overall [x]	Type	Color - Connectors	Color - Cable	Cable Type	Length - Overall	Bend Radius	Length - Overall
Molex 1062841035
Molex 1062841001	70 °C	0 °C	Plenum	20 mm	MTP Type A	OFNP	MTP Type A	3.8 mm	0.15 in	50/125	1 m	3.3 ft	Multimode OM3	Aqua

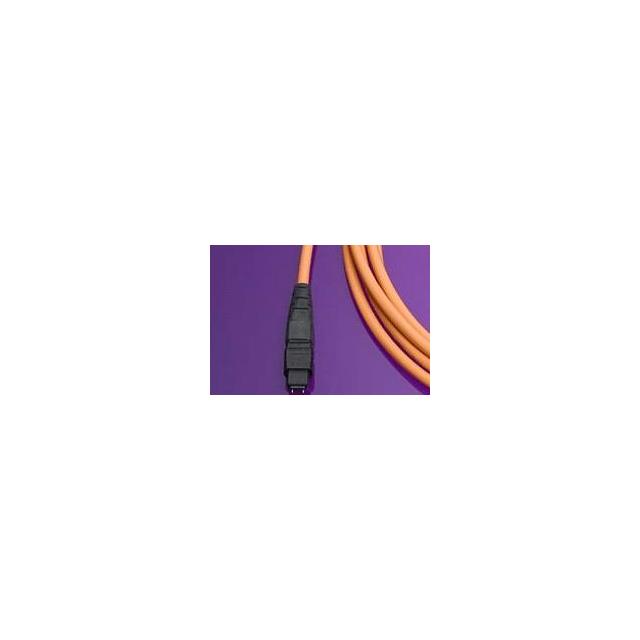

Molex 1062840005
Molex 1062840020	70 °C	0 °C	Plenum	20 mm	MTP Type A	OFNP	MTP Type A	3.8 mm	0.15 in	50/125	20 m	65.6 ft	Multimode OM2	Black	Orange
Molex 1062840010	70 °C	0 °C	Plenum	20 mm	MTP Type A	OFNP	MTP Type A	3.8 mm	0.15 in	50/125	10 m	32.8 ft	Multimode OM2	Black	Orange
Molex 1062841030	70 °C	-20 C			MTP		MTP	5.4 mm	0.21 in	50/125		98.4 ft	Multimode			Fiber Patch	30 m	48 mm
Molex 1062847000	70 °C	0 °C		20 mm	MTP	OFNP	MTP							Aqua
Molex 1062841003	70 °C	0 °C	Plenum	20 mm	MTP Type A	OFNP	MTP Type A	3.8 mm	0.15 in	50/125	3 m	9.8 ft	Multimode OM3	Aqua
Molex 1062841005	70 °C	0 °C	Plenum	20 mm	MTP Type A	OFNP	MTP Type A	3.8 mm	0.15 in	50/125			Multimode OM3	Aqua			5 m		16.4 ft
Molex 1062840001	70 °C	0 °C	Plenum	20 mm	MTP Type A	OFNP	MTP Type A	3.8 mm	0.15 in	50/125	1 m	3.3 ft	Multimode OM2	Black	Orange
