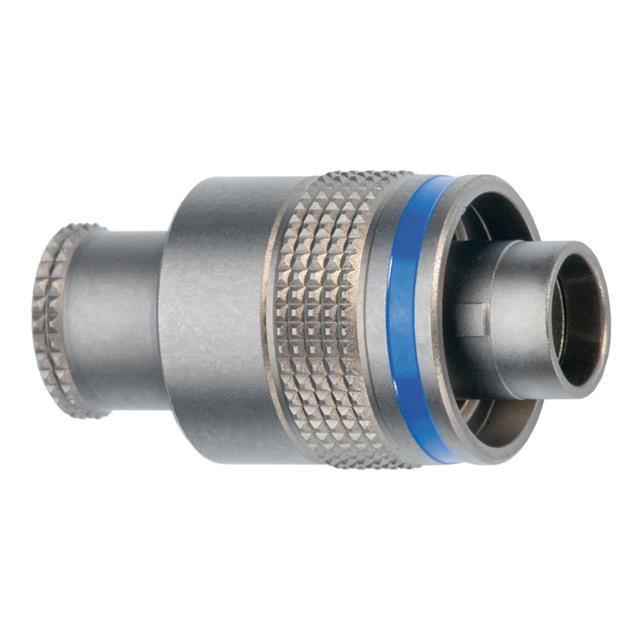

FMN.2M Series
Manufacturer: LEMO
Beta
⌘K
CONN PLUG MALE 10POS GOLD CRIMP
| Part | Contact Material | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Applications | Insert Material | Contact Finish - Mating | Shell Finish | Shielding | Current Rating (Amps) | Cable Opening | Cable Opening | Orientation | Ingress Protection | Number of Positions | Termination | Color | Connector Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Shell Material | Shell Size - Insert | Primary Material | Fastening Type | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

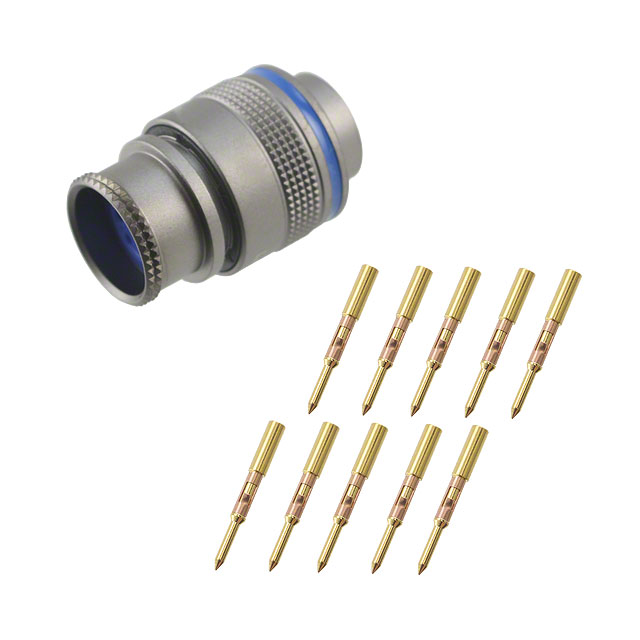

 LEMO | Brass | 39.4 µin | 1 µm | Aerospace Automotive Aviation Military | Polyetheretherketone (PEEK) | Gold | Nickel | Shielded | 8 A | 13 mm | 0.512 in | N (Normal) | IP68 - Dust Tight Waterproof | 10 | Crimp | Gray | Plug Male Pins | Free Hanging (In-Line) | 200 °C | -55 C | Coupling Nut | Aluminum Alloy | 310 | Metal | Threaded | ||||
LEMO | Brass | Polyetheretherketone (PEEK) | Gold | Nickel | Shielded | 4 A | N (Normal) | IP68 - Dust Tight Waterproof | 19 | Crimp | Silver | Plug Male Pins | Free Hanging (In-Line) | 200 °C | -20 ░C | Coupling Nut | Aluminum | 319 | Metal | Threaded | 0.256 in | 13 mm | 6.5 mm | 0.512 in | |||||

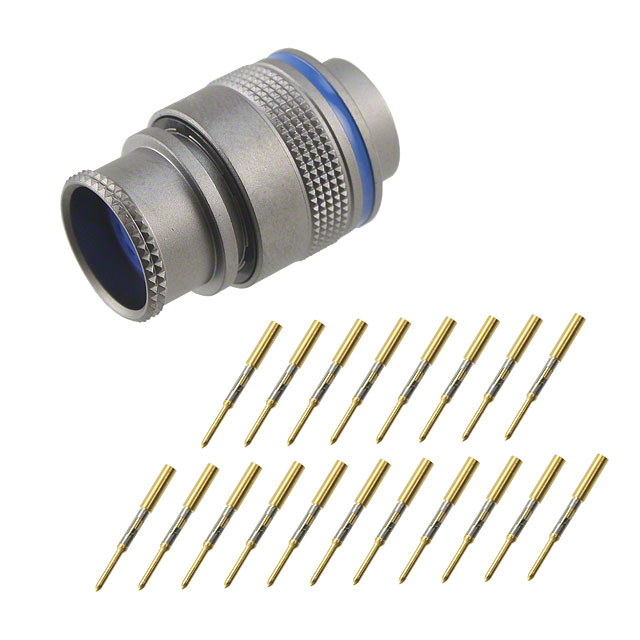

 LEMO | Brass | 39.4 µin | 1 µm | Aerospace Automotive Aviation Military | Polyetheretherketone (PEEK) | Gold | Nickel | Shielded | 4 A | 13 mm | 0.512 in | N (Normal) | IP68 - Dust Tight Waterproof | 19 | Crimp | Gray | Plug Male Pins | Free Hanging (In-Line) | 200 °C | -55 C | Coupling Nut | Aluminum Alloy | 319 | Metal | Threaded | ||||
 LEMO | Brass | 39.4 µin | 1 µm | Aerospace Automotive Aviation Military | Polyetheretherketone (PEEK) | Gold | Nickel | Shielded | 7 A | 13 mm | 0.512 in | N (Normal) | IP68 - Dust Tight Waterproof | 12 | Crimp | Gray | Plug Male Pins | Free Hanging (In-Line) | 200 °C | -55 C | Coupling Nut | Aluminum Alloy | 312 | Metal | Threaded | ||||

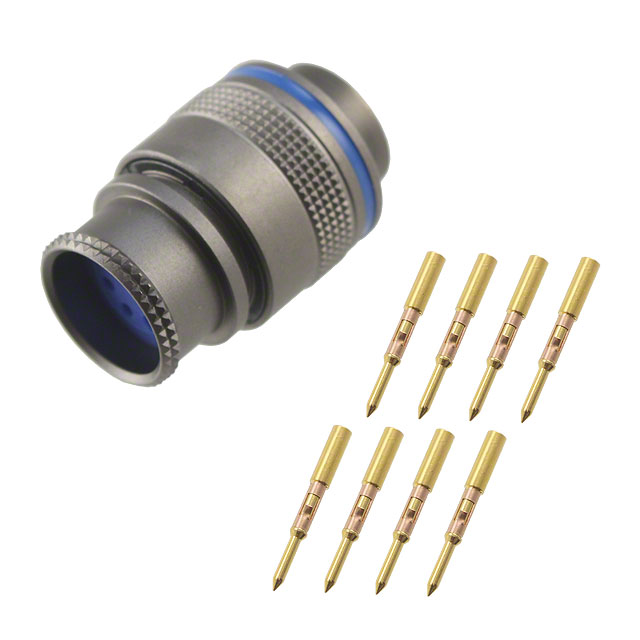

 LEMO | Brass | 39.4 µin | 1 µm | Aerospace Automotive Aviation Military | Polyetheretherketone (PEEK) | Gold | Nickel | Shielded | 10 A | 13 mm | 0.512 in | N (Normal) | IP68 - Dust Tight Waterproof | 8 | Crimp | Gray | Plug Male Pins | Free Hanging (In-Line) | 200 °C | -55 C | Coupling Nut | Aluminum Alloy | 308 | Metal | Threaded | ||||
 LEMO | Aerospace Automotive Aviation Military | Polyetheretherketone (PEEK) | Gold | Nickel | Shielded | N (Normal) | IP68 - Dust Tight Waterproof | 14 | Crimp | Gray | Plug Male Pins | Free Hanging (In-Line) | 200 °C | -20 ░C | Coupling Nut | Aluminum | 514 | Metal | Threaded |
