325-039 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 39POS 0.100

Part	Material - Insulation	Termination Rows	Gender	Card Thickness	Card Thickness	Number of Positions/Bay/Row	Contact Finish	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Pitch	Pitch	Number of Positions	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Read Out	Color	Card Type	Contact Type	Contact Material	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]

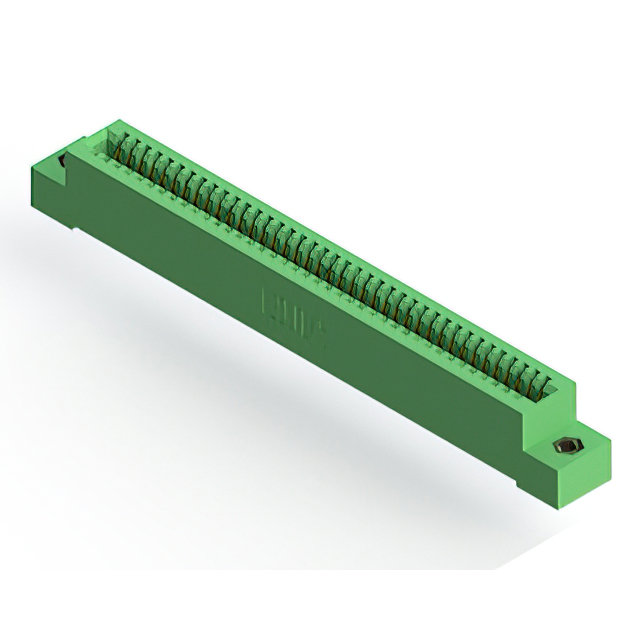

EDAC Inc. 325-039-500-107	Diallyl Phthalate (DAP)	1	Female	3.18 mm	0.125 in	39	Gold	Solder Eyelet(s)	-65 ░C	125 °C	1	0.1 "	2.54 mm	39	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Single	Green	Non Specified - Single Edge	Cantilever	Copper Alloy	Through Hole
EDAC Inc. 325-039-540-107	Diallyl Phthalate (DAP)	1	Female	3.18 mm	0.125 in	39	Gold	Wire Wrap	-65 ░C	125 °C	1	0.1 "	2.54 mm	39	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Single	Green	Non Specified - Single Edge	Cantilever	Copper Alloy	Through Hole

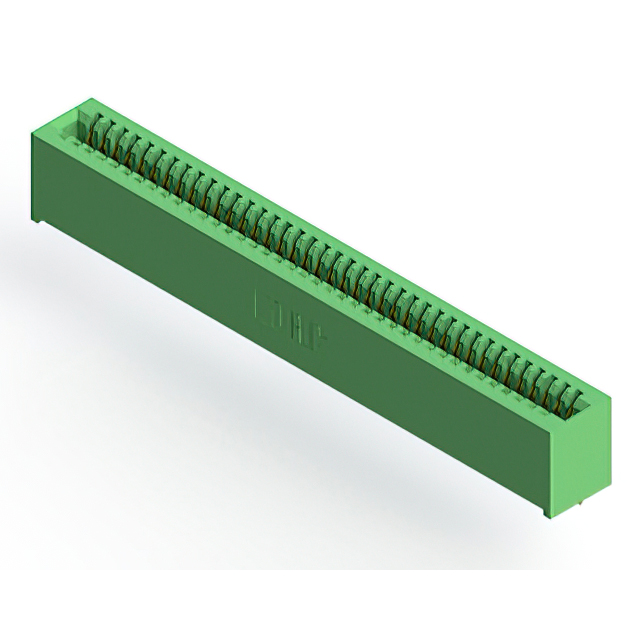

EDAC Inc. 325-039-520-101	Diallyl Phthalate (DAP)	1	Female	3.18 mm	0.125 in	39	Gold	Solder	-65 ░C	125 °C	1	0.1 "	2.54 mm	39		0.25 Ám	10 Áin	Single	Green	Non Specified - Single Edge	Cantilever	Copper Alloy	Through Hole
EDAC Inc. 325-039-500-109	Diallyl Phthalate (DAP)	1	Female	3.18 mm	0.125 in	39	Gold	Solder Eyelet(s)	-65 ░C	125 °C	1	0.1 "	2.54 mm	39	Flush Mount Top Opening Unthreaded	0.25 Ám	10 Áin	Single	Green	Non Specified - Single Edge	Cantilever	Copper Alloy	Through Hole	0.16 "	4.06 mm
EDAC Inc. 325-039-520-107	Diallyl Phthalate (DAP)	1	Female	3.18 mm	0.125 in	39	Gold	Solder	-65 ░C	125 °C	1	0.1 "	2.54 mm	39	Flush Mount M3 Threaded Insert Top Opening	0.25 Ám	10 Áin	Single	Green	Non Specified - Single Edge	Cantilever	Copper Alloy	Through Hole
EDAC Inc. 325-039-500-101	Diallyl Phthalate (DAP)	1	Female	3.18 mm	0.125 in	39	Gold	Solder Eyelet(s)	-65 ░C	125 °C	1	0.1 "	2.54 mm	39		0.25 Ám	10 Áin	Single	Green	Non Specified - Single Edge	Cantilever	Copper Alloy	Through Hole
