87203 Series

Catalog

CONN HEADER VERT 64POS 2.54MM

Part	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Pitch - Mating	Pitch - Mating	Fastening Type	Material Flammability Rating	Number of Positions	Termination	Contact Finish - Mating	Overall Contact Length	Overall Contact Length	Insulation Color	Connector Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Number of Rows	Contact Material	Insulation Height	Insulation Height	Contact Shape	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Positions

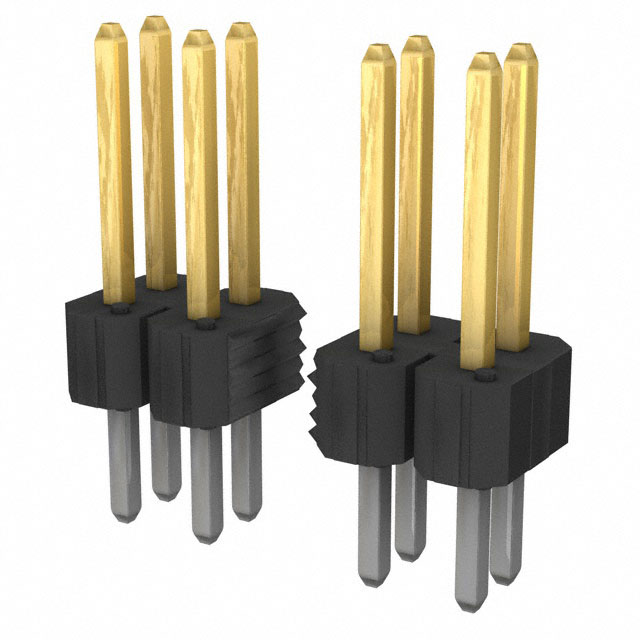

Amphenol ICC (FCI) 87203-164HLF	All	30 Áin	0.76 Ám	Unshrouded	0.1 in	2.54 mm	Push-Pull	UL94 V-0	64	Solder	Gold or Gold GXT™	0.545 in	13.84 mm	Black	Header	2.54 mm	0.1 in	0.15 in	3.81 mm	Male Pin	2	Phosphor Bronze	0.1 in	2.54 mm	Square	Through Hole	7.49 mm	0.295 in

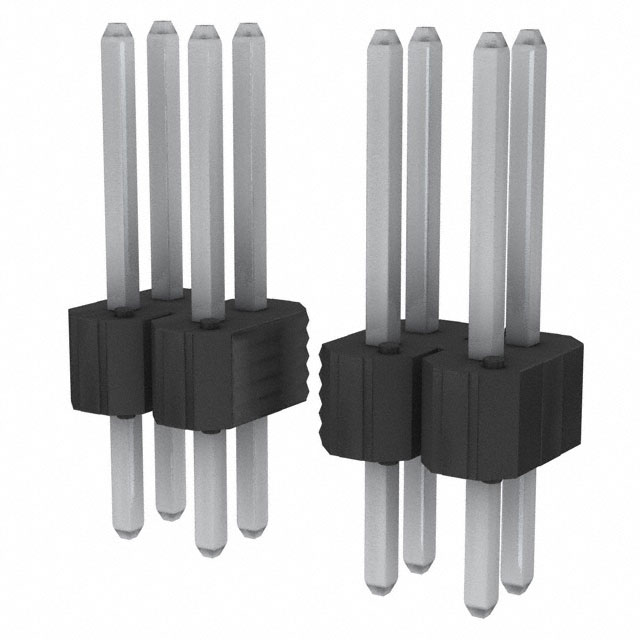

Amphenol ICC (FCI) 87203-428HLF	All	100 çin	2.54 çm	Unshrouded	0.1 in	2.54 mm	Push-Pull	UL94 V-0	28	Solder		0.545 in	13.84 mm	Black	Header	2.54 mm	0.1 in	0.15 in	3.81 mm	Male Pin	2	Phosphor Bronze	0.1 in	2.54 mm	Square	Through Hole	7.49 mm	0.295 in	Tin
Amphenol ICC (FCI) 87203-120HLF	All	30 Áin	0.76 Ám	Unshrouded	0.1 in	2.54 mm	Push-Pull	UL94 V-0	20	Solder	Gold or Gold GXT™	0.545 in	13.84 mm	Black	Header	2.54 mm	0.1 in	0.15 in	3.81 mm	Male Pin	2	Phosphor Bronze	0.1 in	2.54 mm	Square	Through Hole	7.49 mm	0.295 in
Amphenol ICC (FCI) 87203-118HLF	All	30 Áin	0.76 Ám	Unshrouded	0.1 in	2.54 mm	Push-Pull	UL94 V-0	18	Solder	Gold or Gold GXT™	0.545 in	13.84 mm	Black	Header	2.54 mm	0.1 in	0.15 in	3.81 mm	Male Pin	2	Phosphor Bronze	0.1 in	2.54 mm	Square	Through Hole	7.49 mm	0.295 in
Amphenol ICC (FCI) 87203-116HLF	All	30 Áin	0.76 Ám	Unshrouded	0.1 in	2.54 mm	Push-Pull	UL94 V-0		Solder	Gold or Gold GXT™	0.545 in	13.84 mm	Black	Header	2.54 mm	0.1 in	0.15 in	3.81 mm	Male Pin	2	Phosphor Bronze	0.1 in	2.54 mm	Square	Through Hole	7.49 mm	0.295 in		16
Amphenol ICC (FCI) 87203-572	All	15 µin	0.38 µm	Unshrouded	0.1 in	2.54 mm	Push-Pull	UL94 V-0	72	Solder	Gold or Gold GXT™	0.545 in	13.84 mm	Black	Header	2.54 mm	0.1 in	0.15 in	3.81 mm	Male Pin	2	Phosphor Bronze	0.1 in	2.54 mm	Square	Through Hole	7.49 mm	0.295 in
Amphenol ICC (FCI) 87203-128HLF	All	30 Áin	0.76 Ám	Unshrouded	0.1 in	2.54 mm	Push-Pull	UL94 V-0	28	Solder	Gold or Gold GXT™	0.545 in	13.84 mm	Black	Header	2.54 mm	0.1 in	0.15 in	3.81 mm	Male Pin	2	Phosphor Bronze	0.1 in	2.54 mm	Square	Through Hole	7.49 mm	0.295 in
Amphenol ICC (FCI) 87203-112HLF	All	30 Áin	0.76 Ám	Unshrouded	0.1 in	2.54 mm	Push-Pull	UL94 V-0	12	Solder	Gold or Gold GXT™	0.545 in	13.84 mm	Black	Header	2.54 mm	0.1 in	0.15 in	3.81 mm	Male Pin	2	Phosphor Bronze	0.1 in	2.54 mm	Square	Through Hole	7.49 mm	0.295 in
Amphenol ICC (FCI) 87203-150HLF	All	30 Áin	0.76 Ám	Unshrouded	0.1 in	2.54 mm	Push-Pull	UL94 V-0	50	Solder	Gold or Gold GXT™	0.545 in	13.84 mm	Black	Header	2.54 mm	0.1 in	0.15 in	3.81 mm	Male Pin	2	Phosphor Bronze	0.1 in	2.54 mm	Square	Through Hole	7.49 mm	0.295 in
Amphenol ICC (FCI) 87203-472HLF	All	100 çin	2.54 çm	Unshrouded	0.1 in	2.54 mm	Push-Pull	UL94 V-0	72	Solder		0.545 in	13.84 mm	Black	Header	2.54 mm	0.1 in	0.15 in	3.81 mm	Male Pin	2	Phosphor Bronze	0.1 in	2.54 mm	Square	Through Hole	7.49 mm	0.295 in	Tin
