T38011 Series

Catalog

CONN BARRIER STRP 19CIRC 0.375"

Part	Current Rating (Amps)	Features	Operating Temperature	Top Termination	Material - Insulation	Voltage Rating	Mounting Type	Number of Wire Entries	Bottom Termination	Terminal Block Type	Material Flammability Rating	Barrier Type	Wire Gauge [Min]	Wire Gauge [Max]	Number of Circuits	Number of Rows	Pitch [x]	Pitch [x]	Number of Wire Entries [custom]
Curtis Industries T38011-19-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	19	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	19	1	9.53 mm	0.375 in

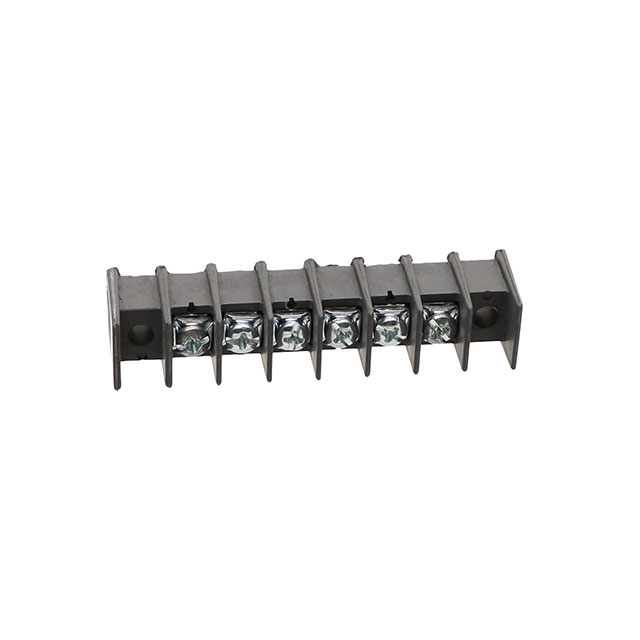

Curtis Industries T38011-06-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	6	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	6	1	9.53 mm	0.375 in
Curtis Industries T38011-05-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	5	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	5	1	9.53 mm	0.375 in
Curtis Industries T38011-01-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole		PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	1	1			1

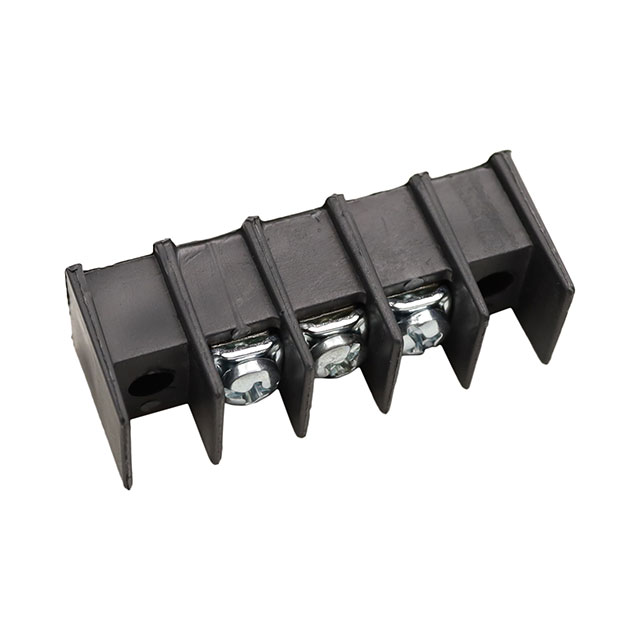

Curtis Industries T38011-03-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	3	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	3	1	9.53 mm	0.375 in
Curtis Industries T38011-18-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	18	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	18	1	9.53 mm	0.375 in
Curtis Industries T38011-07-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	7	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	7	1	9.53 mm	0.375 in

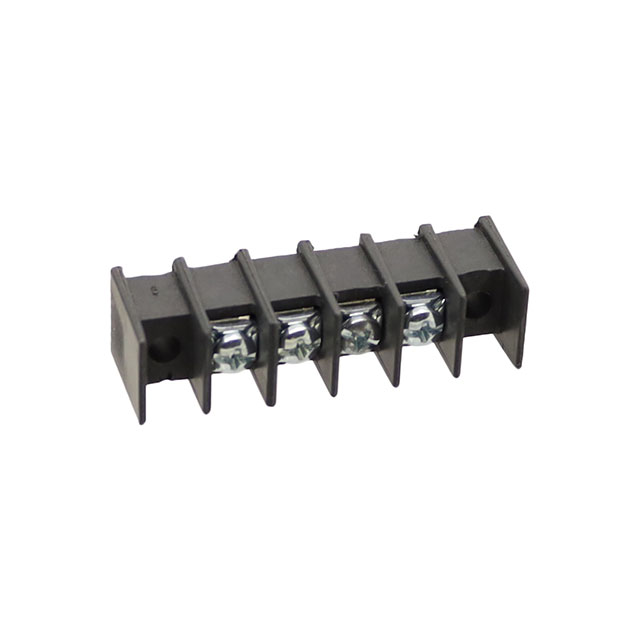

Curtis Industries T38011-04-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	4	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	4	1	9.53 mm	0.375 in
Curtis Industries T38011-10-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	10	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	10	1	9.53 mm	0.375 in
Curtis Industries T38011-25-0	20 A	Flange	105 C	Screws with Captive Plate	Polypropylene (PP)	300 VDC	Chassis Panel Through Hole	25	PC Pin	Barrier Block	UL94 V-0	2 Wall (Dual)	12 AWG	22 AWG	25	1	9.53 mm	0.375 in
