GLEB24 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION DPDT 6A 120V
| Part | Voltage Rating - AC | Actuator Type | Current Rating (Amps) | Voltage Rating - DC | Mechanical Life | Operating Position | Operating Position | Pretravel | Pretravel | Circuit | Operating Force | Switch Function | Mounting Type | Overtravel | Overtravel | Differential Travel | Differential Travel | Termination Style | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

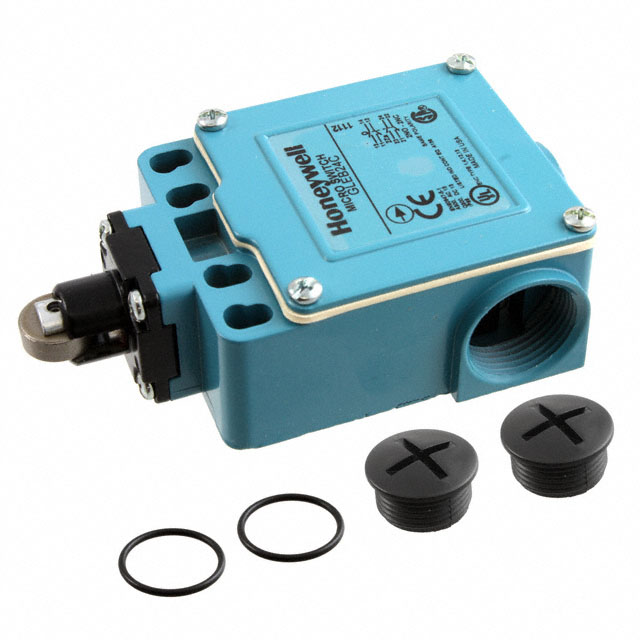

 Honeywell Sensing and Productivity Solutions | 120 V | Roller Plunger | 6 A 550 mA | 125 VDC | 15000000 Cycles | 1.1 in | 28 mm | 0.12 in | 3 mm | DPDT | 1315 gf | On-Mom | Chassis Mount | 3 mm | 0.118 in | 0.6 mm | 0.025 in | Screw Terminal | IP67 - Dust Tight Waterproof | 85 °C | -40 °C | |

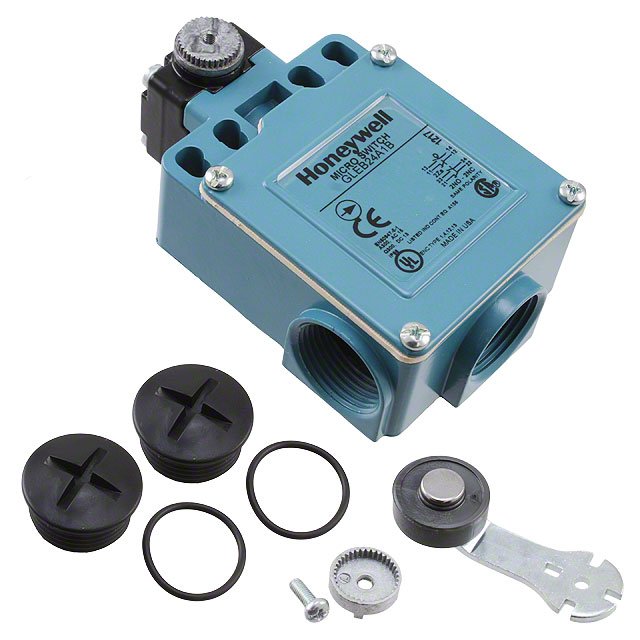

 Honeywell Sensing and Productivity Solutions | 120 V | Roller Side Rotary | 6 A 550 mA | 125 VDC | 10000000 Cycles | 26 ° | 26 ° | DPDT | 17 gfm | On-Mom | Chassis Mount | 49 ° | Screw Terminal | IP67 - Dust Tight Waterproof | 85 °C | -40 °C | Steel Roller | |||||

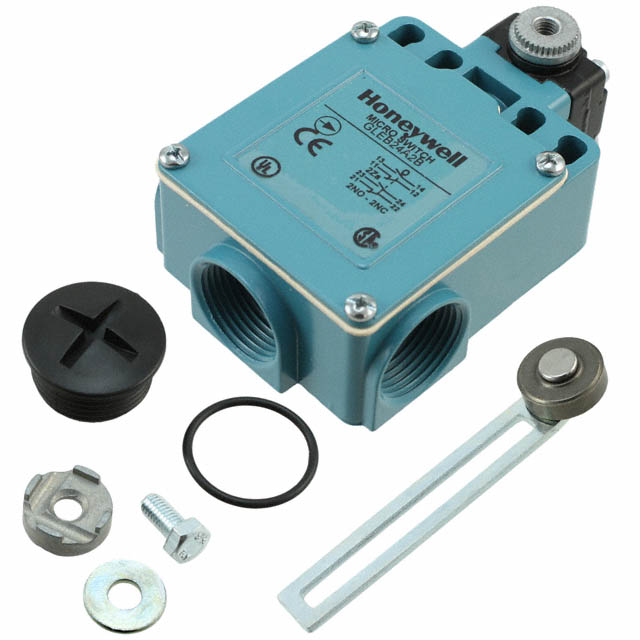

 Honeywell Sensing and Productivity Solutions | 120 V | Side Rotary Adjustable Roller | 6 A 550 mA | 125 VDC | 10000000 Cycles | 26 ° | 26 ° | DPDT | 17 gfm | On-Mom | Chassis Mount | 49 ° | Screw Terminal | IP67 - Dust Tight Waterproof | 85 °C | -40 °C | Steel Roller |
